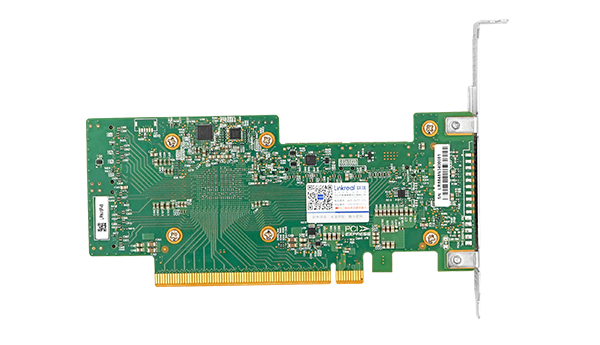

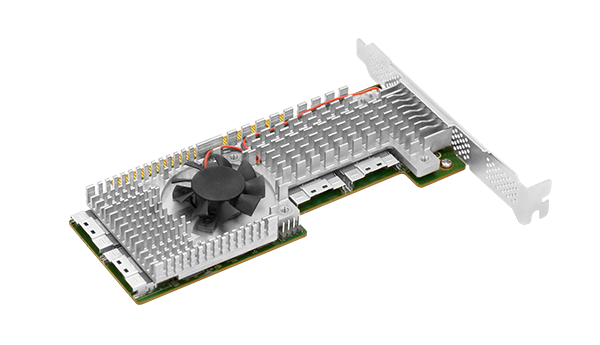

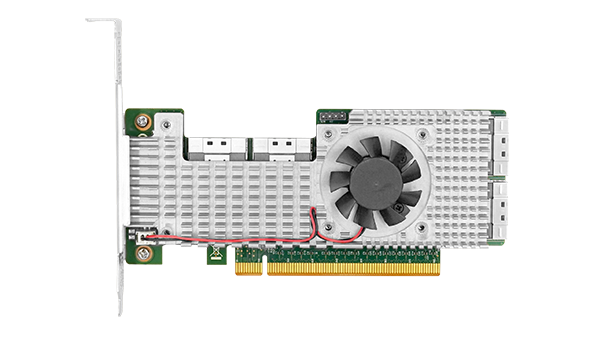

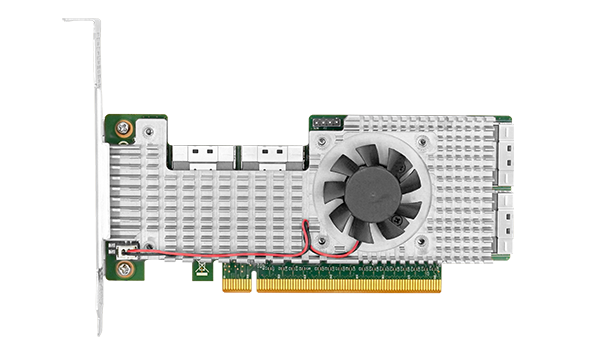

LRNV9F48 is a PCIe 4.0 x16 to 4-port built-in 8654 8I NVMe switch adapter developed by Linkreal Co., Ltd based on the Broadcom PEX88048. LRNV9F48 has four 8654 8I built-in interfaces, which can be connected to SSD hard disks and high-speed graphics cards according to different usage scenarios, and supports up to 8 x4, 16 x2, 32 x1 solid state hard disk connections; supports PCIe NVMe interface, and provides multi-host PCIe conversion function. This design, combined with large packet memory, flexible common buffer/FC credit pool, and non-blocking internal switch architecture, provides full line-speed on all ports for performance-hungry applications such as servers and switch fabrics; at full load under this condition, the data transfer rate per port can reach up to 6.9GB.
SSD expansion solution Ⅰ
SSD expansion test solution Ⅱ
Successful cases sharing Ⅰ
Successful cases sharing Ⅱ

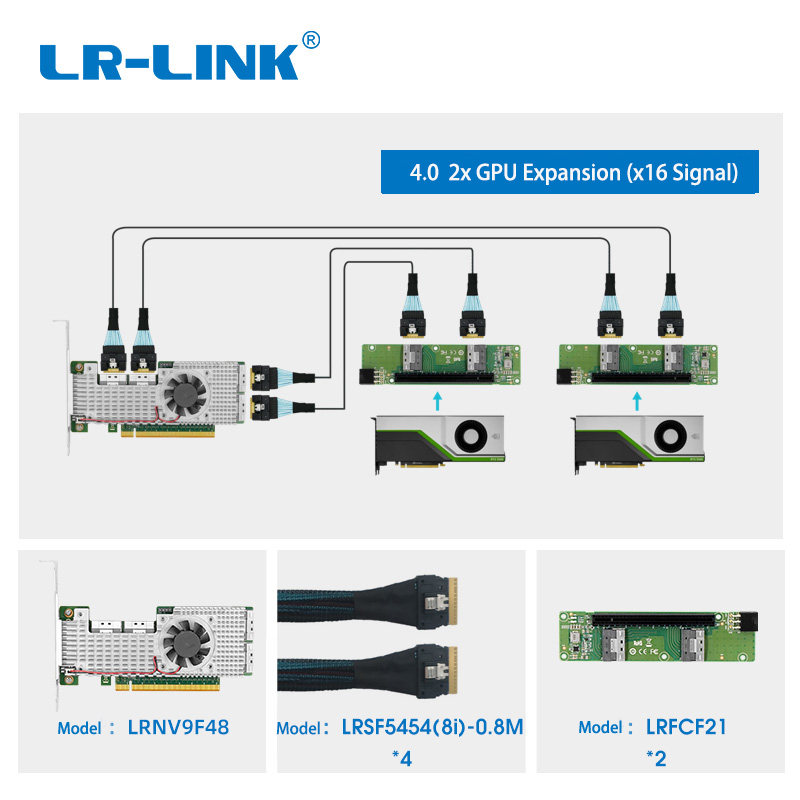

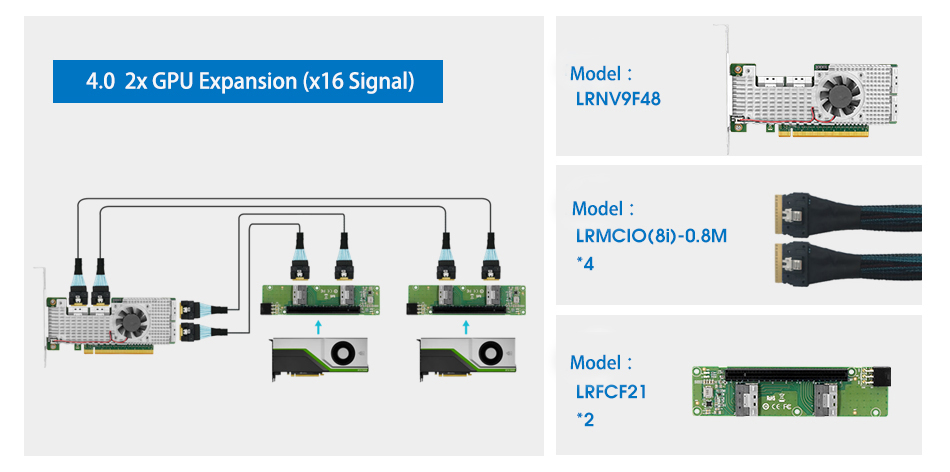

GPU Expansion Solution
Expansion Solution PCIe3.0 to 2P M.2 NVMe Adapter: LRNV9541-2IR
YouTube: https://www.youtube.com/watch?v=wD6ONRUzCjs
|
HARDWARE |
|
|
Model |
LRNV9F48 |
|
Bus Type |
PCI Express 4.0 x16 |
|
I/O Controller |
Broadcom PEX88048 |
|
External Port |
8654 8I |
|
Interface |
4 |
|
Transfer Speed (total) |
32GB/s |
|
CONNECTOR |
|
|
Device Connector |
4 * 8654 8I |
|
Storage Interface |
PCIe (NVMe): x4, x2, x1 |
|
ENVIRONMENTAL |
|
|
Humidity |
15%-90% |
|
Operating Temperature |
0℃ - 55℃ (32℉ - 131℉) |
|
Storage Temperature |
-45℃ - 105℃ (-49℉ - 221℉) |
|
Power(min) |
20.532W |
|
Power(max) |
23.592W |
|
PHYSICAL CHARACTERISTICS |
|
|
PCB size(unit:mm) |
68.6*155.7*1.6 |
|
Product Weight(unit:g) |
* |
|
PACKAGING INFORMATION |
|
|
Package size (unit: mm) |
222*147*28 |
|
WHAT'S IN THE BOX |
|
|
Included in Package |
1 - PCIe x1 NVMe Adapter Card |
|
1 - Low Profile |
|
|
1 - Full Height(installed) |
|
* Product appearance and specifications are subject to change without nonce.
