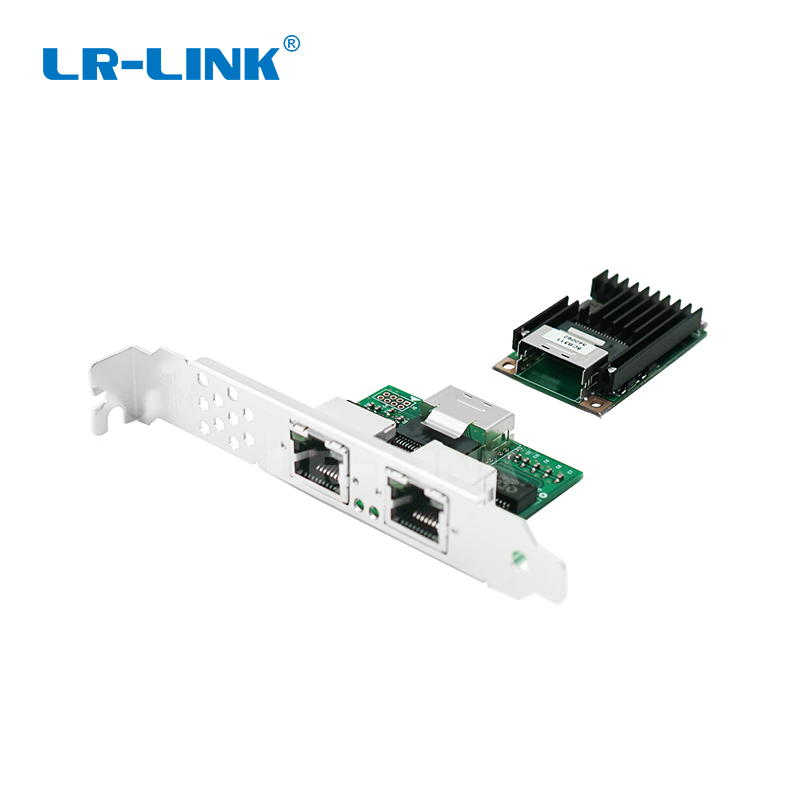

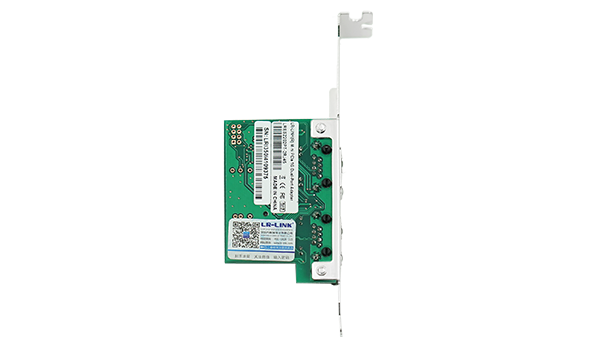

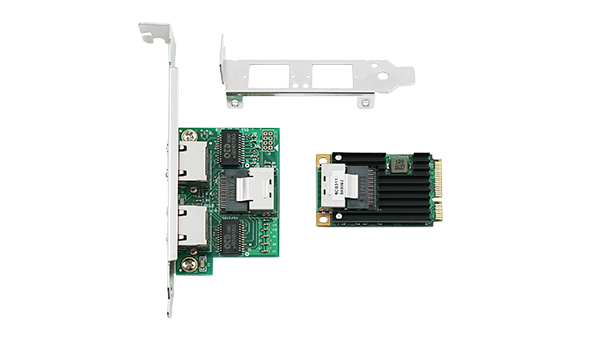

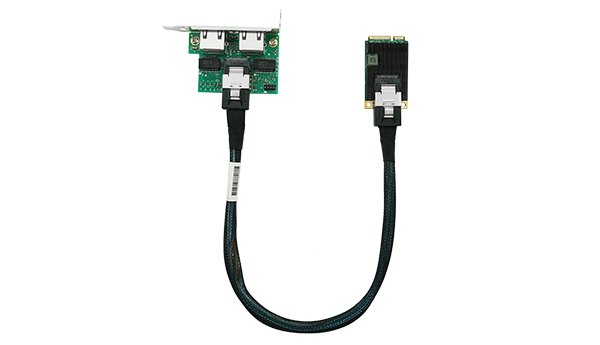

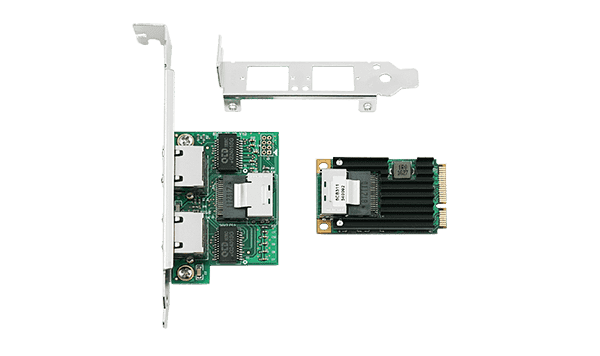

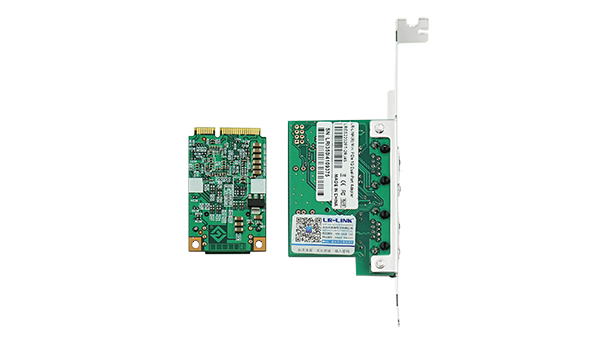

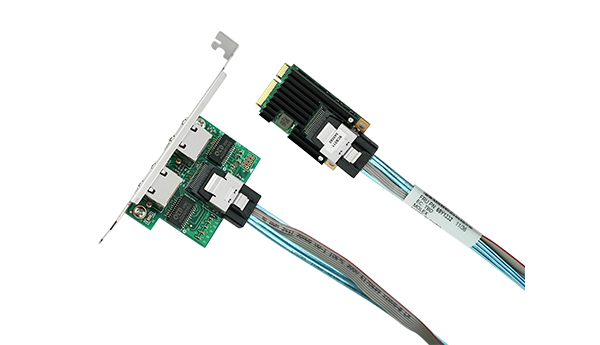

LRES2202PT

Mini PCIe Full Size Dual-port Copper Ethernet Lan Card (Intel I350)
Key Features
The adapter card adopts a wider RJ45 pitch design;
The interface specially designed for industrial cable access, with LR-LINK customized industrial network cable, can lock the cable and network port more firmly, solve the problem of unstable connection between network port and cable in industrial places effectively. It is also compatible with common cable access.

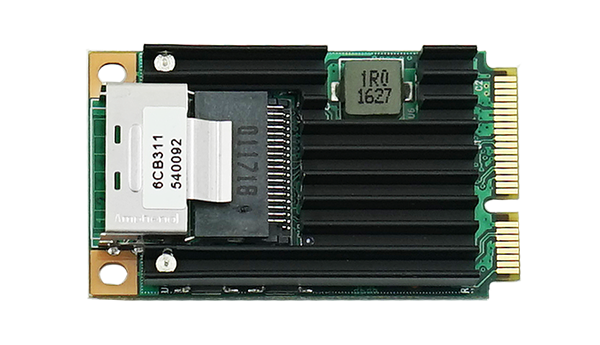

The larger heat sink can effectively solve the heat dissipation problem of the adapter in the case of poor heat dissipation environment, and ensure the stable operation of the adapter card for long time effectively.
Carefully selected thickened gold RJ45 connector to ensure a more secure and reliable connectivity;
2*8-Pin RJ45 connectors are designed to better save the motherboard's valuable PCIe slot resources.

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products
LRES2202PT Shenzhen Lianrui Electronics Co., Ltd. is a Mini PCIe dual-port Gigabit Ethernet network adapter developed on the Intel I350 control.

This adapter card is designed with Mini PCI-e slot for use on industrial equipment including Mini PCIe interface slots such as industrial PCs and single board machines. It can solve the problem of compact space of equipment. The adapter supports 10/100/1000 Mbps link rate that automatically adapts to existing Ethernet networks.
This Ethernet adapter can be widely used in network equipment such as industrial computer, embedded computer, single board computer, digital multimedia, etc. It can realize system support such as Windows and Linux.

Features

Controller

Intel(R) I350

Cable

Copper

Cable Type

Cat 5E/6 or higher: 1000Base-T up to 100m

Cat5/5E/6 or higher: 100Base-Tx up to100m

Category 3/4/5/5E/6 or higher: 10Base-T up to 100m

Bracket

Low Profile and Full-height Bracket

Power(max)

3W

Operating System Support

Windows XP

Windows 7

Windows Vista

Windows 8/8.1

Windows 10

Windows Server 2003

Windows Server 2008

Windows Server 2008 R2

Windows Server 2012

Windows Server 2012 R2

Windows Server 2016

Windows Server 2016 R2 Core

Linux Stable kernel version 2.4.x/2.6.x/3.x/4.x or later

RHEL/CentOS  5.x/6.x/7.x or later

Linux SLES 11 SP3 / SLES 12 or later

FreeBSD 9 / 10 / 11 or later

VMware ESX/ESXi 4.x/5.x/6.x or later

Connector

2*8-Pin RJ45

PCIe Bus

Mini PCI Express

Transmission Rate

10/100/1000Mbps

Technical Parameters

IEEE Standard

IEEE 802.3

IEEE802.3ad

IEEE 802.1p

IEEE 802.1Q VLANs
IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE 802.3u 100Base-TX Fast Ethernet

PXE

Yes

DPDK

Yes

Jumbo Frame

Yes

iSCSI

No

FCoE

No

WOL

No

Environment Features

Operating Temperature

0 ℃ to 55 ℃(32 ℉ to 131 ℉)

Storage Temperature

-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)

Storage Humidity

90% non condensing under 35℃

Certification

FCC B, UL, CE, VCCI, BSMI, CTICK, MIC

LED

LED

1000Mbps:Green + Green Blink

10/100Mbps: Green Blink

Physical Features

PCB size(mm)

63*41.5*1.6mm (M1) + 51*30*1.0 mm (M)

Weight(g)

38

P/N

Description

Noted

LRES2202PT

Mini PCIe Dual-port Copper Gigabit Ethernet Network Adapter

Base on Intel(R) I350,3U/2U  bracket
