LREG1007PT

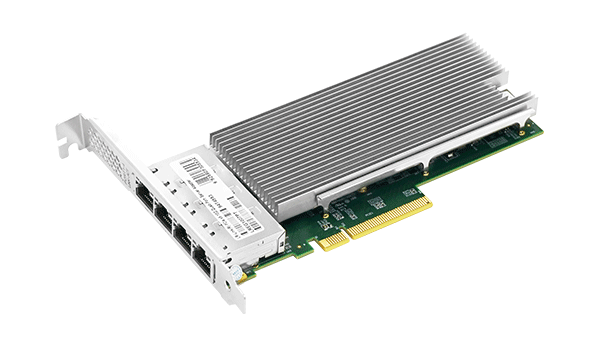

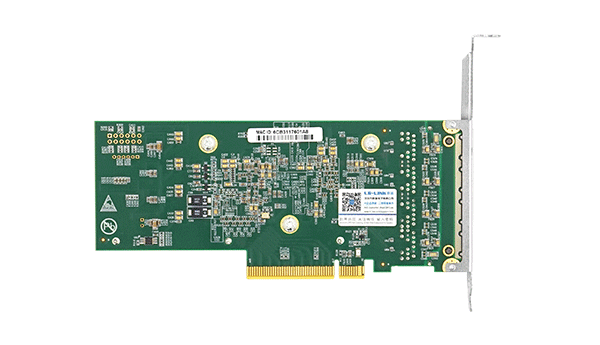

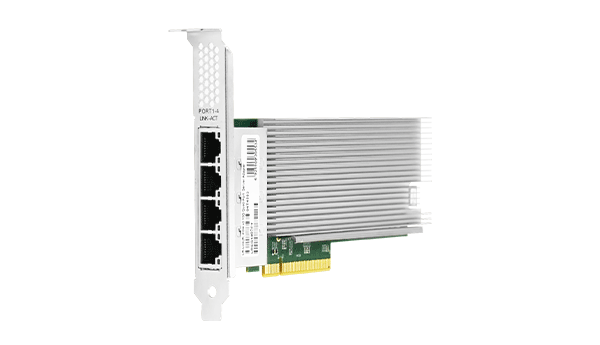

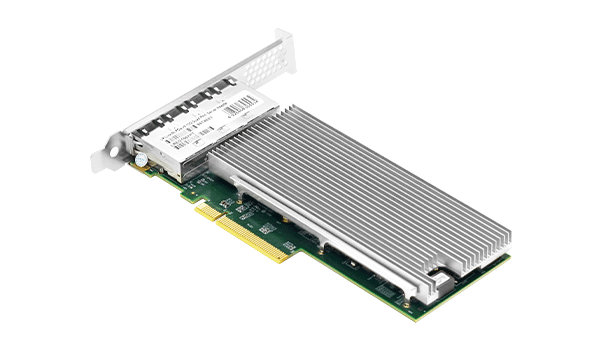

PCIe x8 Quad-port 10Gigabit Copper Ethernet Network Adapter(XILINX)
Key Features
1. This product is mainly designed for scenarios such as cloud computing, network security, and industrial control
2. Its bandwidth capacity is 40Gbps
3. It supports DPDK high-performance data receiving and sending packets
4. It supports forwarding functions based on MAC and VLAN.

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LREG1007PT is a 10G intelligent network adapter based on the chip solution independently developed by Linkreal CO.,Ltd. The product integrates four 10Gigabit Ethernet Medium Access Controller (MAC) and RJ45 port, which not only has the functions of Ethernet MAC and PHY layer, but also can effectively manage network traffic.

The product is mainly designed for cloud computing, network security and industrial control scenarios. It provides kernel mode and user mode drivers to adapt to different operating systems. The product supports hardware virtualization, multi-queue and other offloading functions, which can effectively reduce CPU overhead.

It meets the needs of network traffic, business offloading, accelerated processing, virtualization and big data computing, and is an ideal solution to achieve high-performance network applications.

Controller

Xilinx FPGA

Cable medium

Copper

Cable Type

10GBase-T, Cat 6A up to 100m and Cat6 up to 55m

2.5GBase-T & 5GBase-T, Cat 5e or higher up to 100m

100MBase-T & 1000MBase-T, Cat 5e or higher up to 100m

Bracket Height

Low Profile & Full Height

Power (min)

22W

Power (max)

25W

System Support

Linux, Windows and other mainstream operating systems

Compatible with X86 and ARM CPU ecosystem

Compatible with domestic CPU and operating system

Compatible with major vendor servers

Bus Type

PCIe Gen3.0 x8

Data rate per port

100M/1G/2.5G/5G/10Gbps

Connector

4*10G RJ45

Power Supply

PCIe





Technical Features



Protocol Support

IEEE 802.1P     IEEE 802.1Q          IEEE 802.1AD

IEEE 802.1AX    IEEE 802.3X

PXE

Yes

DPDK

Yes

WoL

No

iSCSI

Yes

Jumbo Frames

Yes

SR-IOV

Yes

VMDq

Yes

UEFI

Yes

FCoE

No

NC-SI

Yes

ESD_Contact discharge

±6KV

Surge Protection

±1KV





Environment Features



Operating Temperature

0  to 55  (32  to131 )

Storage Temperature

-55  to 105  (-67  to 221 )

Storage Humidity

Maximum: 90% non-condensing relative humidity at 35

Certification

FCC, CE, RoHS

Physical Features



PCB Size(mm)

164*120*21

Package Size(mm)

224*147*30

Weight(g)

*



LED Indicators

100M/1G/2.5G/

5G/10Gbps

LINK

Green Link

ACT

Yellow Blink







Order Information



P/N

Description

LREG1007PT

PCIe x8 Quad-port 10Gigabit Copper Ethernet Network Adapter(XILINX)
