LRES1053PT

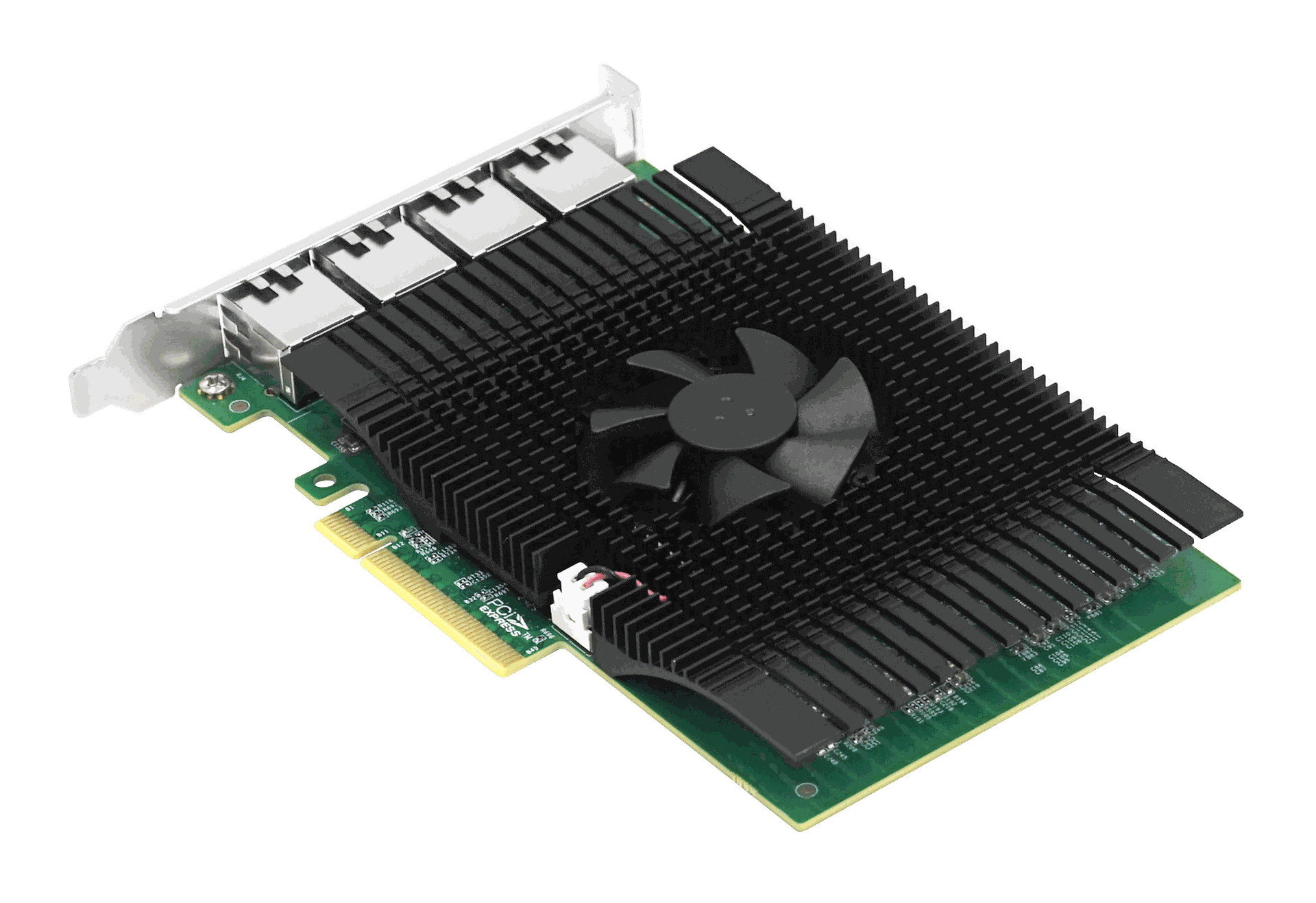

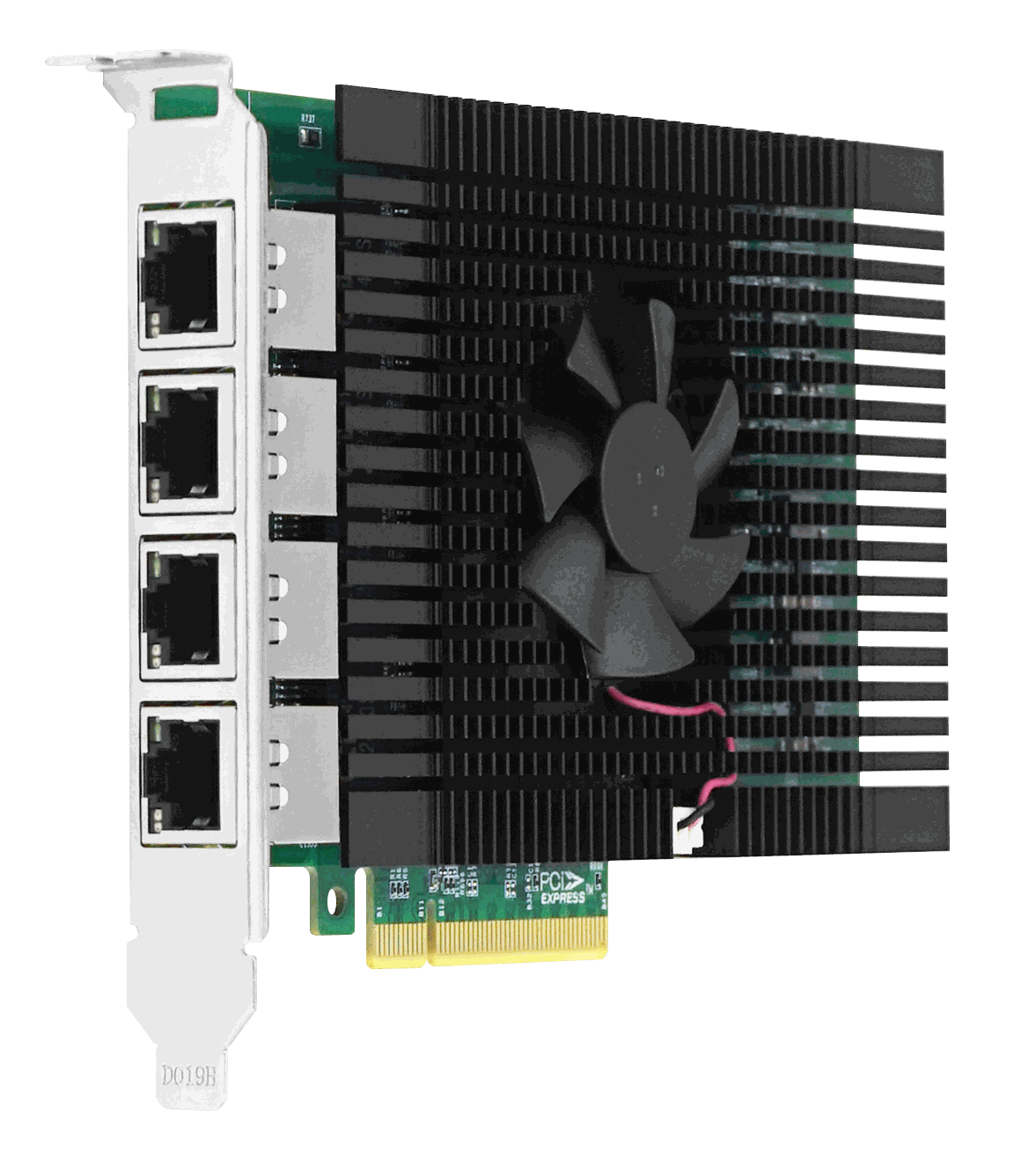

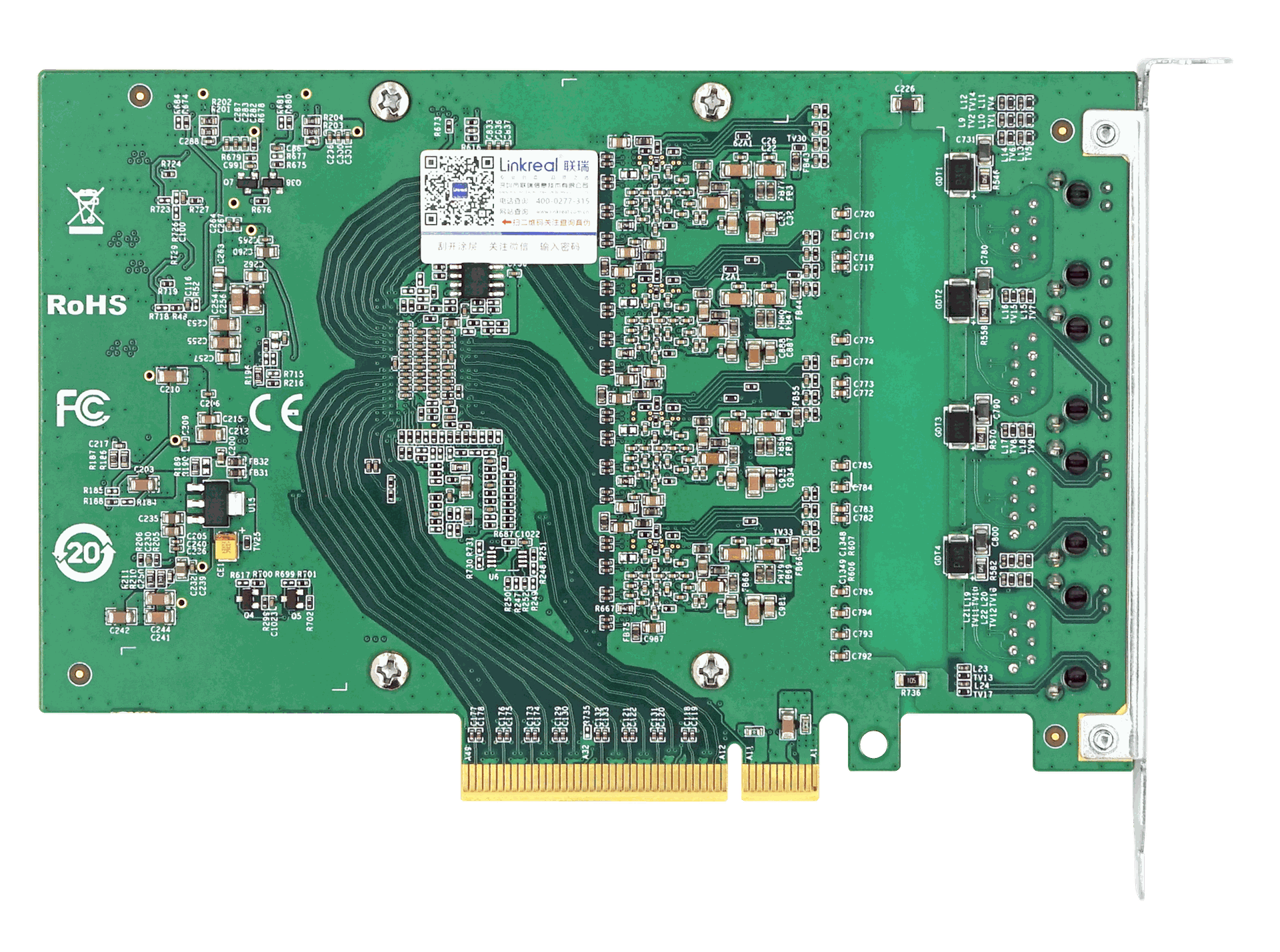

PCIe3.0 x8 Quad-port 10G Vision Frame Grabber Card (Aquantia AQtion AQC113 Based)
Key Features
- Supports 6 network rates, including 10M/100M/1G/2.5G/5G/10Gbps;
- Supports PXE and UEFI functions;
- Support for packets up to 16 KB (Jumbo Frames).

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

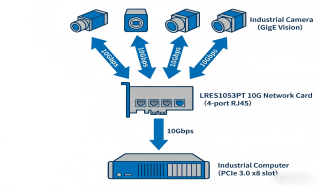

LRES1053PT is a PCIe3.0 x8 quad-port 10G Ethernet network adapter developed by Linkreal Co., Ltd. based on Aquantia AQtion AQC113 host controller solution, which is also compatible with PCIe x16 slots, and is a high-performance 4-port adapter. It is a high performance 4-port adapter. It is mainly used in industrial field vision inspection equipment, vision field clients, and fast mobile Ethernet data transmission equipment. The adapter has outstanding performance in data transmission, network bandwidth, average transmission delay, and actual packet transmission rate. It can connect four 10GigE industrial cameras at the same time and work stably, which meets the use of regular industrial control machine installation.

Model

LRES1053PT

Controller

Aquantia AQtion AQC113

Cable medium

Copper

Fiber Type

10GBASE-T/5GBASE-T/2.5GBASE-T/1000BASE-T100BASE-TX/10BASE-Te.

Bracket Height

Full Height

Min Power(w)

1.2

Max Power(w)

19.38

Connector

4*RJ45

Bus Type

PCIe v3.0 (8GT/s) x8

Data rate per port

10M/100M/1G/2.5G/5G/10Gbps

Power Supply

PCIe

Protocol Support

IEEE 802.3ae 10 Gigabit Ethernet over fiber

IEEE 802.1Q VLAN    IEEE 802.3AD

IEEE IEEE 802.1AS   IEEE P802.1Qaz

IEEE Std 802.1Qau   IEEE P802.1Qbb

PXE

Yes

WoL

No

UEFI

Yes

SR-IOV

No

1588 PTP

Yes

Jumbo Frames

16KB

System Support

Windows 10 (21h2 or later)

Windows 11

Windows Server 2022

RHEL/Centos7.3/7.6/7.9/8.2/8.3

Deepin 15.11/20/20.6

Ubuntu 16.04.3/18.04.5

Ubuntu 20.04.1

NewStartOS 3.2.2

openKylin 0.7.5

KylinOS V10 SP1

NeoKylin7.6

Zhongke Fangde Desktop Operating System 4.0

Zhongke Fangde Server Operating System

UOS 20

YMOS

10M/100M/1G/2.5G/5Gbps

Connection Status

(ACT)Orange Link+(LINK) Green Link

Transfer status

(ACT)Orange Link+(LINK) Green Blink

10Gbps

Connection Status

(ACT)Green Link+(LINK) Green Link

Transfer status

(ACT)Green Link+(LINK) Green Blink

Operating Temperature

0to 50(32 to 122 )

Storage Temperature

-40 to 85 (-40to 185 )

Storage Humidity

Maximum: 90% non-condensing relative humidity at 35 ℃

Certification

FCCCERoHS
