LRES2051PT

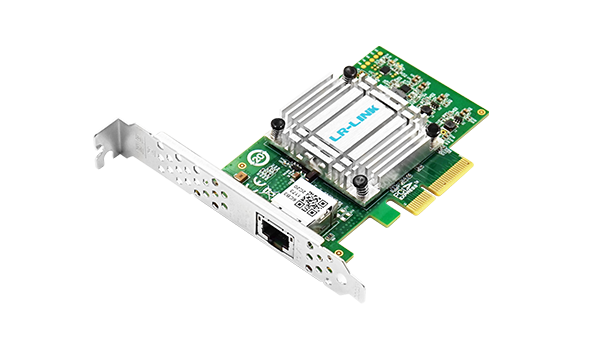

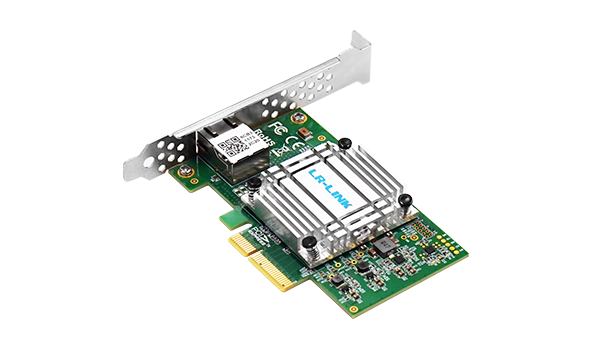

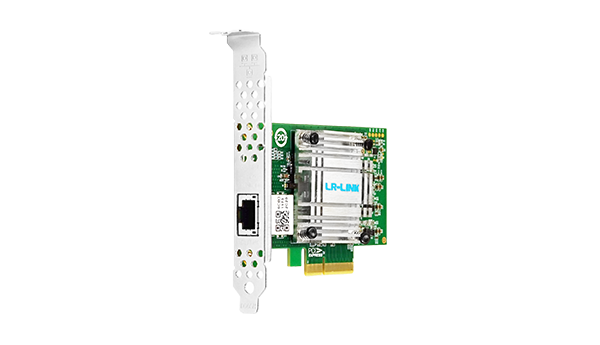

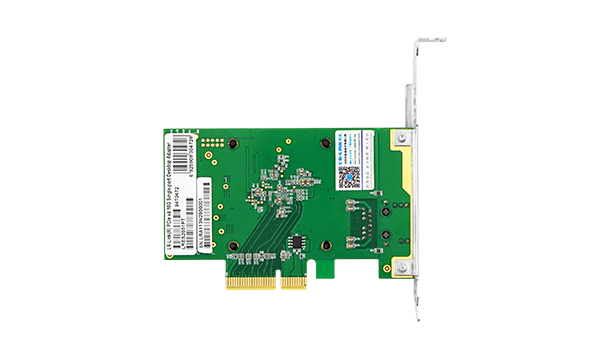

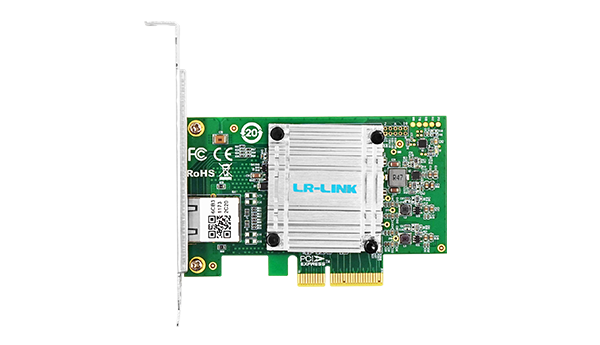

PCIe 3.0 x4 Single-port 10G Copper Ethernet Network Adapter
Key Features
- Improves CPU utilization and network performance;
- Support low power consumption mode;
- Support six network rates ;
- Support PCIe v3.0 x4.

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products


LRES2051PT is a single-port 10G Ethernet network adapter developed by Linkreal Co., Ltd based on the Marvell AQC113 master control scheme. This adapter is compatible with PCIe x8 and x16 channels and is a high-performance six-speed adapter that provides power and space-efficient connections for client systems while the universal PCIe v3.0 x4 interface provides better flexibility.


LRES2051PT is compatible with IEEE 802.3an & IEEE 802.3 bz standards and can achieve 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-TX, and 10BASE-T transmission on 10-meter twisted pair wiring. The product has excellent ESD anti-static performance and supports jumbo frames up to 16 KB, which can fully utilize the Ethernet performance of the network adapter and improve data transmission efficiency.
Jumbo Frame Transfer PCIe x4 dual-port 10G Ethernet Network Adapter: LRES1042PT



Model

LRES2051PT

Controller

Marvell  AQC113

Cable medium

Copper

Copper Cable Type

10GBASE-T/5GBASE-T/2.5GBASE-T/1000BASE-T/100BASE-T/ 10BaseT

Bracket Height

Low Profile & Full Height

Power (min)

1.2177 W

Power (max)

2.805W

Bus Interface

PCIe v3.0 (8GT/s) x4; Compatible x8 x16

Data rate per port

10G /5G /2.5G /1G /100M /10M

Connector

1*10G RJ45

Power Supply

PCIe

Operating System Support

* Windows 10 /11 (21h2 or later)

* Windows Server 2022

* RHEL/Centos7.3 /7.6 /7.9 /8.2 /8.3

* Deepin 15.11 /20 /20.6

* Ubuntu 16.04.3 /18.04.5

* ZTE New Fulcrum 3.2.2 /5.0.5

* Asianux Server v7.0

* NeoKylin 7.6

* Zhongke Fangde desktop operating

system 4.0

* Zhongke Fangde server operating system

* Tongxin UOS 20

* Emind OS

* OpenKylin  0.7.5

* iKuai router

PXE

Yes

WoL

Yes

Jumbo Frames

Yes

SR-IOV

No

ESD_Contact discharge

±8KV

ESD_Air discharge

±15KV

Lightning surge test

±1KV common mode

Protocol Support

IEEE 802.3an 10 Gbit/s Ethernet over unshielded twisted pair

IEEE 802.3bz 2.5/5GBASE-T

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.1Q VLANs

IEEE 802.3x Full Duplex and flow control

IEEE 802.3az - Energy Efficient Ethernet (EEE)


10M/100M/1G

/2.5G/5G/10G

Connection Status

(ACT) Orange Link + (LINK) Green Link

Transfer status

(ACT) Orange Link + (LINK) Green Blink


Operating Temperature

0℃ to 70℃ (-32 ℉ to 158 ℉)

Storage Temperature

-55 ℃ to 105 ℃ (-67 ℉ to 221 ℉)

Storage Humidity

Maximum: 90% non-condensing relative humidity at 35 ℃

Certification

FCC, CE, RoHS

PCB size(unit:mm)

105.1*68.1*1.6

Package size (unit: mm)

179*150*30

Product Weight(unit:g)

*

Baffle specifications

Full bracket(installed) and Low Profile

Network card

*1

Product warranty card

*1

Packing

Carton and Blister box
