LRES1042PT

PCIe x4 dual-port 10G Ethernet Network Adapter
Key Features
1. With a rate of 100Mbps,1 /2.5 /5 /10Gbps;
2. It can enhance DPDK to be more efficient and flexible in packet forwarding and packet
processing.

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

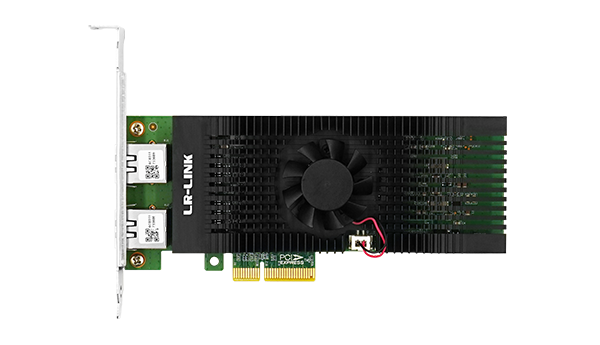

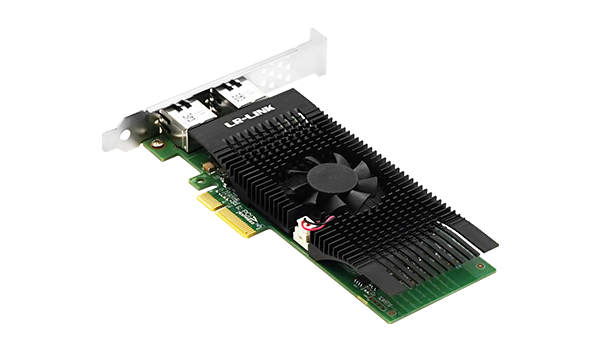

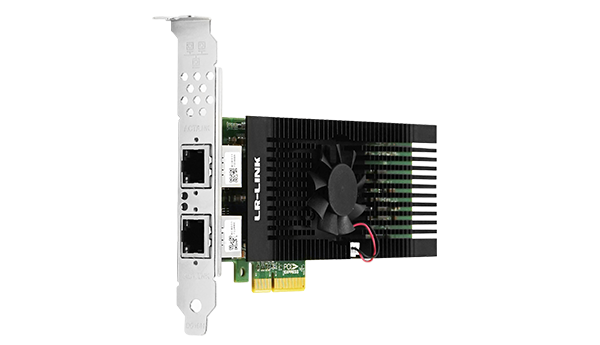

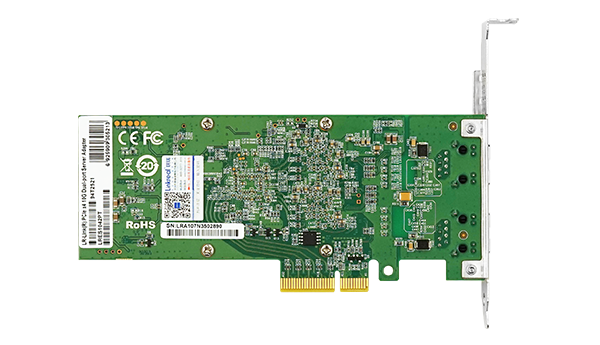

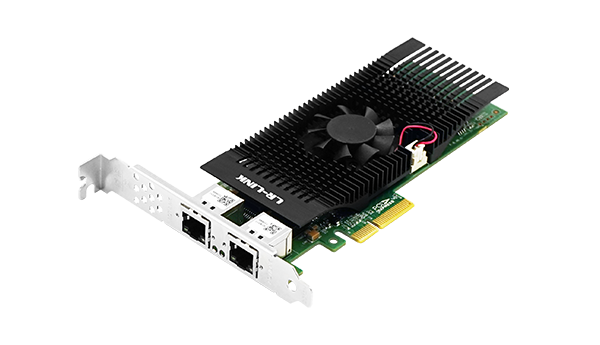

LRES1042PT is a PCI Express x4 dua-port 10G ethernet network adapter independently developed by Linkreal Co., Ltd., It is also compatible with PCIe x8 and x16 channels. It is a high-performance 5-speed adapter that can provide power and space-efficient connections for client systems, while the universal interface of PCIe v3.0 x4 makes this product more flexible.

LRES1042PT is compatible with IEEE 802.3an & IEEE 802.3 bz standards, and can realize 2.5GBASE-T, 5GBASE-T, 10GBASE-T, 1000BASE-T and 100BASE-TX transmission over 100m twisted pair wiring.

MSI, MSI-X, LSO, RSS and IPv4/IPv6 checksum offload for high performance and low CPU utilization, with jumbo frame support up to 16 KB.

PCIe x4 Single-port 10G Copper Ethernet Network Adapter: LRES2051PT

Cost reduction and efficiency increase + high precision, 5/10G industrial camera vision inspection comes new demands

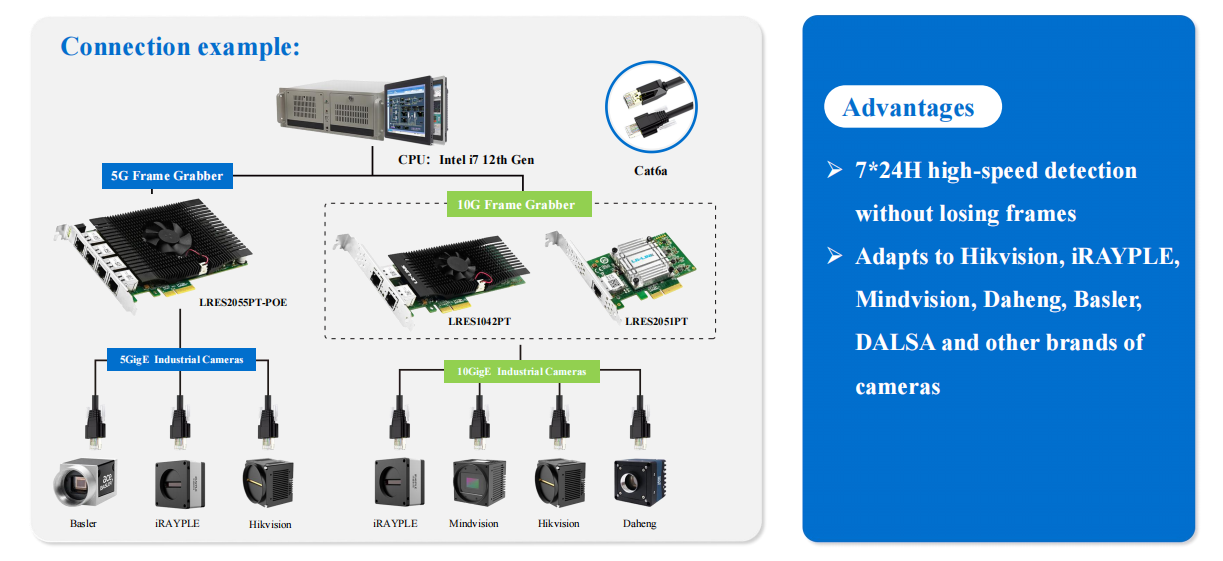

LR-LINK 5/10G machine vision inspection solution--recommended configuration

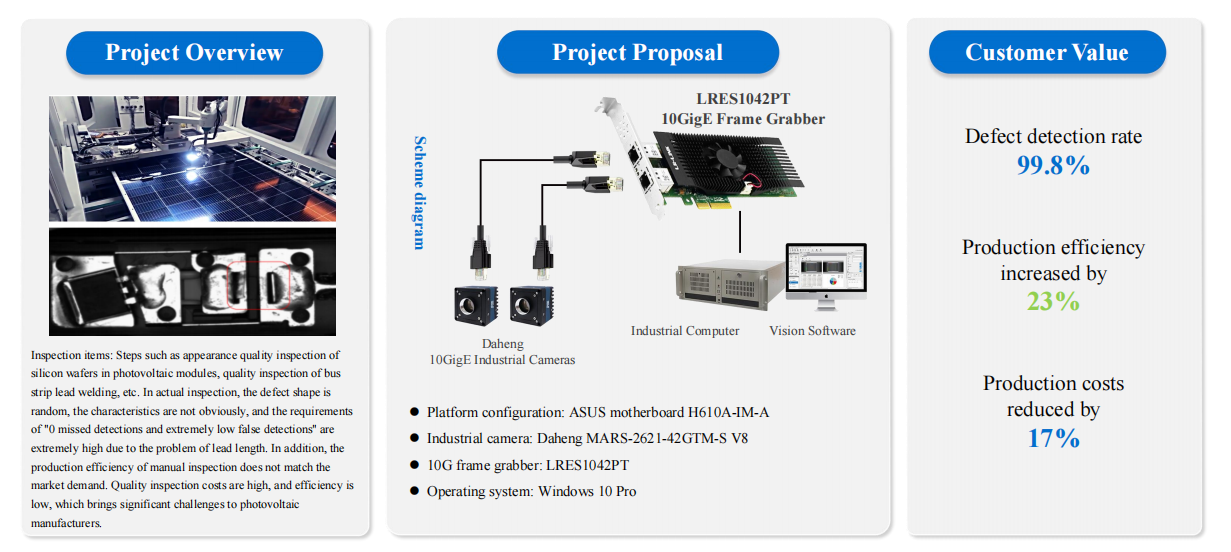

10G Frame Grabber Customer Application Case 1

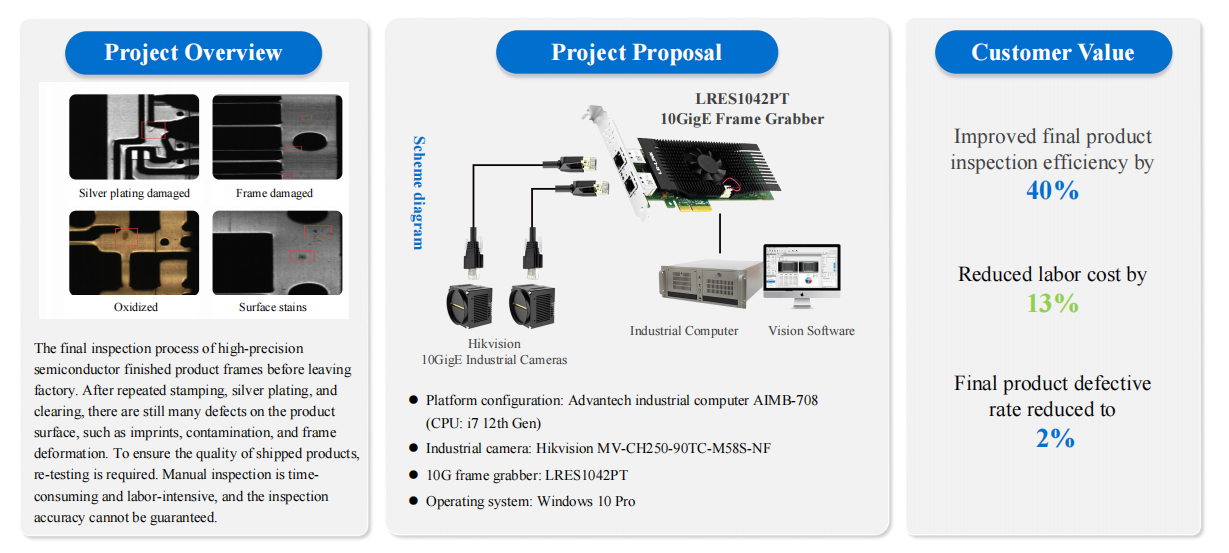

10G Frame Grabber Customer Application Case 2




Specifications


Cable medium

Copper

Fiber Type

100Base-TX, 100Base-T4, 100Base-T

1000BASE-CX, 1000BASE-T

2.5GBASE-T, 5GBASE-T, 10GBSAE-T

Bracket Height

Low Profile & Full Height

Power (min)

6.84 W

Power (max)

11.292 W

System Support

Windows 8 /8.1 /10 /11

Windows Server 2008 /2012 /2016

Windows Server 2019 /2022

Deepin 15.11 /20 /20.6

VMware ESXi 6.7

Galaxy Unicorn v10

NeoKylin 7.6

RHEL/Centos  7.3 /7.6 /7.9

RHEL/Centos  8.2 /8.3

Ubuntu 16.04.3 /18.04.5

Ubuntu 20.04.1 /22.04.2

SUSE 15.4

ZTE New Fulcrum 5.0.5 /3.2.2

Tongxin UOS 20

Asianux Server v7.0

Zhongke Fangde desktop operating system 4.0

Zhongke Fangde server operating system

Emind OS

iKuai router

Bus Type

PCIe v3.0 (8.0GT/s) x4; Compatible x8 x16

Data rate per port

100Mbps, 1 /2.5 / 5/ 10Gbps

Connector

210G RJ45

Power Supply

PCIe


Technical Features


Protocol Support

IEEE 802.3an 10 Gbit/s Ethernet over unshielded twisted pair

IEEE 802.3bz 2.5/5GBASE-T

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.1Q VLANs

IEEE 802.3x Full Duplex and flow contro

IEEE 802.3az - Energy Efficient Ethernet (EEE)

PXE

Yes

DPDK

Yes

WoL

No

iSCSI

No

Jumbo Frames

Yes

UEFI

Yes

SCAN CHAIN

No

SR-IOV

No

1588 PTP

Yes

Jumbo DataFrame Max

16KB

ESD_Contact discharge

±8KV (Class C)

ESD_Air discharge

±15KV (Class C)

ESD test classification

Class A: Normal performance within the limits specified by the manufacturer, commissioner, or purchaser.

Class B: Temporary loss or reduction of function or performance, but can be recoveOrange by itself after the disturbance stops, without operator intervention;

Class C: Temporary loss or degradation of function or performance that requires operator intervention to restore;

Class D: irrecoverable loss of function or performance degradation due to damage to device hardware or software, or loss of data.


Environment Features


Operating Temperature

0to 55(-32to 131)

Storage Temperature

-40 to 85 (-40to 185)

Storage Humidity

Maximum: 90% non-condensing relative humidity at 35

Certification

FCC, CE, RoHS


Physical Features


PCB Size(mm)

68.7*157.4*1.6

Package Size(mm)

222*147*28

Weight(g)

*


LED Indicators


100Mbps,1 /2.5 /5Gbps

Connection Status

Green Link + Green Link

Transfer status

Green Blink + Green Link

10Gbps

Connection Status

Green Link + Orange Link

Transfer status

Green Blink + Orange Link

Order Information



P/N

Description

LRES1042PT

PCIe x4 dual-port 10G Ethernet Network Adapter (Marvell AQC107)



PS: Above details are only for reference, if there is any change,no prior notice.
