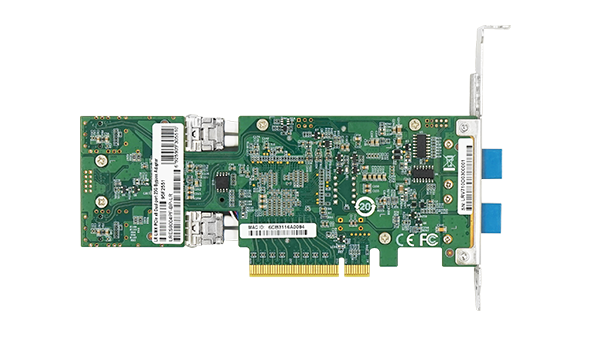

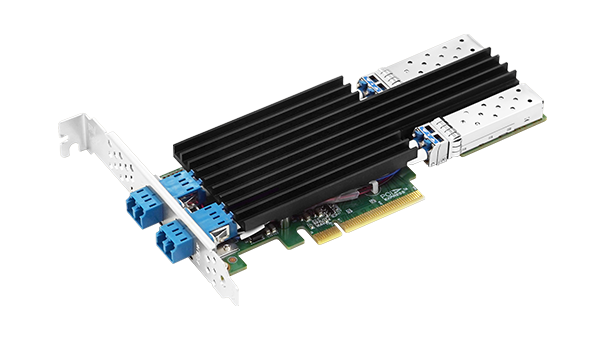

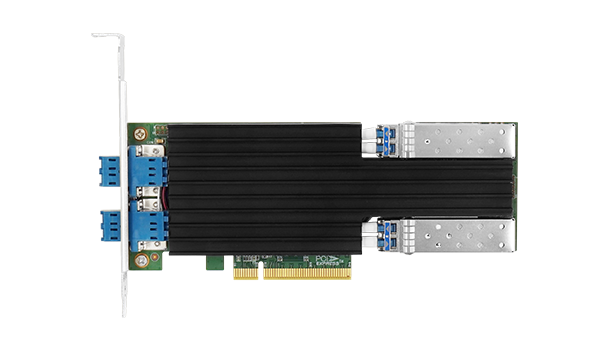

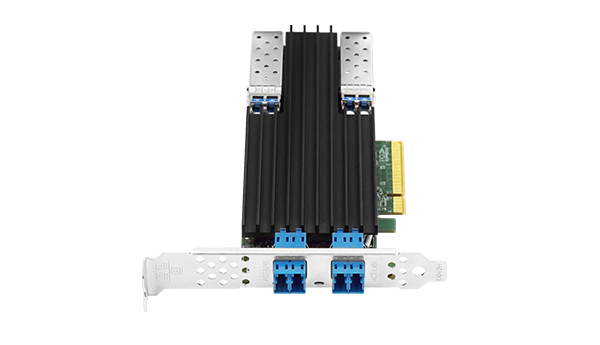

LRES8004PF-BP-LR

PCIe x8 25G Single mode Dual-port Bypass Adapter (Intel XXV710 Based)
Key Features
-Support PCIe3.0(8.0GT/s);
-Supports single-channel optical fiber BYPASS;
- Equipped with two 25G SFP28 interfaces, supporting 25Gbps data transmission rate;
- On Board Watch Dog Timer (WDT) Controller.

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LRES8004PF-BP-LR is a PCIe3.0 x8 25G Dual-port Bypass Adapter developed by Linkreal Co., Ltd. based on the Intel xxv710 main control solution. This network adapter has two Ethernet ports, each supporting data transfer rates up to 25Gbps, providing a fast and reliable network connection.

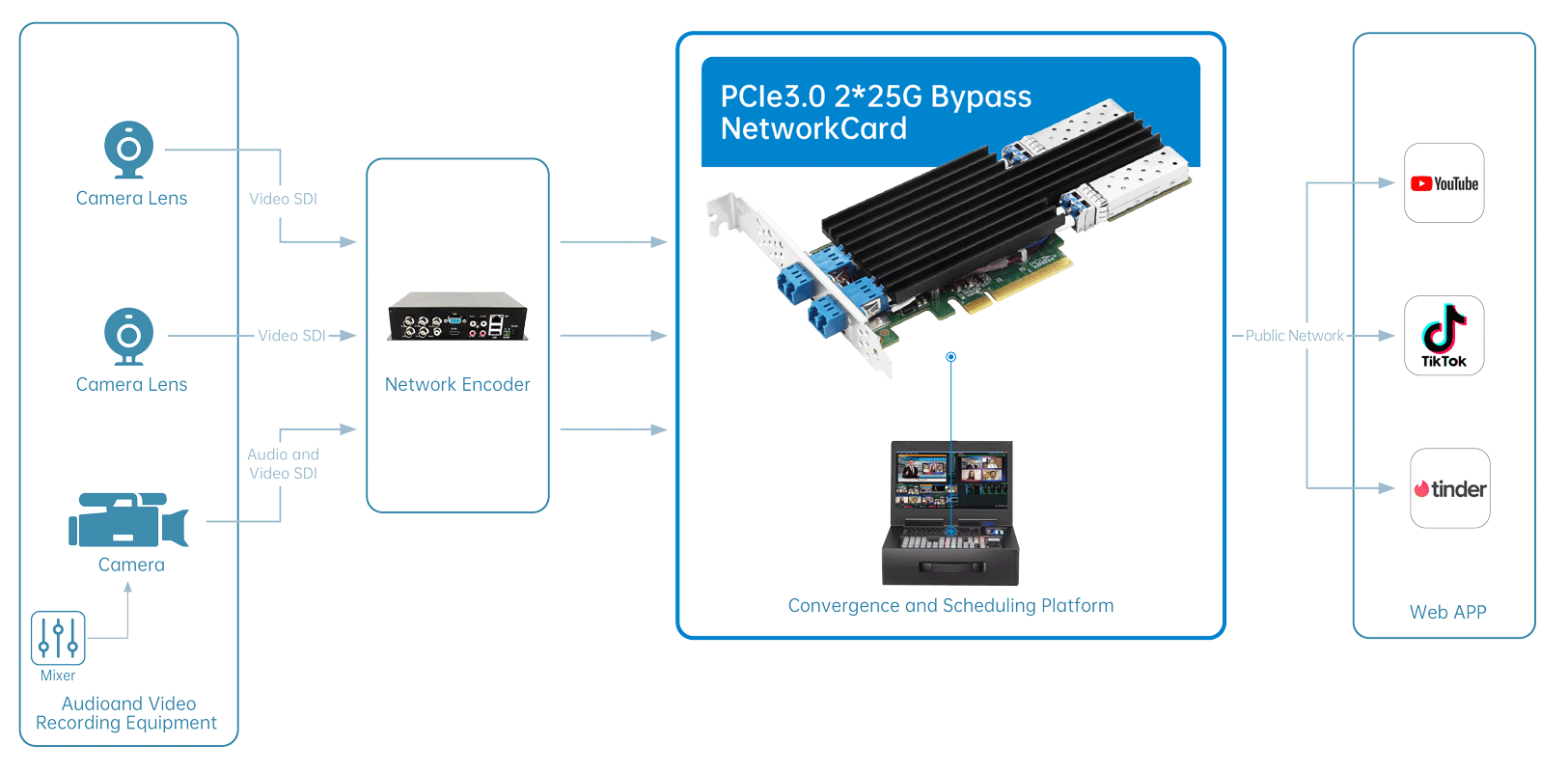

LRES8004PF-BP-LR supports single-channel Bypass function and has three working modes, namely normal mode, Bypass mode and watchdog mode. In normal mode, the network card works normally to ensure smooth network; when the device is powered off or is threatened by network security, the Bypass mode is triggered to ensure network connectivity of the back-end device. The watchdog mode can monitor the device status in real time. Once an abnormality is detected, such as system crash, program exception, etc., the Bypass function will be triggered within the set time to ensure the stability and availability of the network. The combination of these three modes provides users with powerful network fault response capabilities and ensures the continuous and stable operation of the network. In addition, it also supports network virtualization offloading, including Geneve, VXLAN and NVGRE, etc. LRES8004PF-BP-LR can be widely used in various scenarios such as firewalls, intrusion detection and prevention systems, etc., and can provide users with excellent network performance guarantee and reliable secure connections.

Model

LRES8004PF-BP-LR

Controller

Intel XXV710

Cable medium

Optical fiber

Fiber Type

25GBASE-LR

Bracket Height

Low Profile & Full Height

Min Power(w)

9.012W

Max Power(w)

10.464W

Connector

2* 25G SFP28

Bus Type

PCIe v3.0 (8.0GT/s) x8, x16 compatible

Data rate per port

25Gbps

Power Supply

PCIe

System Support

Windows10/11

Windows Server 2012 R2/2016 R2

Windows Server 2019 R2/2022 R2

RHEL/Centos 7.3/7.6/7.9/8.2/8.3

Deepin 15.11/20/20.6

Ubuntu 16.04.3/18.04.5/20.04.3

SUSE 12.5

FreeBSD 12.2

VMware ESXI 6.5/6.7/7.0

Galaxy Unicorn v10

NeoKylin 7.6

Zhongke Fangde desktop operating system 4.0

Zhongke Fangde server operating system

Tongxin UOS 20

Emind OS

iKuai router 3.6.6

OpenKylin 0.7.5

ZTE New Fulcrum 3.2.2

ZTE New Fulcrum 5.0.5

Statistics management and RMON

Yes

DCB/DCB-X

Yes

PXE

Yes

WoL

No

SR-IOV

Yes

1588 PTP

Yes

Jumbo Frames

9.5KB

Protocol Support

IEEE 802.1az    IEEE 802.1Qbb   IEEE 802.3   IEEE 802.1Q* VLANs

25G

Connection Status

Orange Link + Green Link

Transfer status

Orange Blink + Green Link

Bypass

Turn on

The green light in the middle is always on

Close down

/

Operating Temperature

0°C to 50°C (32°F to 122°F)

Storage Temperature

0°C to 55°C (32°F to 131°F)

Storage Humidity

Maximum: 90% non-condensing relative humidity at 35 ℃

Certification

FCCCERoHS

PCB size(unit:mm)

167.4*68.2*1.6

Package size (unit: mm)

222*147*28

Bracket

Full bracket(installed) and Low Profile

Internet Network Adapter

*1

Product Warranty Card

*1

Packaging

Carton + Blister Box
