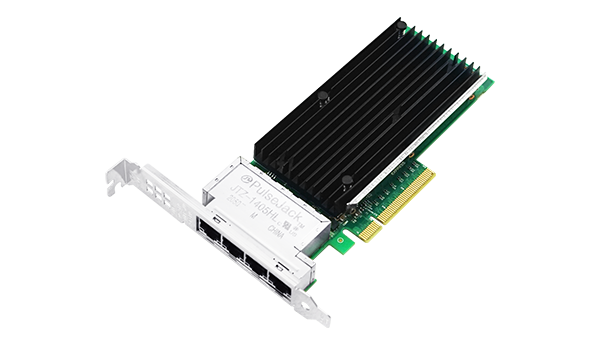

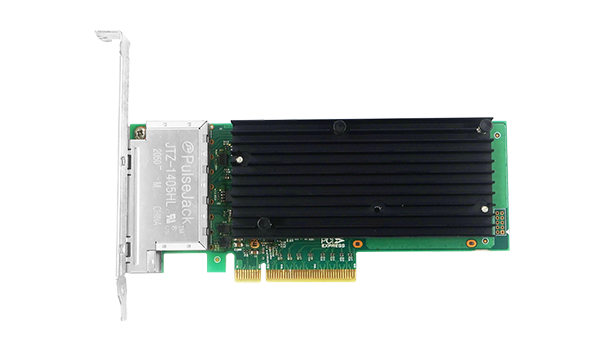

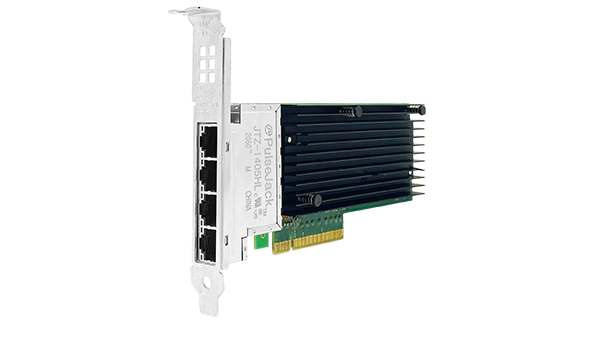

LRES1013PT

PCIe x8 Quad-port 10G Copper Ethernet Network Adapter (Intel Chip Based)
Key Features
1. Quad copper 10G Ethernet PCIe x8 ethernet network adapter
2. Compatible with PCIE X16 channels.
3. Adapter is mainly designed to be applied to servers and their application devices
4. Added NBAE-T support with 2.5G and 5.0G and adaptive link rates

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products


LRES1013PT is a quad-port copper 10G ethernet PCIe X8 ethernet network adapter independently developed by Shenzhen Lianrui Electronics Co., Ltd. on the basis of Intel master control scheme, compatible with PCIe X16 channel at the same time. The adapters are designed primarily for use on servers and their application devices, as well as for common servers.

The LRES1013PT was developed based on Intel's quad-port ethernet MAC+PHY (Media Access Controller and Physical Interface Transceiver) controller, adding 2.5G and 5.0G NBAE-T support with adaptive link rates to the previous generation of Gigabit ports. In a variety of rate adaptive but also greatly reduce the power consumption to bring better performance.


                                           Specifications



Controller

Intel Chip

Baffle Height

Full-height & half-height bracket

Power Consumption

13.8W

System Support

Windows 10

Windows Server 2016 R2/2019 R2

Linux Stable Kernel version 3.x/4.x or later;

Linux CentOS/RHEL 7.x or later;

Ubuntu 16.x or later;

VMware ESX/ESXi 5.x/6.x or later

Bus Type

PCIe v3.0 x8compatible with x16

Data rate per port

100/1000MbE/2.5/5/10GbE

Connector

4*10G RJ45



                                Technical Features



Protocol Support

IEEE 802.3an 10GBASE-T Ethernet

IEEE 802.3bz 2.5/5GBASE-T Ethernet

IEEE 802.3ab 1000BASE-T Ethernet

IEEE 802.3u 100BASE-TX Ethernet

IEEE 802.3az - Energy Efficient Ethernet (EEE)

IEEE 802.3z

IEEE 802.1Q VLANs

IEEE 802.3x

IEEE 1588

iSCSI

No

WoL

No

Jumbo Frames

YES

DPDK

Yes

PXE

Yes

FCoE

No



P/N

Description

LRES1013PT

PCIe x8 Quad-port 10G Copper Ethernet Network Adapter (Intel Chip Based)



      PS: Above details are only for reference, if there is any change,no prior notice.






You can download the driver from the URL,


https://drive.google.com/file/d/1CGRmdpbLnpponOBkr9taA5F-oCdruxBS/view?usp=sharing
