PCIe x4 Dual-port Gigabit Vision POE+ Frame Grabber (WX1860 Based)
Key Features
1. Developed on the basis of Net-swift chip WX1860;
2. It has the advantages of low cost and convenient deployment in data center deployment;
3. It is of great significance for breaking the monopoly of certain enterprises and ensuring information security.

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

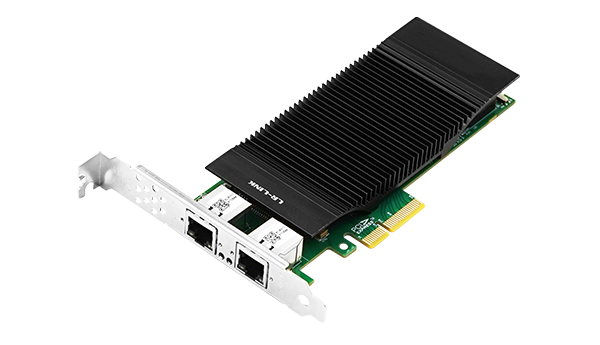

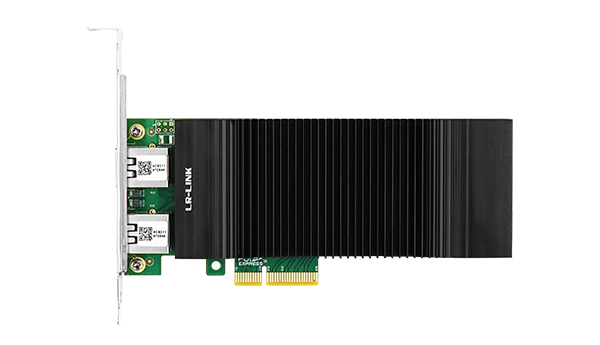

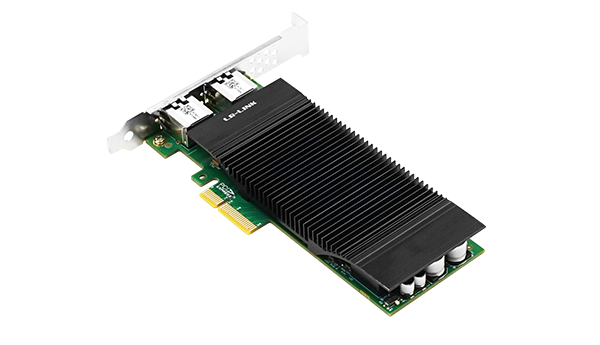

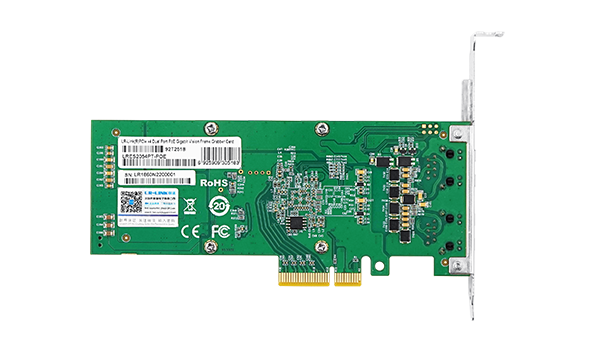

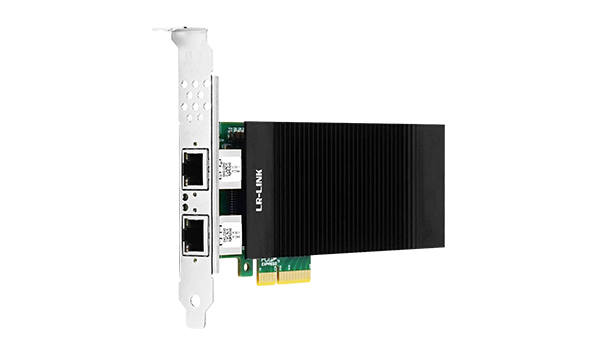

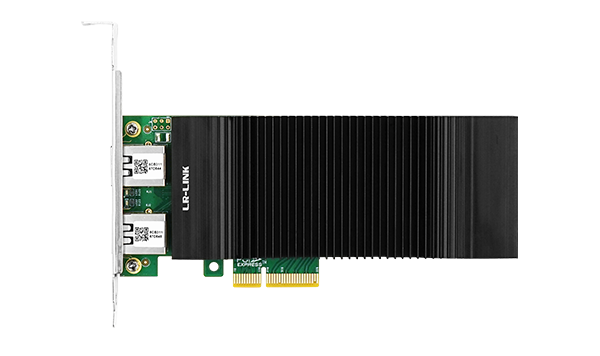

LRES2054PT-POE is a PCIe 2.0 x4 Dual-port Gigabit PoE+ Ethernet frame grabber, which is independently researched and developed by Linkreal Co., Ltd. based on the WX1860. It can be compatible with PCIe x8 and x16 channels. It is mainly used in industrial field vision inspection equipment, visual scene clients, and fast mobile Ethernet data transmission equipment. This frame grabber has a completely integrated Gigabit Ethernet media access control (MAC) module, which performs outstandingly in indicators such as data transmission, network bandwidth, average transmission delay, and actual small packet transfer rate. It can be connected to two 1GigE industrial cameras for stable operation, and meet the installation requirements of conventional industrial PCs.

Jumbo Frame Transfer, No Frame Loss: PCIe x4 dual-port 10G Ethernet Network Adapter LRES1042PT

LR-LINK's frame grabber has the following unique designs:

1. The adapter card adopts a wider RJ45 spacing design;

2. The interface is designed specifically for industrial-grade cable access, ensuring stable network speed and strong signal quality.

3. The larger heat sink can effectively solve the heat dissipation problem of the adapter in an environment with poor heat dissipation, ensuring the adapter runs stably for a long time.

4. The RJ45 connector with thick gold is carefully selected to ensure more solid and reliable connection;

5. The design of two RJ45 connectors can better save the precious PCIe slot resources of the motherboard.

Specifications



Controller

WX1860

Cable medium

Copper

Cable Type

CAT-5

50M(1Gbps);100M(1Gbps);

CAT-6

50M(1Gbps);100M(100Mbps);

CAT-6e

50M(1Gbps);100M(100Mbps);

CAT-7

100M(1Gbps)

Bracket Height

Low Profile & Full Height

Power (min)

2.736W

Power (max)

3.936W

System Support

Windows 7 /8 /8.1 /10 /11

Windows Server 2008 /2012 /2016 /2019 /2022

Deepin 20 /20.6 /20.9

VMware ESXi 6.5 /6.7

Galaxy Unicorn V10

NeoKylin 7.6

RHEL/CentOS 7.3 /7.6 /7.9 /8.3

Ubuntu 16.04.3 /18.04.5

ZTE New Fulcrum 5.0.5 /3.2.2

Tongxin UOS 20

Sianux Server V7.0

Zhongke Fangde desktop operating system 4.0

Zhongke Fangde server operating system

Emind OS

iKuai router

Bus Interface

PCIe 2.0 x4

Data rate per port

10Mpbs;100Mbps;1Gbps

Connector

2*1G RJ45

Power Supply

PCIe



Technical Features



Protocol Support

IEEE 802.3af -2003 PoE standard

IEEE 802.3at -2009 PoE+ standard

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3z

IEEE 802.1Q VLANs

IEEE 802.3x

IEEE 1588

IEEE 802.3az - Energy Efficient Ethernet (EEE)

PXE

Yes

DPDK

Yes

WoL

No

iSCSI

No

Jumbo Frames

Yes

IEEE 1588

Yes

SR-IOV

Yes

UEFI

Yes

Jumbo Frame(max)

9.5KB

ESD

±8KV (Contact) , ±15KV (Air)



Environment Features



Operating Temperature

0  to 70  (32  to 158 )

Storage Temperature

-40to 70(-40to 158)

Storage Humidity

Maximum: 90% non-condensing relative humidity at 35

Certification

FCC, CE, RoHS

Physical Features



PCB Size(L x W x H)

157.4 x 68.7 x 1.6 mm

Package Size(L x W x H)

222 x 147 x 28 mm

Weight(g)

*

LED Indicators



10Mbps

LINK

Green Link

ACT

Green Blink

100Mbps

LINK

Green Link + Orange Link

ACT

Green Blink + Orange Link

1Gbps

LINK

Green Link + Green Link

ACT

Green Blink + Green Link



Order Information



P/N

Description

LRES2054PT-POE

PCIe x4 Dual-port Gigabit Vision POE+ Frame Grabber (WX1860 Based)



PS: Above details are only for reference, if there is any change,no prior notice.
