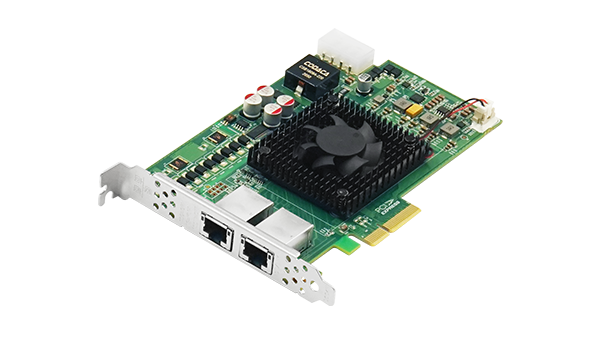

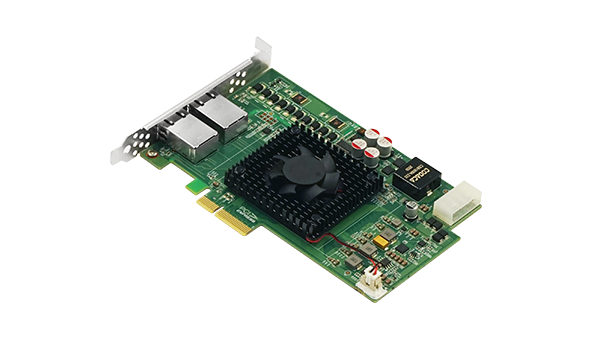

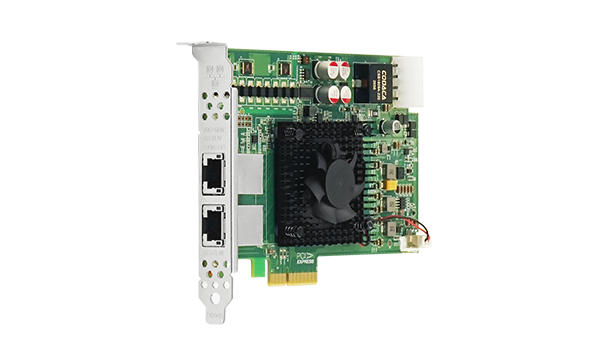

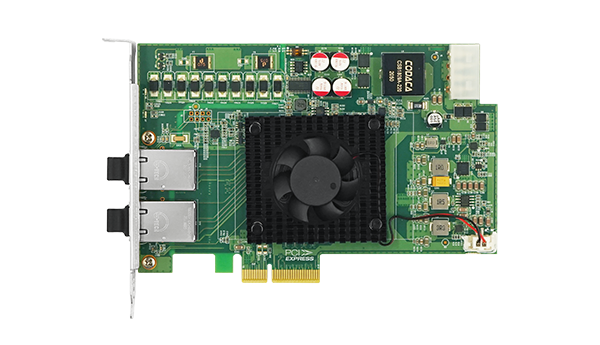

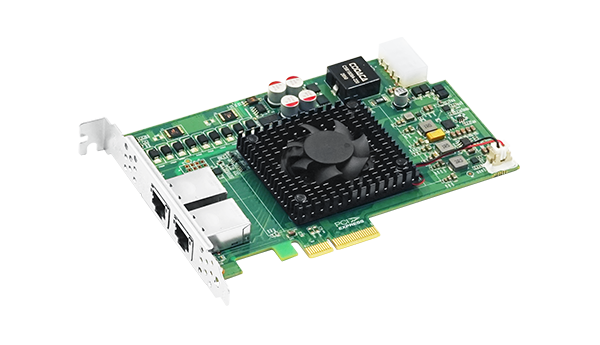

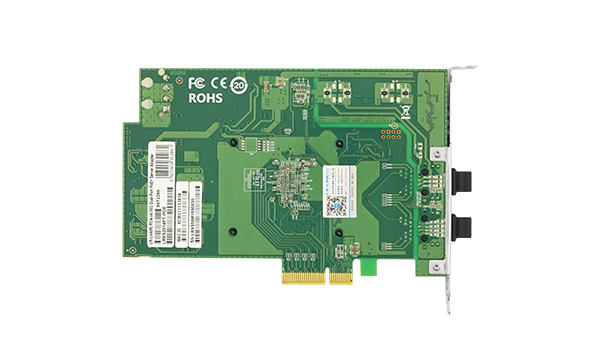

LRES2014PT-POE

PCIe x4 Dual-port 10G POE+ Ethernet Frame Grabber Card (Intel X550)
Key Features
1. The single port PoE output power consumption is up to 30W.
2. Self-adaptive power consumption output required by external equipment: Class 0, Class 1, Class 2, Class 3, Class 4;
3. The adapter card uses a wider RJ45 pitch design;
4.Increase the independent PoE switch, and each port is equipped with surge protection;
5.Increased high-efficiency cooling fan, fan speed 4000PRM, life of 50,000 hours;
6.Larger heat sink can effectively solve the problem of adapter heat dissipation in the case of poor heat dissipation environment, and effectively guarantee the stable operation of the adapter card for a long time;
7. Carefully selected RJ5 connectors with thickened and heavy gold to ensure more firm and reliable connectivity;
8. The design of two 8-Pin RJ45 headers can better save the precious PCIe slot resources of the motherboard.

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LRES2014PT-POE is a dual-port copper cable 10 Gigabit Ethernet PCI Express x4 PoE+ Ethernet image acquisition card independently developed by Linkreal Co., Ltd. based on the Inetl master control solution, and is compatible with PCIe x8 and x16 channels. The server adapter card design is mainly designed for industrial field visual inspection servers and equipment, visual field clients, fast mobile Ethernet data transmission equipment, etc., and is also suitable for ordinary servers.

This adapter card has integrated hardware acceleration function and can perform TCP/UDP/IP checksum offload and TCP segmentation tasks. The host processing technology can offload the accelerator, and the host processing technology can offload the accelerator, freeing up CPU resources to free up more CPU resources to process other applications. This adapter card is an ideal solution for deploying multiple networks and deploying critical network applications and environments on high-performance servers.

LRES2014PT-POE was developed on the basis of the Intel dual-port Ethernet MAC+PHY (Media Access Controller and Physical Interface Transceiver) controller, which can allow two ports to be fully dual at the same time when the highest 10G Ethernet connection The work mode of the worker works to adapt to high-performance network communication, and at the same time, it can also expand the bandwidth through link aggregation and save PCI Express channel resources, while not occupying the bus bandwidth.

Jumbo Frame Transfer, No Frame Loss: PCIe x4 dual-port 10G Ethernet Network Adapter LRES1042PT


                                                      Specifications

Controller

Intel chip

Transmission medium

Copper

Copper Type

Cat 6 & Cat7 or higher, 10000Base-T up to 100m (POE power min requirement Cat5)

Cat 5E & Cat6 or higher, 100Base-T /1000Base-T up to 100m (POE power min requirement Cat5)

Baffle Height

Full-height bracket

Power Consumption

8.0W

PoE Powermax

30W / port

I/O InputDC

+12V~+24V

PoE Voltage

48V

OS Support

Windows 7/8/8.1/10

Windows Server 2008 R2 /2012 R2 /2016 R2 /2019 R2

Linux Stable Kernel version 2.6.x/3.x/4.x or later

Linux CentOS/RHEL 6.5 / 7.x or later

Ubuntu 14.x/15.x/16.x or later

VMware ESX/ESXi 4.x/5.x/6.x or later

Bus Type

PCIe v3.0 x4compatible with x8 , x16

Data rate per port

100/1000/10000Mbps

Connector

2*10G RJ45 Connector

Power supply

PCIe


                                               Technical Features

Standards compliant

IEEE802.3at -2009 PoE standard

IEEE802.3af -2003 PoE standard

IEEE 802.3an 10GBASE-T Ethernet

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3z

IEEE 802.1Q VLANs

IEEE 802.3x

IEEE 1588

IEEE 802.3az - Energy Efficient Ethernet (EEE)

iSCSI

No

WoL

No

Jumbo Frames

Yes

DPDK

Yes

PXE

No

FCoE

No

PCI-SIG/SR-IOV

Yes





P/N

Description

LRES2014PT-POE

PCIe x4 Dual-port 10G Ethernet Frame Grabber (Intel chip Based  2*RJ45)
