LRES2055PT-POE

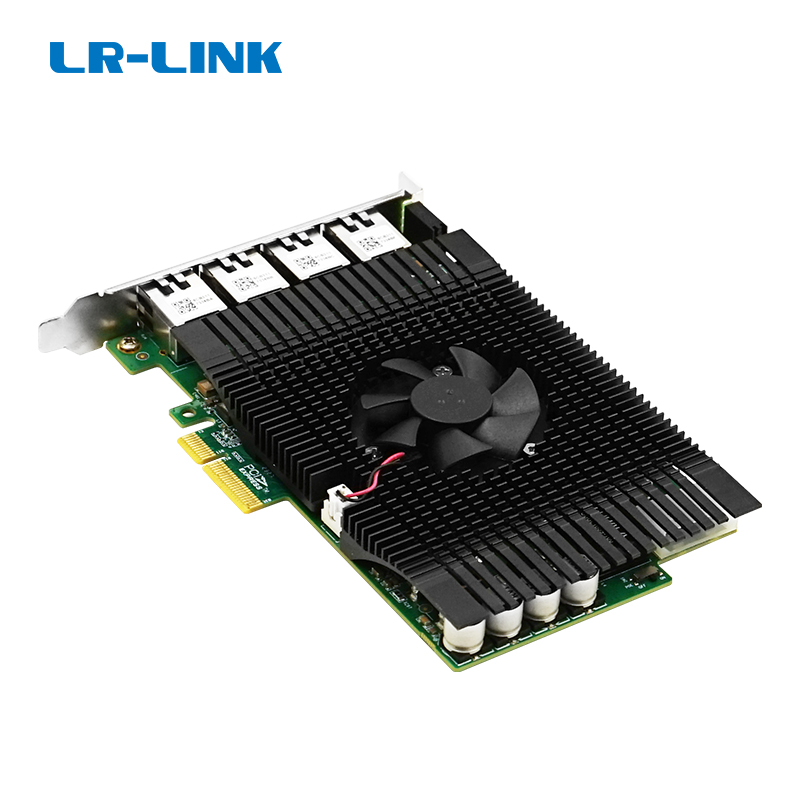

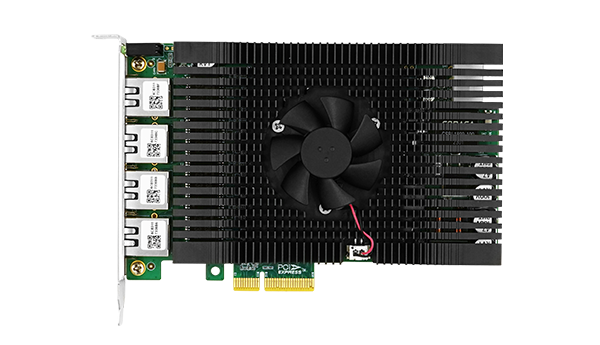

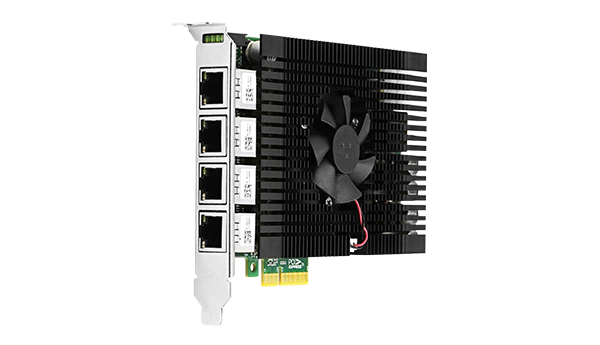

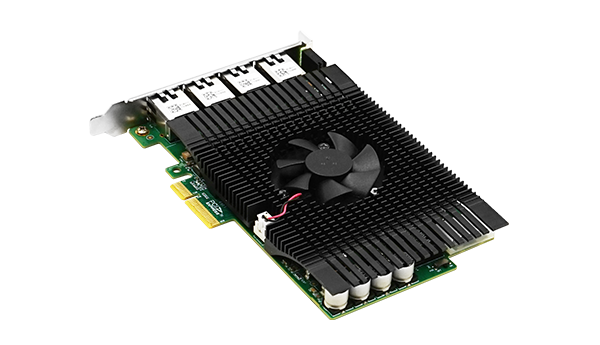

PCIe x4 Quad-port PoE+ 5G Vision Frame Grabber Card
Key Features
-Wider RJ45 spacing design;
- Stable network speed and strong signal quality;
- Larger heat sink;
- Thickened gold-plated RJ45 connector;
- 16kb jumbo frame support.

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LRES2055PT-POE is a four-port PCIe v3.0 x4 5G PoE+ Ethernet image capture card independently developed by Linkreal Co., Ltd. based on the Marvell AQC111C main controller solution. It is also compatible with PCIe x8 and x16 channels. It is A high-performance 4-port electrical adapter. Mainly used in industrial field visual inspection equipment, visual field clients, fast mobile Ethernet data transmission equipment, etc. This image capture card performs outstandingly in data transmission, network bandwidth, average transmission delay, actual small packet transmission rate and other indicators. It can be connected to four 5GigE industrial cameras at the same time to work stably and meet the installation and use of conventional industrial computers.


Rock Series: PCIe2.0 x4 4P Type A 5Gb USB 3.0 Adapter LRSU9A72-4A(3U)

LR-LINK's image acquisition card has the following unique designs:

1. The adapter card adopts a wider RJ45 spacing design;

2. The interface is designed specifically for industrial-grade cable access, ensuring stable network speed and strong signal quality.

3. The larger heat sink can effectively solve the heat dissipation problem of the adapter in an environment with poor heat dissipation, effectively ensuring the long-term stable operation of the adapter.

4. The RJ45 connector with thicker plating and gold is carefully selected to ensure more secure and reliable connection;

5. The design of four RJ45 connectors can better save the valuable PCIe slot resources of the motherboard.


Cost reduction and efficiency increase + high precision, 5/10G industrial camera vision inspection comes new demands

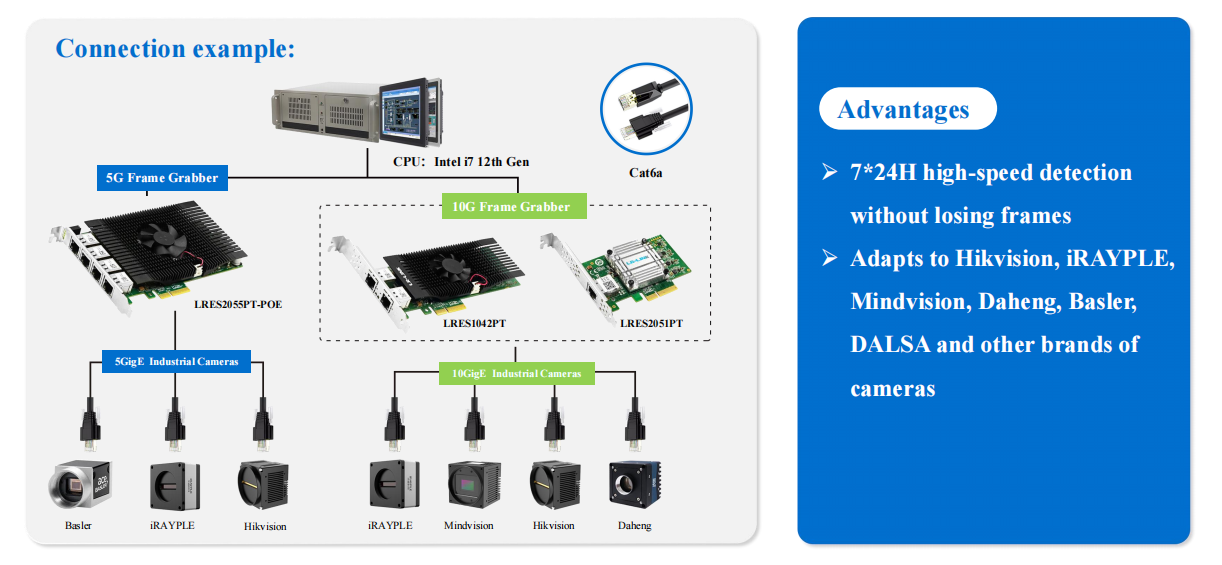

LR-LINK 5/10G machine vision inspection solution--recommended configuration

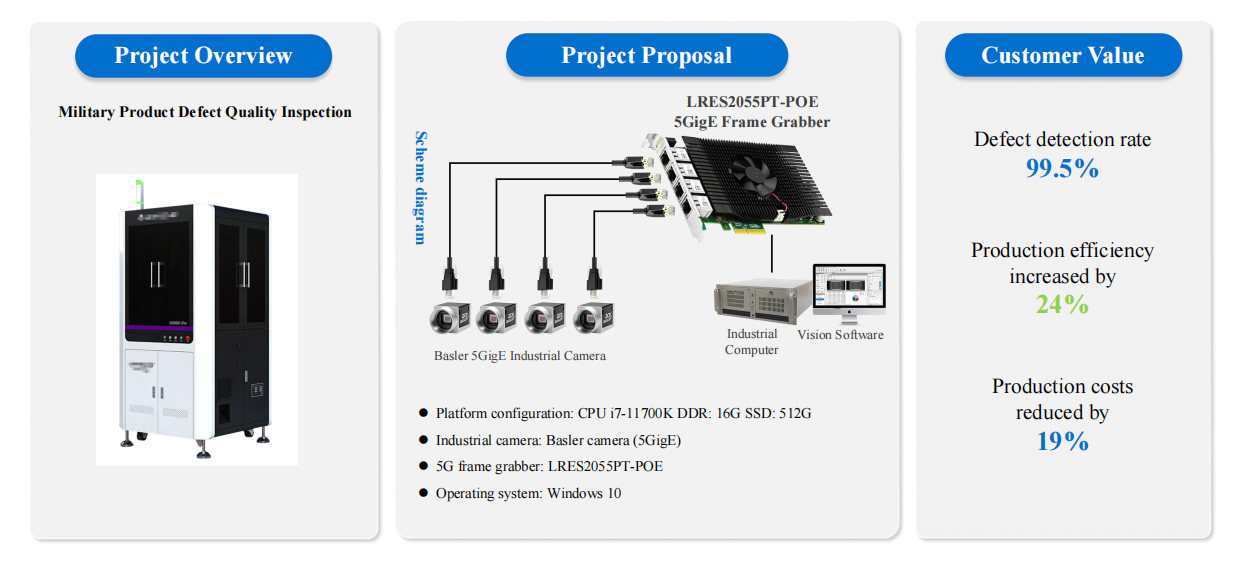

5G Frame Grabber Customer Application Case









Technical Specifications

Model

LRES2055PT-POE

Controller

Marvell AQC111C

Cable medium

Copper

Fiber Type

CAT-5

50M(5Gbps);100M(5Gbps)

CAT-6

50M(5Gbps);100M(5Gbps)

CAT-6e

50M(5Gbps);100M(5Gbps)

CAT-7

100M(5Gbps)

Bracket Height

Full Height

Power (min)

4.44W

Power (max)

20.76W

Bus Interface

PCIe v3.0 (8.0GT/s) x4; compatible x8 x16

Data rate per port

100Mbps;1Gbps;2.5Gbps;5Gbps

Connector

4* RJ45

Power Supply

PCIe

Operating System Support

* Windows 10 /11

* Windows Server 2016 /2022

* Deepin 15.11 /20 /20.6 /20.9

* VMware ESXi 6.7 /7.0

* Galaxy Unicorn V10 SP1 /V10

* NeoKylin 7.6

* RHEL/CentOS 7.6 /7.9 /8.3

* Ubuntu 16.04.3 /18.04.5

* Ubuntu 20.04.1 /22.04.2

* ZTE New Fulcrum 5.0.5 /3.2.2

* Tongxin UOS 20

* Asianux Server V7.0

* Zhongke Fangde desktop operating system 4.0

* Zhongke Fangde server operating system

* Emind OS

* iKuai router

PXE

Yes

DPDK

Yes

WoL

No

iSCSI

No

Jumbo Frames

Yes

IEEE 1588

No

SR-IOV

No

UEFI

No

Jumbo Frame(max)

16KB

ESD

±8kV

Lightning surge test

±4kV common mode

Protocol Support

IEEE 802.3an/bz

LED indication

100Mbps/1Gbps/2.5Gbps

Connection Status

Red Link + Green Link

Transfer status

Red Link+ Green Blink

5Gbps

Connection Status

Green Link + Green Link

Transfer status

Green Link + Green Blink

Working parameters

Operating Temperature

0to 70(32 to 158 )

Storage Temperature

-40 to 85 (-40 to 185 )

Storage Humidity

Maximum: 90% non-condensing relative humidity at 35

Certification

FCC, CE, RoHS




Physical properties

PCB size(unit:mm)

156.7 x 104.37 x 1.6

Package size (unit: mm)

250 x 170 x 32

Product Weight(unit:g)

*



Packing list

Baffle specifications

Full bracket(installed) and Low bracket

Network card

*1

Product warranty card

*1

Packing

Carton and Blister box
