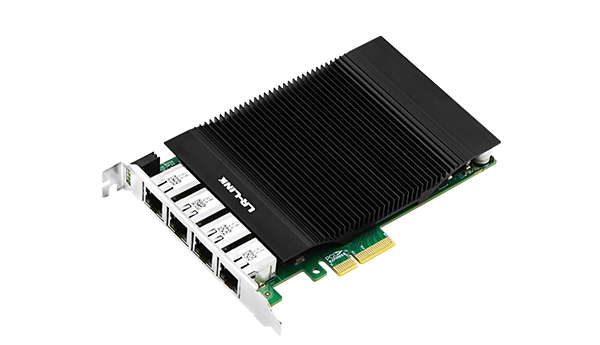

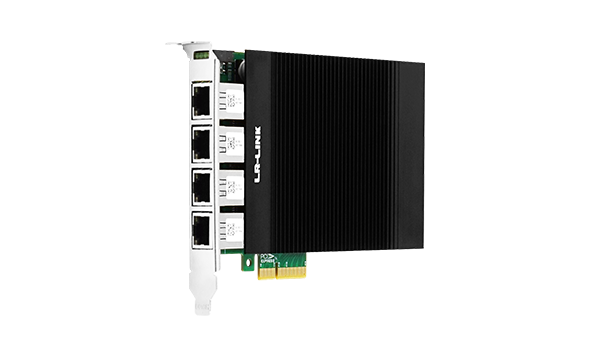

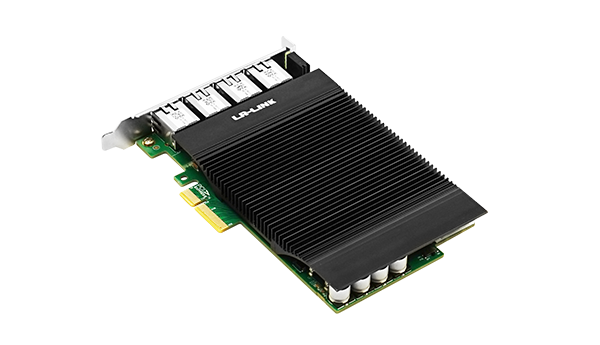

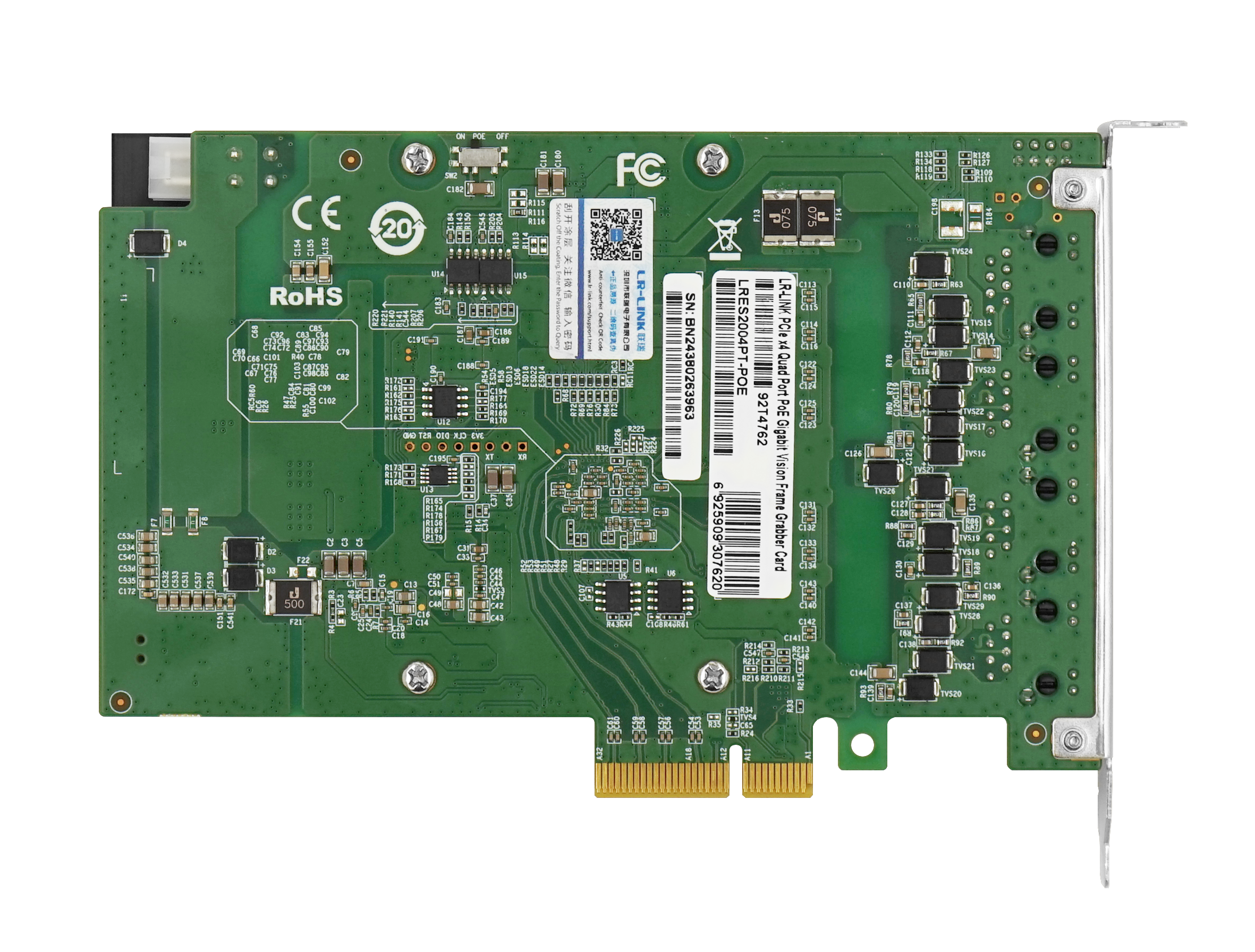

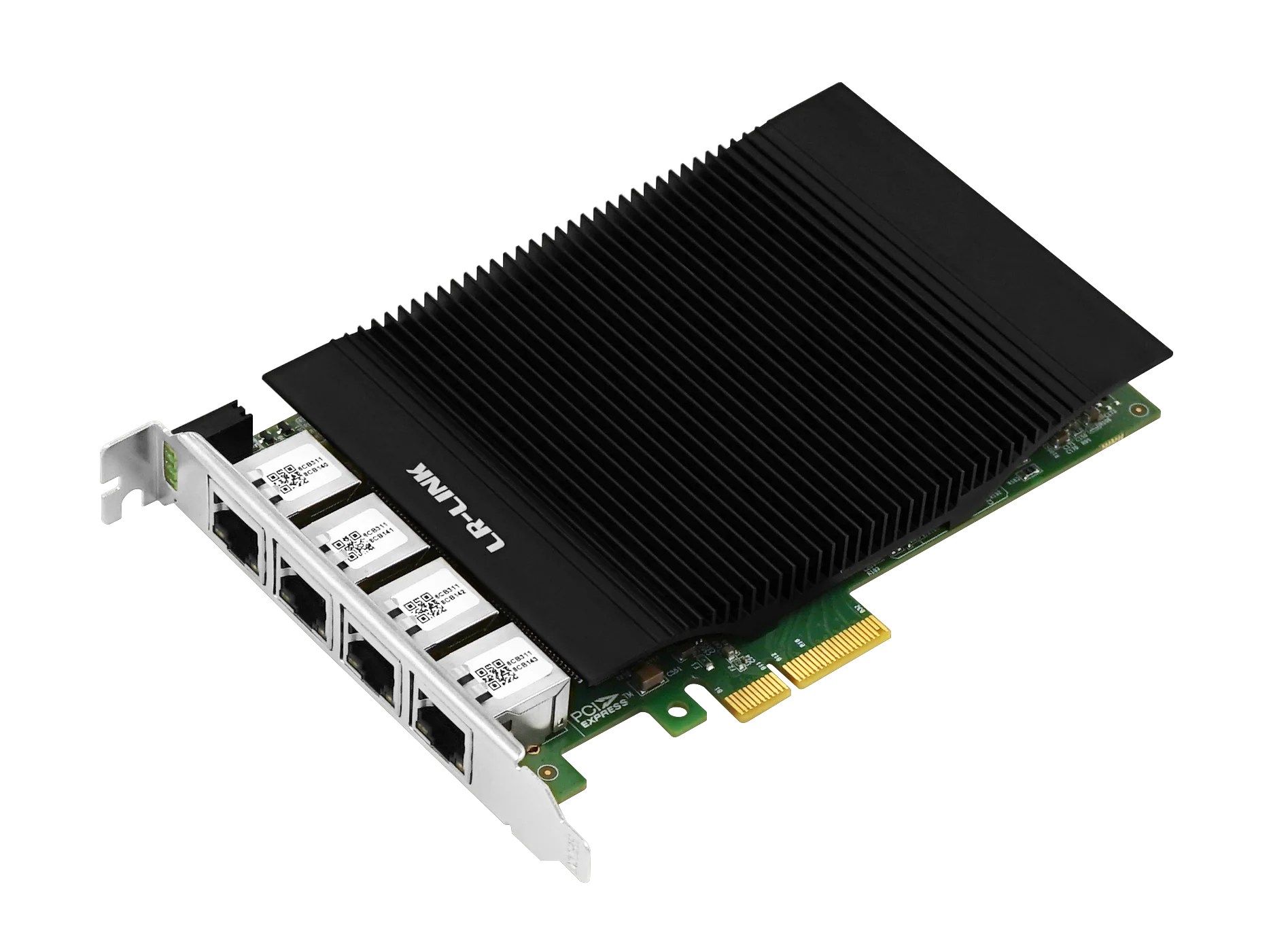

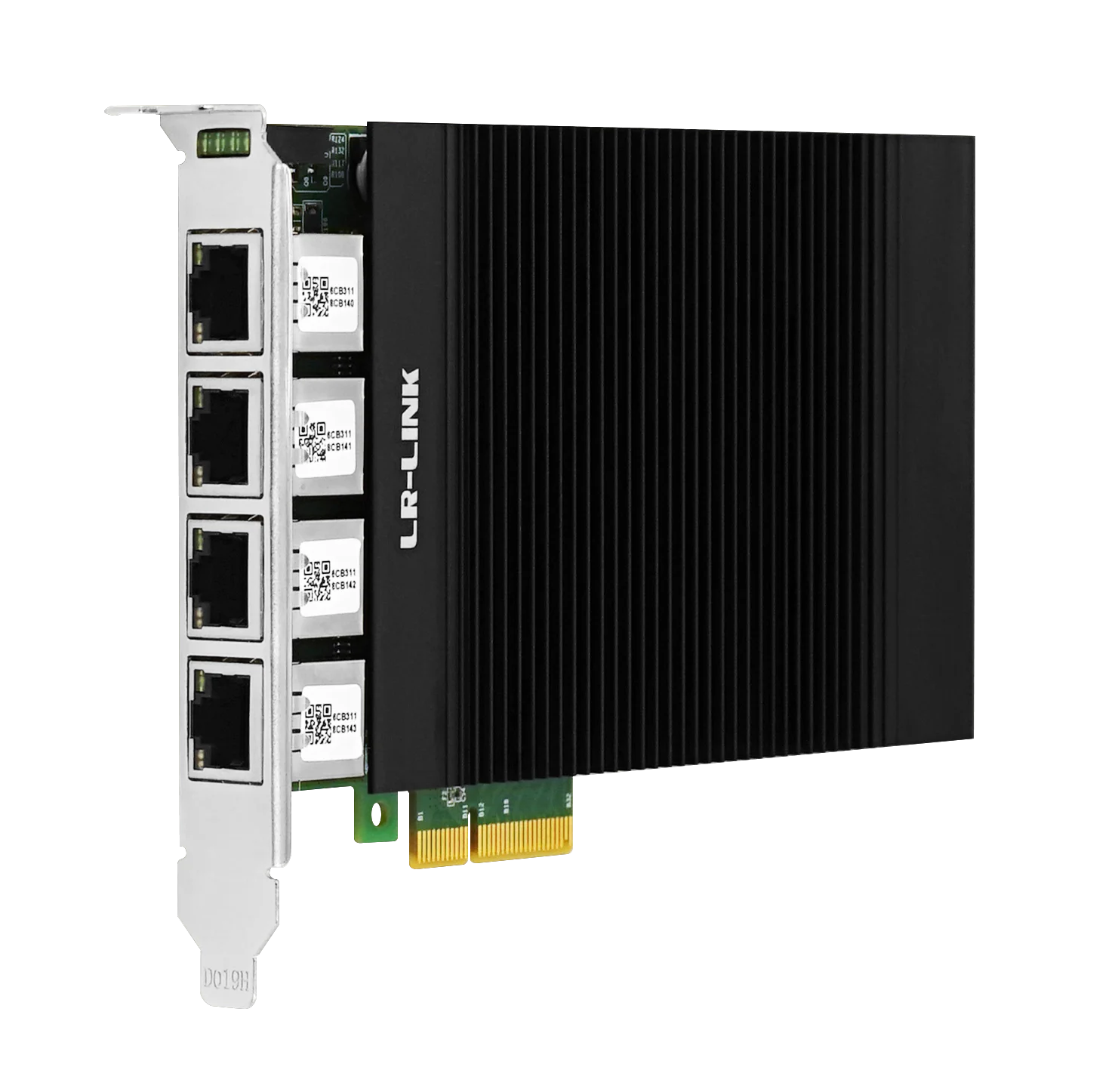

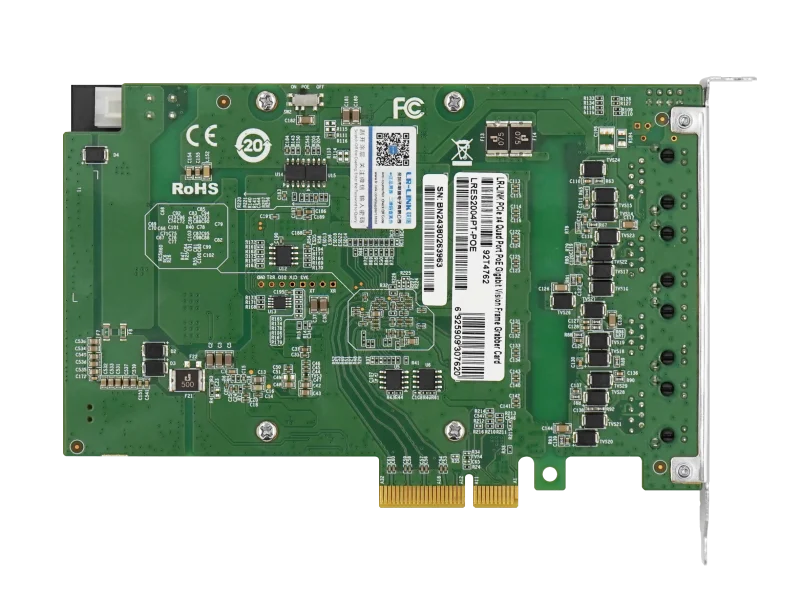

LRES2004PT-POE

PCIe x4 Quad-port 802.3at PoE+ Gigabit Vision Frame Grabber Card (Intel I350)
Key Features

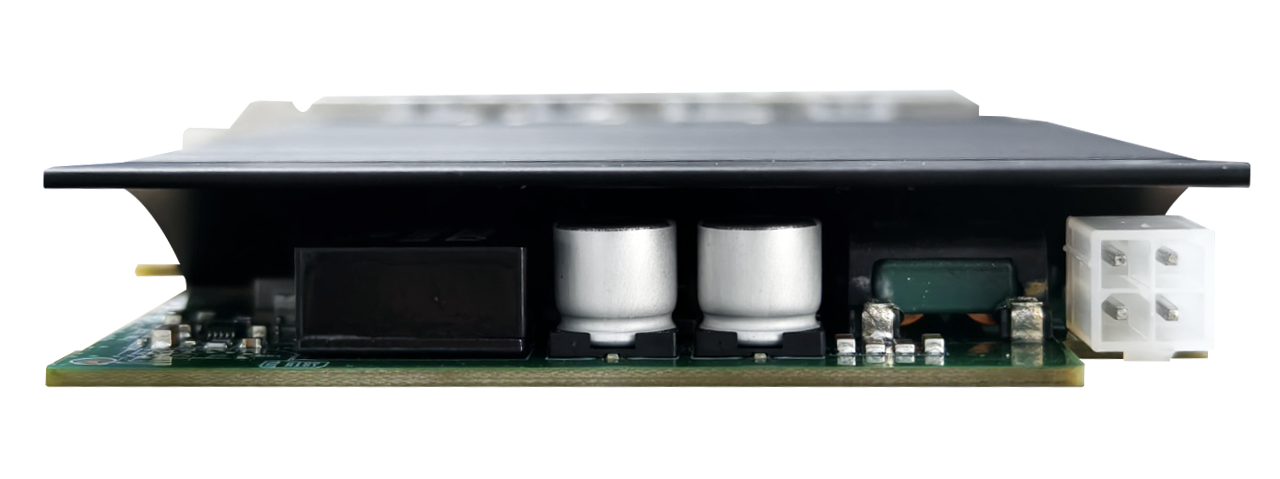

1.The single-port PoE output power consumption is up to 30W, and an external large 4-Pin power supply interface is provided.
2. Adaptive to the power consumption output required by external devices: Class 0, Class 1, Class 2, Class 3;
3.The adapter card adopts a wider RJ45 spacing design;
4.The larger heat sink can effectively solve the heat dissipation problem of the adapter in the case of poor heat dissipation environment, and effectively ensure the stable operation of the adapter card for a long time;
5.The RJ5 connector with thickened gold is carefully selected to ensure a more solid and reliable connection;
6.The design of four 8-Pin RJ45 heads can better save the precious PCIe slot resources of the motherboard;
7.The separate design of RJ45 socket and filter makes the product have better performance in conduction and radiation anti-interference performance.

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products


LRES2004PT-POE is a quad-port copper Gigabit Ethernet PCIe2.1 x4 PoE+ Ethernet image acquisition card independently developed by Linkreal Co., Ltd. based on the Intel I350 main control chip solution. It is also compatible with PCIe x8, x16 channels. The image acquisition card design is mainly designed to be used in industrial field visual inspection servers and equipment, visual field clients, fast mobile Ethernet data transmission equipment, etc., and is also suitable for ordinary servers.

The frame grabber has integrated hardware acceleration to perform TCP/UDP/IP checksum offload and TCP segmentation tasks. The host processing technology can offload the accelerator, freeing up CPU resources to free up more CPU resources to process other applications.

LRES2004PT-POE is developed based on the Intel four-port Ethernet MAC+PHY (Media Access Controller and Physical Interface Transceiver) controller, which allows four ports to fully The duplex working mode works to adapt to high-performance network communication. It can expand bandwidth through link aggregation and save PCI Express channel resources without occupying bus bandwidth.

No PoE+ power supply: PCIe x4 Quad-port Gigabit Copper Ethernet Network Adapter LRES2025PT


Specifications



Controller

Intel I350

Cable medium

Copper

Fiber Type

CAT-5

50M(1Gbps),100M(1Gbps)

CAT-6

50M(1Gbps),100M(1Gbps)

CAT-6e

50M (1Gbps),100M(100Mbps)

CAT-7

100M(1Gbps)

Bracket Height

Full Height

Power (min)

2.736W

Power (max)

6.6W

System Support

Windows 7 /8 /8.1 /10 /11

Windows Server 2008 /2012 /2016

Windows Server 2019 /2022

RHEL/CentOS 7.3 /7.6 /7.9

RHEL/CentOS 8.2 /8.3

Deepin 15.11 /20 /20.6

Ubuntu 16.04.3 /18.04.5 /20.04.1

SUSE 12.5

FreeBSD 12.2

ZTE New Fulcrum 3.2.2 /5.0.5

Asianux Server v7.0

Galaxy Unicorn v10 SP1

NeoKylin 7.6

Zhongke Fangde desktop operating system 4.0

Zhongke Fangde server operating system

Tongxin UOS 20

Emind OS

VMware ESXi 6.5 /6.7 /7.0

Mikrotik

iKuai router

Bus Type

PCIe v2.1(5.0GT/s) x4; Compatible with x8 x16

Data rate per port

1Gbps

Connector

4*1G RJ45

Power Supply

PCIe



Technical Features



Protocol Support

IEEE 802.3ae 10 Gigabit Ethernet over fiber

IEEE 802.3z Gigabit Ethernet

IEEE 802.3x Full Duplex and flow control

IEEE 802.1AS / IEEE 802.1Q VLAN

IEEE 802.3AD / IEEE 802.3ad

IEEE 802.3az - Energy Efficient Ethernet (EEE)

IEEE 802.1P / IEEE 802.3ac

PXE

Yes

DPDK

Yes

WoL

Yes

iSCSI

No

Jumbo Frames

Yes

FCoE

No

VMDq, SR-IOV

Yes

1588

Yes

Jumbo Frame(max)

9.5KB

ESD

±8KV (Contact) , ±15KV (Air)







Environment Features



Operating Temperature

0 ℃ to 55 ℃ (32 ℉ to131 ℉)

Storage Temperature

-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)

Storage Humidity

Maximum: 90% non-condensing relative humidity at 35 ℃

Certification

FCC, CE, RoHS


Physical Features



PCB Size(L x W x H)

156.7*104.37*1.6 mm

Package Size(L x W x H)

250*170*32 mm

Weight(g)

*



LED Indicators



10Mbps

Connection Status

Green Link

Transfer status

Green Blink

100Mbps

Connection Status

Green Link + Green Link

Transfer status

Green Blink + Green Link

1Gbps

Connection Status

Green Link + Orange Link

Transfer status

Green Blink + Orange Link



Order Information



P/N

Description

LRES2004PF-POE

PCIe x4 Quad-port PoE+ Gigabit Vision Frame Grabber Card (Intel I350)
