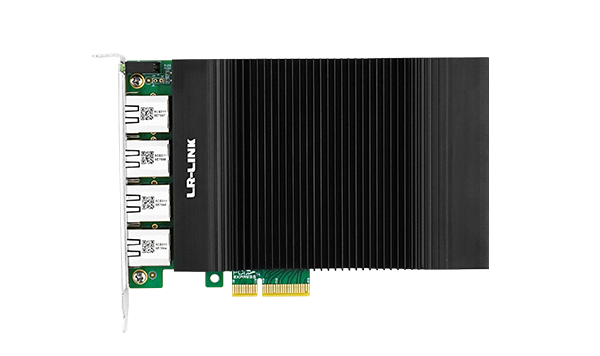

The LRES2004PT-POE is a kind of high-performance image capture card, independently researched and designed by LR-LINK. The cards supports 4 independent 10/100/1000BaseT(X) 802.3af & 802.3at (PoE) compliant Ethernet ports, With 12V DC AT/ATX power input, the LRES2004PT-POE can boost then provides up to 25.5 watts at 48 VDC power to maximum 2 x PoE ports on each module.
It allows power to be supplied to connected devices, such as PoE-based Gigabit cameras in machine vision inspection systems, without the need to use separate PoE injectors for those applications. With its 2.25 KV isolation protection, and overload current/voltage protection on LAN ports, the LRES2004PT-POE is ideally designed for scientific and medical research Instrumentations, Machine Vision, Gigabit Ethernet surveillance IP cameras in intelligent transportation systems, which can also benefit from a scalable Gigabit backbone construction with Power-over-Ethernet support.
|
Controller |
Intel I350 |
|
Transmission Rate Per Port |
10/100/1000 Mbps |
|
Network Standard Physical Layer Interfaces |
1000BASE-T:Cat 5eor higherup to 100m |
|
100BASE-Tx:Cat5/5e/6or higherup to 100m |
|
|
Jumbo Frame Support |
Up to 9.5 KB |
|
Operating Temperature |
0 °C to 55°C (32 °F to 131°F) |
|
Boot Option and Virtualization |
PXE support, Intel® VT-c |
|
LED Indicators |
1000Mbps/s:Yellow Link and Green Ack, |
|
100Mbps/s:Green Link and Green Ack,10Mbps/s: Not illuminate |
|
|
Operating System Support |
Windows Server2003/ 2008 /2008 R2 / 2012 /2012 R2 /2016 R2 |
|
WindowsXP / Vista /7 / 8 / 8.1 / 10 |
|
|
Linux Stable Kernel version 2.4.x / 2.6.x/ 3.x/ 4.xor later |
|
|
Linux SLES 9 / 10 / 11or later |
|
|
VMwareESX/ESXi4.x/5.x/6.xor later |
|
P/N |
Description |
|
LRES2004PT-POE |
PCIe x4 Quad Port 4*RJ45 802.3at PoE+ Gigabit Vision Frame Grabber Card Intel I350 Based |
|
HFC5-1L Cable-3M/5M |
Highly Flexible Cat.5e LAN cable, Single screw lock-type, 3M, 5M |
|
HFC5-2L Cable-3M/5M |
Highly Flexible Cat.5e LAN cable, Dual screw lock-type, 3M, 5M |
PS: The above details is just for reference, if there is any change, no inform will have.
