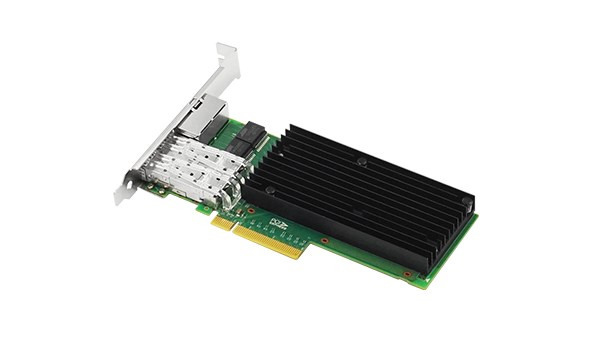

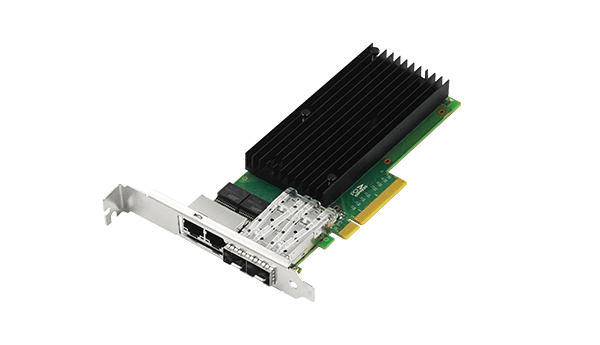

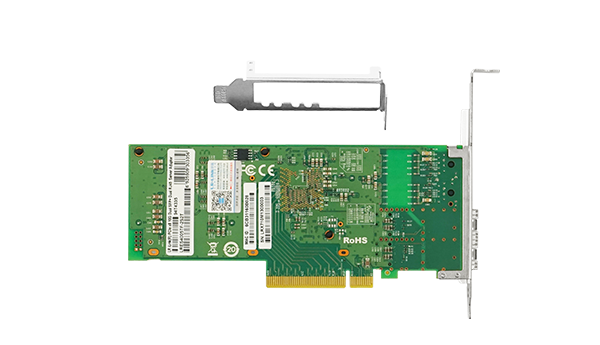

LRES4005TF-2S2T

PCIe x8 Dual-port 10G SFP+ & Copper Hybrid Ethernet Network Adapter (Intel Chipset Based)
Key Features
1. A 10Gbps PCIe X8 Ethernet network adapter with dual port and dual fiber hybrid;
2. This adapter is mainly designed to be applied to servers and their application devices;
3. Intel 4-port Ethernet MAC+PHY controller with multi-megabit speed;
4. Newly added NBAE-T support for 2.5G and 5.0G with adaptive link rates.

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products



LRES4005TF-2S2T is a 10G PCIe x8 ethernet network adapter with double electric port and double fiber hybrid, independently developed by Shenzhen Lingrui Electronics Co., Ltd. on the basis of Intel chip, compatible with PCIe x16 channel at the same time. The adapters are designed primarily for use on servers and their application devices, as well as for common servers.

The LRES4005TF-2S2T was developed based on Intel's four-port ethernet MAC+PHY (Media Access Controller and Physical Interface Transceiver) controller, adding 2.5G and 5.0G NBAE-T support with adaptive link rates to the previous generation of Gigabit ports. In a variety of rate adaptive but also greatly reduce the power consumption to bring better performance.





                         Specifications



Controller

Intel Chipset

Baffle Height

Half height & full height

Power Consumption

13.8W

Transmission medium

Fiber & Copper

Cable type

10GBase-X, 10GBase-SR10GBase-LR10GBase-ER10GBase-ZR10GBase-LRM10GBase-Cu

10GBase-T, Cat 6A up to 100mCat 6 up to 55m

2.5GBase-T & 5.0GBase-T, Cat 5e or Higher up to 100m

100MBase-T & 1000MBase-T, Cat 5e or Higher up to 100m

System Support

Windows 10

Windows Server 2012 R2/2016 R2/2019 R2;

Linux Stable Kernel version 4.x or later;

Linux CentOS/RHEL 7.x or later;

Ubuntu 16.x or later;

VMware ESX/ESXi 4.x/5.x/6.x or later

Bus Type

PCIe v3.0 x8, compatible with x16

Data rate

100M/1/2.5/5/10GbE + 10GbE

Connector

2*10G RJ45 + 2*10G SFP+



                           Technical Features



Protocol Support

IEEE 802.3ae 10GBase-X

IEEE 802.3an 10GBASE-T Ethernet

IEEE 802.3bz 2.5/5GBASE-T Ethernet

IEEE802.3z 1000BASE-X Gbit/s Ethernet

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3z

IEEE 802.1Q VLANs

IEEE 802.3x

IEEE 1588

IEEE 802.3az

iSCSI

No

WoL

No

Jumbo Frames

YES

DPDK

Yes

PXE

Yes

FCoE

No










P/N

Description

LRES4005TF-2S2T

PCIe x8 Dual-port 10G SFP+ & Copper Hybrid Ethernet Network Adapter (Intel Chip Based)



                                                                    PS: Above details are only for reference, if there is any change,no prior notice.







You can download the driver from the URL,


https://drive.google.com/file/d/1CGRmdpbLnpponOBkr9taA5F-oCdruxBS/view?usp=sharing
