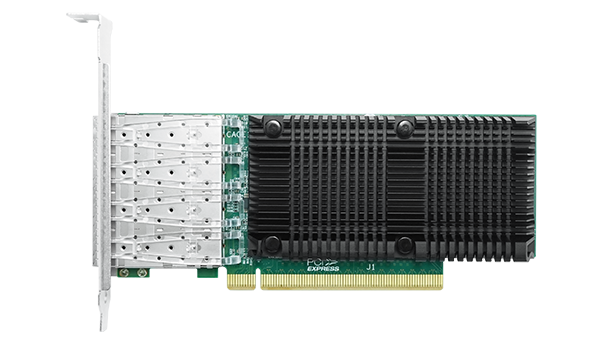

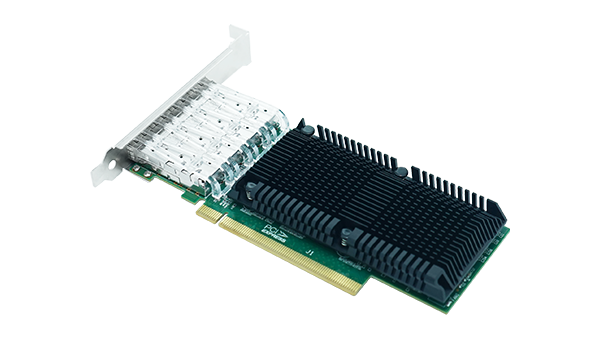

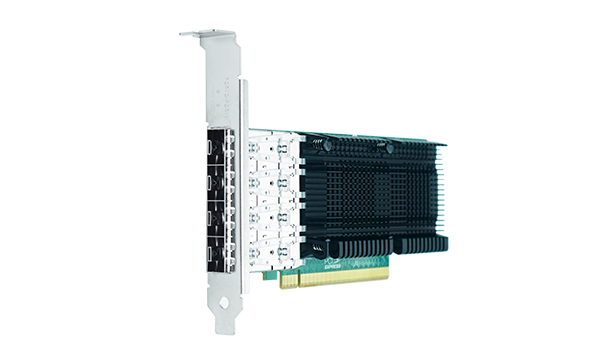

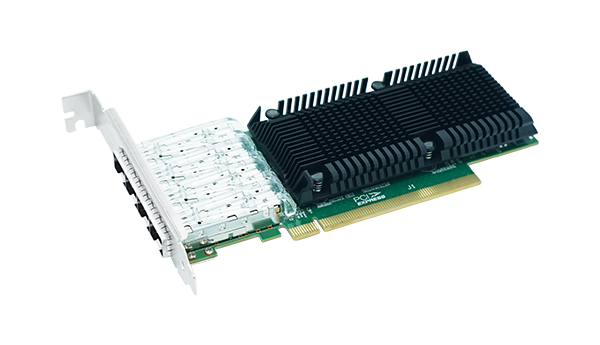

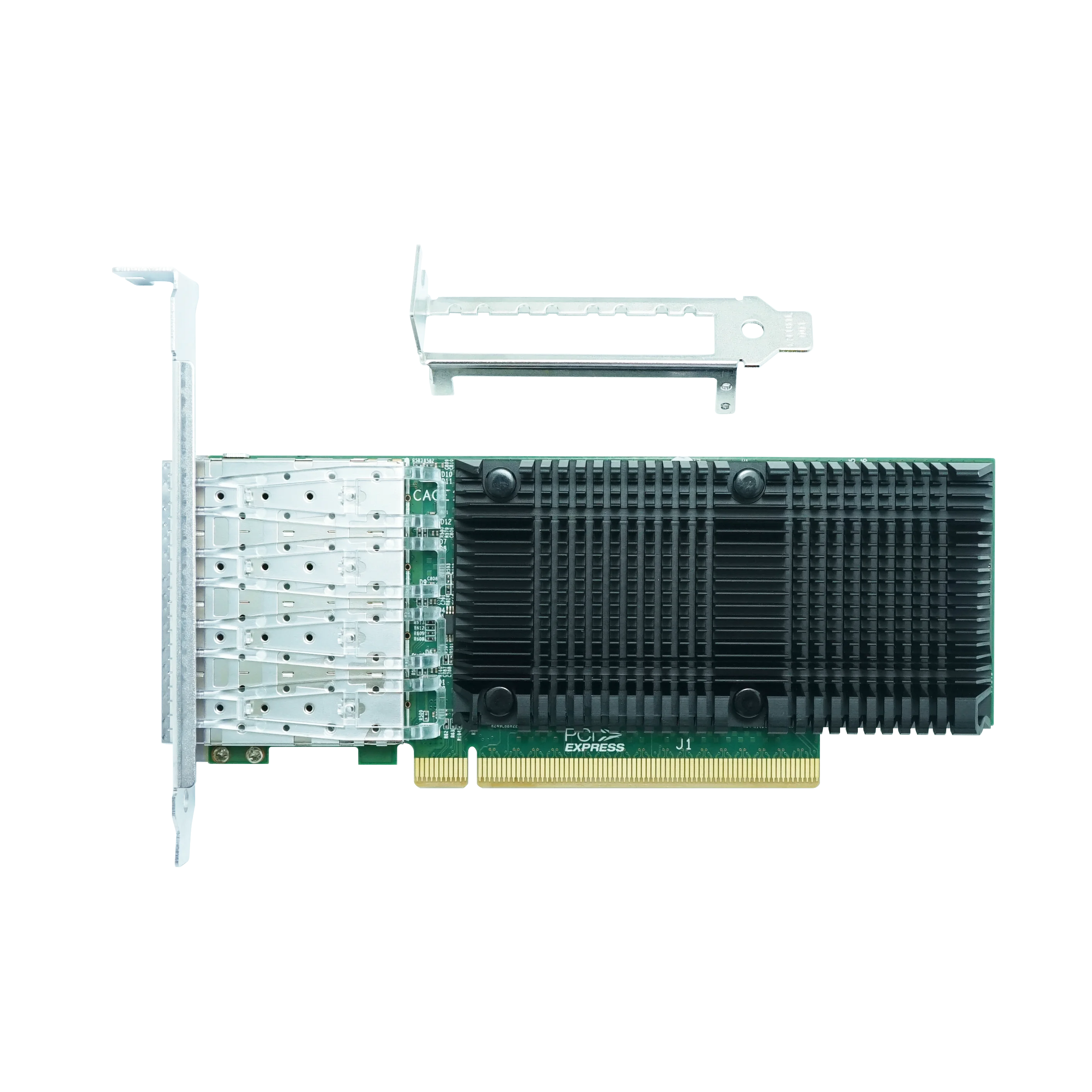

LRES1023PF-4SFP28

PCIe x16 Quad-port 25G SFP28 Ethernet Network Adapter (Intel E810)
Key Features
1. A fiber 25G ethernet network adapter based on Intel chips.
2. Four 1/10/25GbE SFP28 ports deliver multiple high speed connections.
3. Dynamic Device Personalization (DDP)
4. Supports both RDMA iWARP and RoCEv2
5. Application Device Queues (ADQ)
6. IEEE 1588 Precision Time Protocol (PTP)

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LRES1023PF-4SFP28 is a PCIe X16 quad-port 25G Ethernet network adapter developed by Linkreal Co., Ltd based on Intel master control solution. Using Intel 800 series master control, through innovative multi-functional functions to improve application efficiency and network performance. With its high-density high transmission rate ports, the cloud and communications are optimized for high-performance system workloads.

LRES1023PF-4SFP28 helps optimize performance in cloud and storage, high-density 25G port provides multiple on-demand connections, The Intel 800 series master application Device Queue (ADQ) provides dedicated traffic queues to reduce latency and improve application throughput while also supporting dynamic device personalization protocol specific traffic acceleration to improve packet processing efficiency and reduce CPU overhead. The addition of iWARP and RoCE V2's RDMA technology provides high-speed, low-latency, high-throughput connectivity to cloud storage targets.

LRES1023PF-4SFP28 contains IEEE 1588 PTP V2 precise time protocol support for precise clock synchronization.

PCIe x8 Quad-port 25G SFP28 Ethernet Network Adapter: LRES1027PF-4SFP28

Controller

Intel E810

Cable medium

Fiber Optic

Cable Type

25GBASE-SR25GBASE-LR25GBASE-Cu

10GBASE-SR10GBASE-LR10GBASE-Cu

1GBASE-SR1GBASE-LR1GBASE-Cu

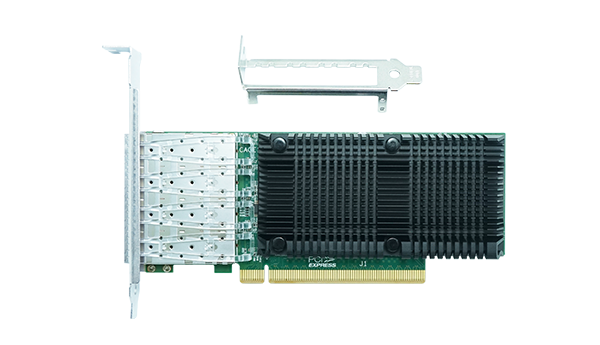

Bracket Height

Low Profile & Full Height

Power (min)

9.588 W

Power (max)

16.44W

System Support

Windows 10 /11

Windows Server 2016 /2019 /2022

Deepin 20 /20.6 /20.9

VMware ESXi 6.7 /7.0

Galaxy Unicorn v10

Galaxy Unicorn v10 SP1

NeoKylin 7.6

RHEL/CentOS  7.6 /7.9 /8.2

Ubuntu 16.04.3 /18.04.5

Ubuntu 20.04.1 /22.04.2

SUSE 12.5 /15.4

FreeBSD 12.2 /13.2

ZTE New Fulcrum 5.0.5 /3.2.2

Asianux Server v7.0

Zhongke Fangde server operating system

iKuai router

Bus Interface

PCIe v4.0 (16.0GT/s) x16

Data rate per port

1/10/25Gbps

Connector

4*25G SFP28

Power Supply

PCIe



Technical Features



Protocol Support

IEEE 802.3by-2016 25GBASE-X Ethernet

IEEE 802.3ae 10GBASE-X Ethernet

IEEE 802.1Qav

IEEE 802.1Qbu

IEEE 802.1Qbv

IEEE 802.3br

IEEE 1588 PTP v1&v2

IEEE 802.3ad

IEEE 802.3az - Energy Efficient Ethernet

PXE

Yes

DPDK

Yes

WoL

No

iSCSI

NO

Jumbo Frames

Yes

SR-IOV

Yes

IPsec offloading

Yes

UEFI

Yes

1588 PTP

Yes

Jumbo Frame(max)

9.5KB

ESD_Contact discharge

±8KV



Environment Features



Operating Temperature

0to 105(32 to 221 )

Storage Temperature

-40to 115 (-40 to 239 )

Storage Humidity

Maximum: 90% non-condensing relative humidity at 35

Certification

FCC, CE, RoHS













Physical Features



PCB Size(L x W x H)

166.32 x 68.75 x 1.6

Package Size(L x W x H)

222 x 147 x 28

Weight(g)

*



LED Indicators



1G

LINK

Green Link

ACT

Green Link + Green Blink

10G / 25G

LINK

Orange Link

ACT

Orange Link + Green Blink



Order Information



P/N

Description

LRES1023PF-4SFP28

PCIe x16 Quad-port 25G SFP28 Ethernet Network Adapter

(Intel E810 Based)


Order Information

P/N

Description

LRES1023PF-4SFP28

PCIe x16 Quad-port 25G SFP28 Ethernet Network Adapter (Intel E810 Chip Based)
