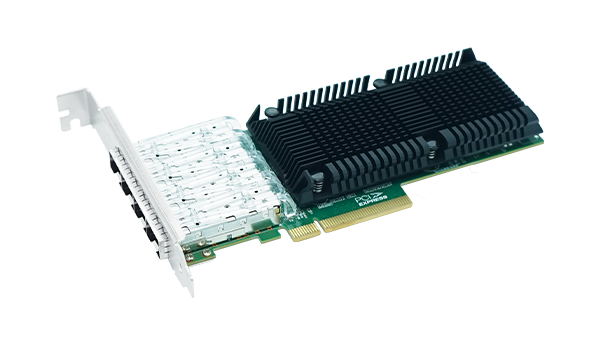

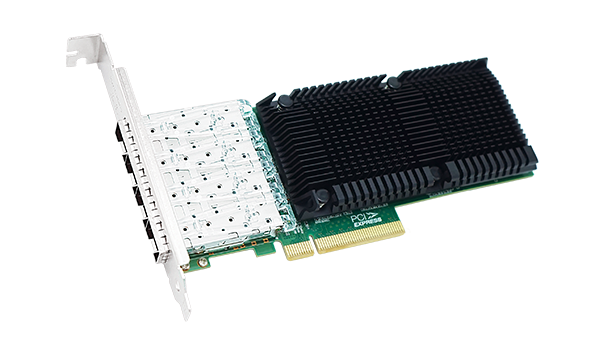

LRES1027PF-4SFP28

PCIe x8 Quad-port 25G SFP28 Ethernet Network Adapter (Intel E810)
Key Features
1. Based on Intel E810 main control chip solution;
2. PCIe4.0 x8 bus design, compatible with PCIe x16 slot;
3. Support 1G, 10G, 25G three data transfer rate.

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products


LRES1027PF-4SFP28 is a PCIe4.0 x8 quad-port 25G ethernet network adapter developed by Linkreal CO.,LTD. based on the Intel E810 master control solution. Adopting Intel 800 series master control, it improves application efficiency and network performance through innovative multi-functional features. With its high-density high transfer rate ports, it is optimized for high-performance system workloads in cloud and communications.


The LRES1027PF-4SFP28 contributes to performance optimization in the cloud and storage, with high-density 25G ports providing multiple on-demand connections, and the Intel 800-series master's Application Device Queuing (ADQ) providing dedicated traffic queuing to reduce latency and increase application throughput while also featuring dynamic device personalization to support protocol-specific traffic acceleration to Improve packet processing efficiency and reduce CPU overhead; the addition of iWARP and RoCE v2 RDMA technology provides high-speed, low-latency, high-throughput connectivity for cloud storage targets.


The LRES1027PF-4SFP28 contains IEEE 1588 PTP v2 Precision Time Protocol support for accurate clock synchronization.

PCIe x8 Dual-port 25G SFP28 Ethernet Network Adapter: LRES1021PF-2SFP28




Specifications



Controller

Intel E810

Cable medium

Fiber Optics

Cable Type

25GBASE-SR25GBASE-LR25GBASE-Cu

10GBASE-SR10GBASE-LR10GBASE-Cu

1GBASE-SR1GBASE-LR1GBASE-Cu

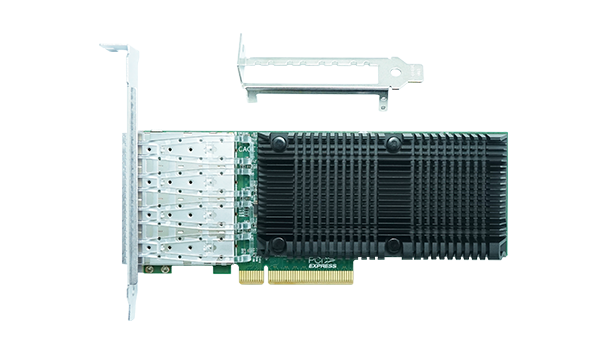

Bracket Height

Low Profile & Full Height

Power (min)

12.084 W

Power (max)

12.936 W

System Support

Windows 10 /11

Windows Server 2016 /2019 /2022

Deepin 20 /20.6 /20.9

VMware ESXi 6.7 /7.0

Galaxy Unicorn V10

NeoKylin 7.6

RHEL/CentOS  7.6 /7.9 /8.2

Ubuntu 16.04.3 /18.04.5

Ubuntu 20.04.1 /22.04.2

SUSE 12 SP5

SUSE 15 SP4

FreeBSD 12.2 /13.2

ZTE New Fulcrum 5.0.5 /3.2.2

Asianux Server v7.0

Zhongke Fangde server operating system

iKuai router

Bus Interface

PCIe v4.0 (16.0GT/s) x8; compatible x16

Data rate per port

1/10/25 Gbps

Connector

4 * 25G SFP28

Power Supply

PCIe

Technical Features



Protocol Support

IEEE 802.3by-2016 25GBASE-X Ethernet

IEEE 802.3ae 10GBASE-X Ethernet

IEEE 802.1Qav

IEEE 802.1Qbu

IEEE 802.1Qbv

IEEE 802.3br

IEEE 1588 PTP v1&v2

IEEE 802.3ad

IEEE 802.3az - Energy Efficient Ethernet

PXE

No

DPDK

Yes

WoL

No

Jumbo Frames

Yes

SR-IOV

Yes

1588 PTP

Yes

UEFI

No

SCAN CHAIN

No

ESD_Contact discharge

±2KV



Environment Features



Operating Temperature

0to 55(32 to 131 )

Storage Temperature

-40 to 70 (-40 to 158 )

Storage Humidity

Maximum: 90% non-condensing relative humidity at 35

Certification

FCC, CE, RoHS


Physical Features



PCB Size(L x W x H)

166.27 x 68.81 x 1.6mm

Package Size(L x W x H)

222 x 147 x 28 mm

Weight(g)

*



LED Indicators



1/10 G

Connection Status

Orange Link

Transfer status

Orange Link + Green Blink



Order Information



P/N

Description

LRES1027PF-4SFP28

 PCIe x8 Quad-port 25G SFP28 Internet Network Adapter

 (Intel E810 Based)



PS: Above details are only for reference, if there is any change,no prior notice.
