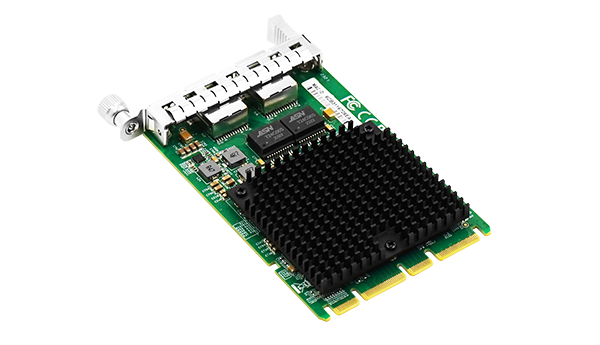

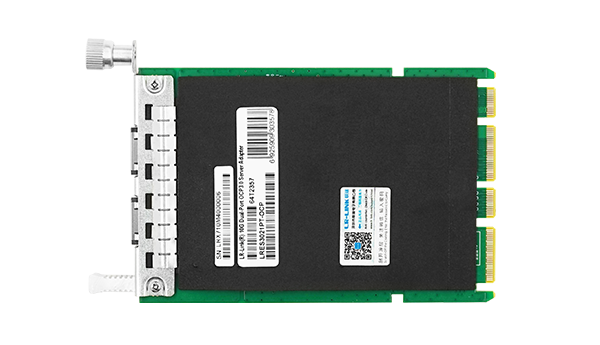

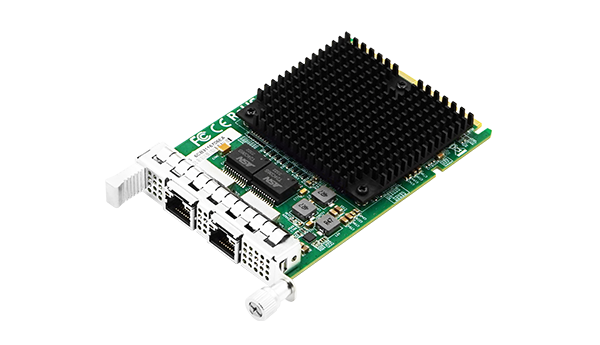

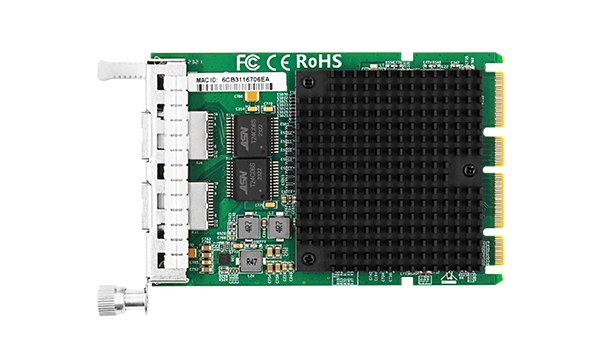

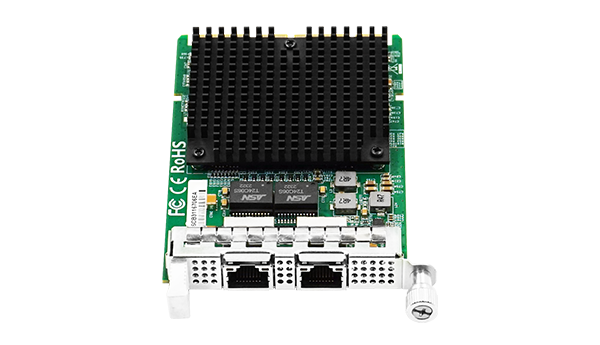

LRES3021PT-OCP

OCP 3.0 Dual-Port 10G Copper Ethernet Network Adapter (Intel X710)
Key Features
1. An Intel solution OCP3.0 SFF structure of the Dual-port 10G Copper Ethernet network adapter
2. With a rate of 10G/5G/2.5G/1000M/100M.

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LRES3021PT-OCP is an OCP3.0 SFF Dual-port copper cable 10G ethernet network adapter independently developed by Linkreal Co., Ltd. based on the Intel X710 main control solution. This adapter is mainly designed for servers and their application equipment, and is also suitable for common servers.


LRES3021PT-OCP is developed based on Intel 10G multi-rate Ethernet MAC+PHY (Media Access Controller and Physical Interface Transceiver) controller, adding 2.5G and 5.0 NBae-T support for G and adaptive link rates. In addition to the self-adaptive capability of up to five different rates, the power consumption under full load is only 7.5W, which brings more excellent performance to the application of the network card.



Specifications



Controller

Intel X710

Cable medium

Copper

Fiber Type

CAT-5

50M(10Gbps);100M(5Gbps);

CAT-6

50M(10Gbps);100M(5Gbps);

CAT-6e

50M(5Gbps);

Bracket Height

SFF

Power (min)

3.696 W

Power (max)

7.14 W

System Support

Windows 8 /8.1 /10 /11

Windows Server 2012 /2016 /2019 /2022

RHEL/CentOS 7.3 /7.6 /7.9 /8.3

Deepin 20 /20.6

Ubuntu 16.04.3 /18.04.5 /20.04.1

SUSE 15.4

FreeBSD 13.2 /12.2

ZTE New Fulcrum 3.2.2 /5.0.5

Asianux Server V7.0

Galaxy Unicorn V10 /V10 SP1

NeoKylin 7.6

Zhongke Fangde desktop operating system 4.0

Zhongke Fangde server operating system

Tongxin UOS 20

Emind

NeoKirin 0.7.5

VMware ESXi 6.7 /7.0

Mikrotik

iKuai router

Bus Type

OCP3.0 SFF

Data rate per port

100/1000Mbps/2.5/5/10Gbps

Connector

2*10G RJ45

Power Supply

OCP



Technical Features



Protocol Support

IEEE 802.3an 10GBASE-T Ethernet

IEEE 802.3bz 2.5/5GBASE-T Ethernet

IEEE 802.3ab 1000BASE-T Ethernet

IEEE 802.3u 100BASE-TX Ethernet

IEEE 802.3az - Energy Efficient Ethernet (EEE)

IEEE 802.3z

IEEE 802.1Q VLANs

IEEE 802.3x

IEEE 1588

PXE

Yes

DPDK

Yes

WoL

No

iSCSI

No

Jumbo Frames

Yes

IEEE 1588

Yes

SR-IOV

Yes

Jumbo data frame MAX

9.7KB

ESD_Contact discharge

±6KV (Class C)

ESD_Air discharge

±8KV (Class C)

ESD test classification

Class A: Normal performance within the limits specified by the manufacturer, commissioner, or purchaser.

Class B: Temporary loss or reduction of function or performance, but can be recovered by itself after the disturbance stops, without operator intervention;

Class C: Temporary loss or degradation of function or performance that requires operator intervention to restore;

Class D: irrecoverable loss of function or performance degradation due to damage to device hardware or software, or loss of data.



Environment Features



Operating Temperature

0to 50(-32 to 122 )

Storage Temperature

-40to 70(-40to 158)

Storage Humidity

Maximum: 90% non-condensing relative humidity at 35

Certification

FCC, CE, RoHS

Physical Features


PCB Size(mm)

115*76*1.6

Package Size(mm)

179*150*30

Weight(g)

*


LED Indicators


100/1000Mbps/

2.5/5Gbps

LINK

Orange Link

ACT

Orange Blink

10Gbps

LINK

Orange Link + Green Link

ACT

Orange Blink + Green Link



Order Information


P/N

Description

LRES3021PT-OCP

OCP 3.0 Dual-Port 10G Copper Ethernet Network Adapter (Intel X710)


PS: Above details are only for reference, if there is any change,no prior notice.
