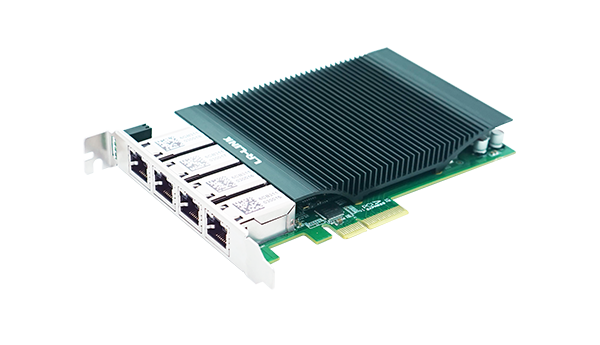

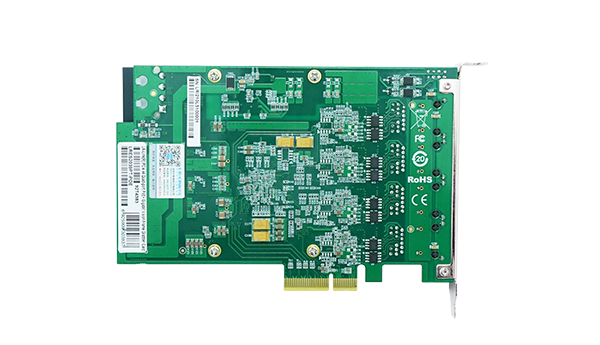

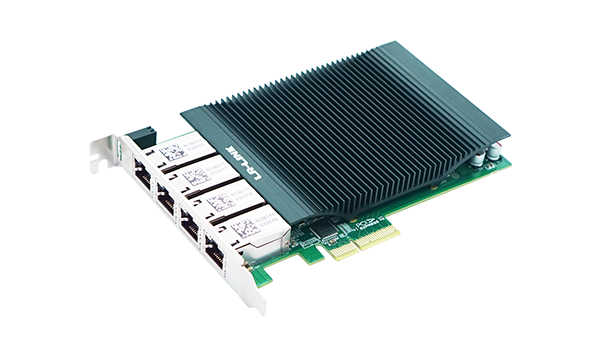

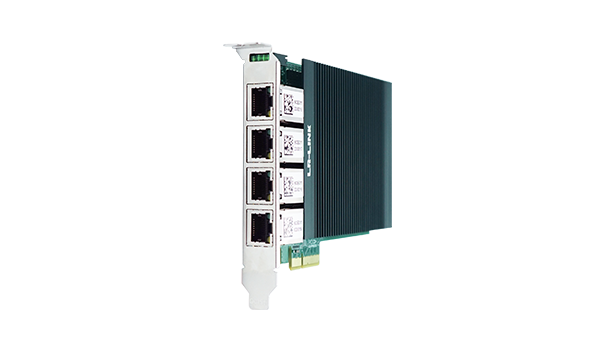

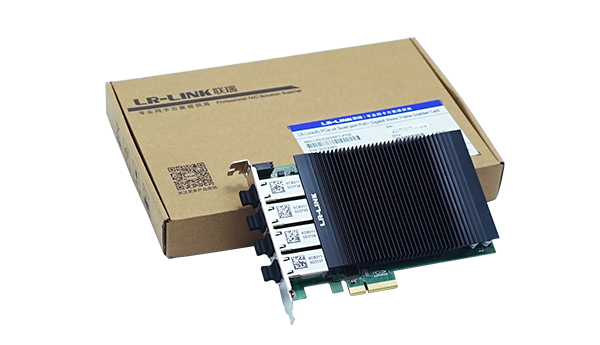

LRES2039PT-POE

PCIe x4 Quad-port PoE+ Gigabit Vision Frame Grabber Card (Intel I210)
Key Features
1. It is based on Intel master chip scheme;
2. A four-port copper cable Gigabit Ethernet PCIe X4 PoE+ Ethernet image acquisition card;
3. It mainly designed for industrial scene visual detection servers and equipment, visual scene client, fast mobile Ethernet data transmission equipment, etc.
4. adaptive to power output required by external equipment;
5. Larger heat sink can effectively solve the problem of heat dissipation of the adapter in the case of poor heat dissipation environment, and effectively ensure the stable operation of the adapter card for a long time.

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LRES2039PT-POE is a four-port copper gigabit ethernet PCIe x4 PoE+ ethernet image acquisition adapter, compatible with PCIe x8 and x16 channels, independently developed by Shenzhen Lianrui Electronics Co., LTD based on Intel chip. The adapter card design is mainly designed to be used in industrial scene visual detection server and equipment, visual scene client, fast mobile ethernet data transmission equipment, etc., but also suitable for ordinary servers.

The adapter has integrated hardware acceleration function and can perform TCP/UDP/IP checksum load and TCP segmentation tasks. Host processing technology can load accelerators to free up CPU resources for processing other applications.



LR-LINK has a unique design for this adapter:

1. The maximum power consumption of single-port PoE+ output is 30W, providing an external large 4-PIN power supply interface.

2. Adaptive to the power output required by the external device: Class 0, Class 1, Class 2, Class 3, Class 4;

3. The adapter card adopts more open RJ45 spacing design;

4. Specially designed for industrial cable access interface, effectively solve the problem of compact network port in industrial sites, while compatible with common cable access;

5. Larger heat sink can effectively solve the heat dissipation problem of the adapter in the case of poor heat dissipation environment, and effectively ensure the stable operation of the adapter card for a long time;

6. Carefully selected thickened gold RJ5 connector to ensure more solid and reliable connection;

7. 4*8-pin RJ45 design can better save motherboard precious PCIe slot resources.

Specifications


Controller

Intel I210

Baffle Height

Full height

Power Consumption

*

PoE power/port

30W(max)

System Support

Windows 7/8/8.1/10

Windows Server 2008 R2/2012 R2/2016 R2/2019 R2;

Linux Stable Kernel version 3.x/4.x or later;

Linux CentOS/RHEL 6.x / 7.x or later;

Ubuntu 14.x/15.x/16.x or later;

VMware ESX/ESXi 4.x/5.x/6.x or later

Bus Type

PCIe v3.0(8.0GT/s) x4compatible with x8x16

Data rate

10/100/1000MbE

Connector

4*8-Pin RJ45


Technical Features


Protocol Support

IEEE802.3at -2009 PoE standard

IEEE802.3af -2003 PoE standard

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3z

IEEE 802.1Q VLANs

IEEE 802.3x

IEEE 1588

IEEE 802.3az - Energy Efficient Ethernet (EEE)

iSCSI

No

WoL

No

Jumbo Frames

Yes

DPDK

Yes

PXE

Yes

FCoE

No


Order Information

P/N

Description

LRES2039PT-POE

PCIe x4 Quad-port PoE+ Gigabit Vision Frame Grabber Card (Intel I210)
