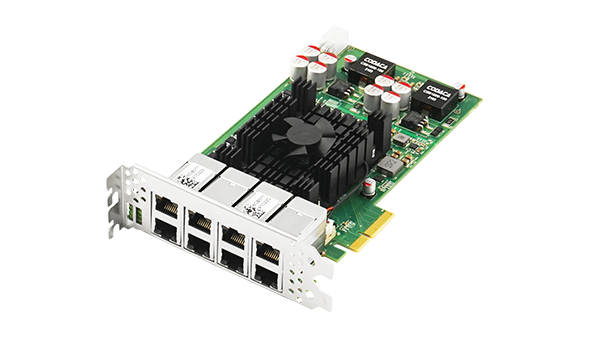

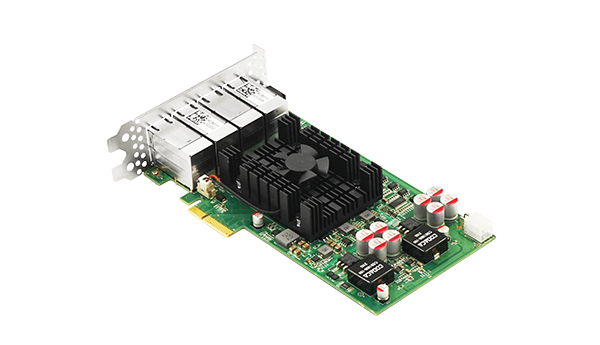

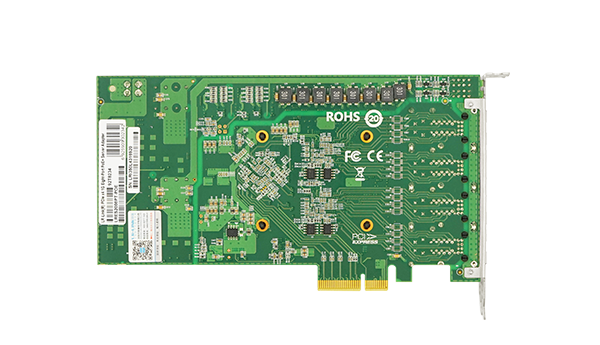

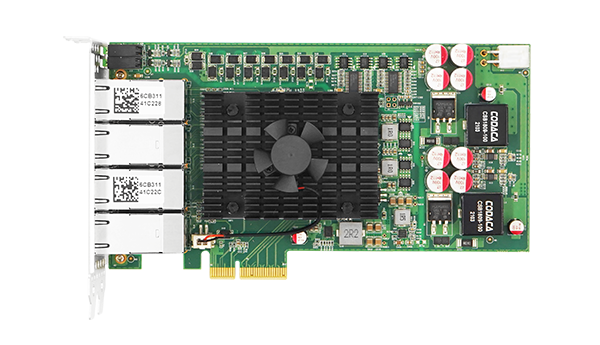

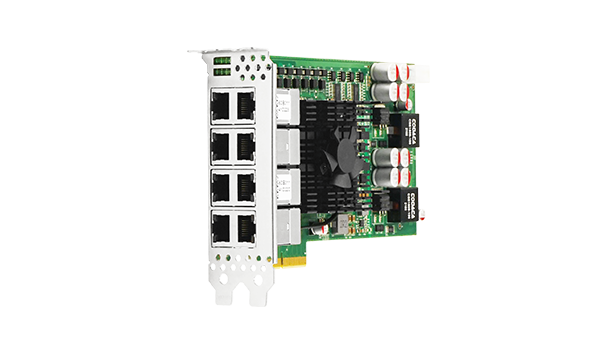

LRES2008PT-PoE

PCIe x4 Eight-port 802.3at PoE+ Gigabit Vision Frame Grabber Card(Intel I350)
Key Features
1. The single port PoE output power consumption is up to 30W, and it provides an external large 4Pin power supply supply interface;
2. Self-adaptive power consumption output required by external equipment;
3. The adapter card adopts a wider RJ45 pitch design;
4. A larger heat sink can effectively solve the problem of adapter heat dissipation in the case of poor heat dissipation environment, effectively guarantee the stable operation of the adapter card for a long time;
5. Carefully selected RJ45 connectors with thickened and heavy gold to ensure more firm and reliable connectivity;
6. The design of eight 8-Pin RJ45 connectors can better save the precious PCIe slot resources of the motherboard.

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LRES2008PT-POE is a PCI Express x4 eight-port PoE + Gigabit Ethernet image acquisition card independently developed by Shenzhen Linkreal Co., Ltd. based on the Intel I350 chip solution, and is compatible with PCIe x8 and x16 channels. The server adapter card design is mainly designed for industrial field visual inspection servers and equipment, visual field clients, fast mobile Ethernet data transmission equipment, etc., and is also suitable for ordinary servers.

This adapter card has integrated hardware acceleration function and can perform TCP / UDP / IP checksum offload and TCP segmentation tasks. The host processing technology can offload the accelerator, and the host processing technology can offload the accelerator, freeing up CPU resources to free up more CPU resources to process other applications. This adapter card is an ideal solution for deploying multiple networks and deploying critical network applications and environments on high-performance servers.

LRES2008PT-POE was developed based on the Intel I350 Ethernet MAC + PHY (Media Access Controller and Physical Interface Transceiver) controller, which can allow eight ports to be fully dual at the same time in the highest Gigabit Ethernet connection The work mode of the worker works to adapt to high-performance network communication, which can expand the bandwidth through link aggregation and save PCI Express channel resources, while not occupying the bus bandwidth.

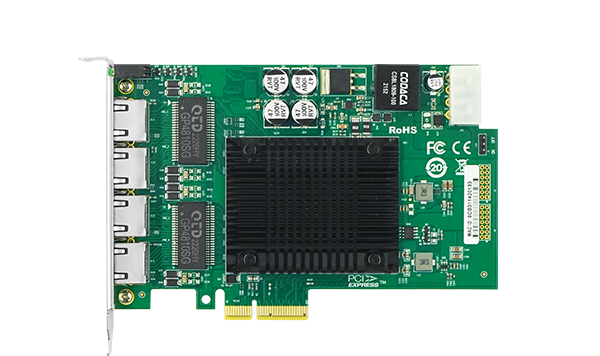

PCIe x4 Quad-port 802.3at PoE+ Gigabit Vision Frame Grabber Card (Intel I350): LRES2004PT-POE




Specifications



Controller

Intel I350

Bracket Height

Full height configuration

Power Consumption

12.0W

System Support

Windows XP/Vista7/8/8.1/10

Windows Server 2003 R2/2008 R2/2012 R2/2016 R2/2019 R2;

Linux Stable Kernel version 2.6.32.x/3.x/4.x/5.x or later;

Linux CentOS/RHEL 6.x / 7.x or later;

Ubuntu 14.x/15.x/16.x or later;

VMware ESX/ESXi 4.x/5.x/6.x or later

Bus Type

PCI Express v2.1 (2.5GT/s & 5.0GT/s) x4，compatible with x8\x16；

Data rate supported per port

10\100\1000M

POE Output（max）

30W / port

Connector

8*RJ45



Technical Features



Protocol Support

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3af Power over Ethernet

IEEE 802.3at Power over Ethernet enhancements

IEEE 802.1Q VLANs

IEEE 802.3x Full Duplex and flow contro

IEEE 802.3az - Energy Efficient Ethernet (EEE)

iSCSI

No

WoL

No

Jumbo Frames

YES

DPDK

Yes

PXE

Yes

FCoE

No


Order Information

P/N

Description

LRES2008PT-POE

PCIe x4 Eight-port PoE + Gigabit Ethernet Frame Grabber 8*RJ45 (Intel I350 Based)



PS: Above details are only for refe
