LRES2013PT-POE

PCIe x4 Quad-port Multifunction Gigabit Ethernet Frame Grabber(Intel I350)
Key Features
The POE monitoring function can perform on-off control and monitoring of voltage, current, temperature and other parameter functions of the POE,

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LRES2013PT-POE is a PCI Express x4 Quad port Gigabit active digital I/O multi-function Ethernet network adapter independently developed by Linkreal Co., Ltd. based on Intel I350 chip solution. It is also compatible with PCIe x8 and x16 channels.

This adapter card design is mainly used in industrial field visual inspection servers and equipment, visual field clients, fast mobile Ethernet data transmission equipment, etc. It is also suitable for ordinary servers, developed on the original POE image acquisition card. The POE monitoring function can perform on-off control and monitoring of voltage, current, temperature and other parameter functions of the POE, so that the great place facilitates the express delivery of information such as the working state of the device, thereby saving a large amount of human and material resources.

The network adapter features integrated hardware acceleration to perform TCP/UDP/IP checksum offloading and TCP segmentation tasks. The host processing technology can offload the accelerator, and the host processing technology can offload the accelerator and release the CPU resources to free up more CPU resources to process other applications. This adapter is the ideal solution for deploying multiple networks and deploying critical network applications and environments on high-performance servers.

Developed on the Intel I350 Ethernet MAC+PHY (Media Access Controller and Physical Interface Transceiver) controller, the LRES2013PT-POE allows all four ports to be fully duplexed in a Gigabit Ethernet network connection. The working mode works to adapt to high-performance network communication, which can expand bandwidth through link aggregation and save PCI Express channel resources without occupying bus bandwidth.

No PoE+ power supply: PCIe x4 Quad-port Gigabit Copper Ethernet Network Adapter: LRES2025PT


Key Features


1. Single-port PoE output power consumption up to 30W, providing an external 4-Pin power supply and supply interface;

2. Adaptive output power consumption required by external devices;

3. The larger heat sink can effectively solve the heat dissipation problem of the adapter in the case of poor heat dissipation environment & effectively ensure the stable operation of the adapter card for a long time;

4. Carefully selected the RJ45 connector with thickened immersion gold to ensure a more secure & reliable connection;

5, 4 8-pin RJ45 connector design can save the motherboard's valuable PCIe slot resources;

6. POE protection & automatic power prediction to protect POE equipment;

7. Provide easy-to-use tools & API functions for POE power management;

8. Monitor the working temperature of the network card (POE & NIC);

9. support 4 isolated digital input-output (2500Vdc isolation voltage);

10. Digital inputs and outputs can be set to linkage, and the delay between input & output can be adjusted by the tool software.

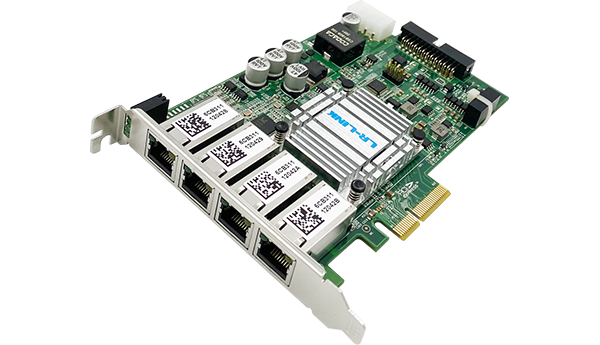

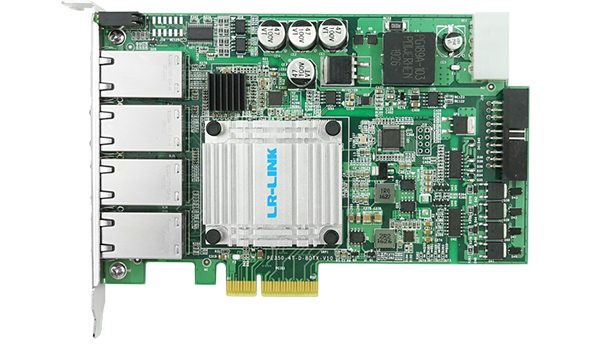

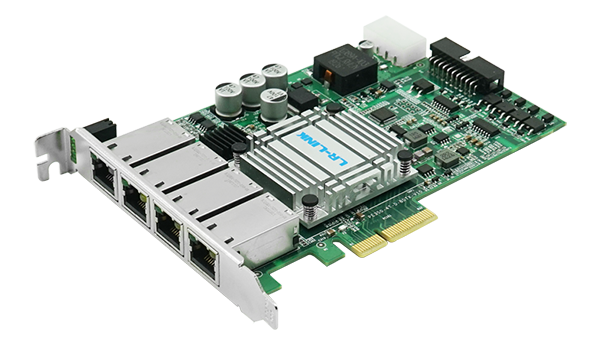

Product Structure



1、 Heat sink

2、 POE indication

3、 4*1G 8-Pin RJ45 connector

4、 4-Pin +12V DC interface

5、 I/O interface

6、PCIe x4 Bus


PS: Above details are only for reference, if there is any change,no prior notice.







                                                          Specifications

Controller

Intel CHip

Transmission medium

Copper

Copper Type

Cat 5E & Cat6 or higher, 1000Base-T up to 100m (POE power min requirement Cat5)

Cat 5E & Cat6 or higher, 100Base-T up to 100m (POE power min requirement Cat5)

Baffle Height

Full-height bracket

Power Consumption

5.0W

PoE Powermax

30W / port

I/O InputDC

+12V~+24V

I/O OutputDC

+24V

I/O OutputDC

5A

PoE Voltage

48V

OS Support

Windows XP/7/8/8.1/10

Windows Server 2003 R2 /2008 R2 /2012 R2 /2016 R2 /2019 R2

Linux Stable Kernel version 2.6.x/3.x/4.x or later

Linux CentOS/RHEL 6.5 / 7.x or later

Ubuntu 14.x/15.x/16.x or later

VMware ESX/ESXi 4.x/5.x/6.x or later

Bus Type

PCIe v2.1 x4compatible with x8 , x16

Data rate per port

10/100/1000Mbps

Connector

4*1G 8-Pin RJ45 Connector



                                                                     Technical Features

Standards compliant

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3af Power over Ethernet

IEEE 802.3at Power over Ethernet enhancements

IEEE 802.1Q VLANs

IEEE 802.3x Full Duplex and flow contro

IEEE 802.3az - Energy Efficient Ethernet (EEE)

iSCSI

No

WoL

No

Jumbo Frames

Yes

DPDK

Yes

PXE

No

FCoE

No

PCI-SIG/SR-IOV

Yes

                                                                     Environment Features

Operating Temperature

0 to 55 (32 to 131)

Storage Temperature

-40 to 70 (-40 to 158)

Storage Humidity

Maximum: 90% non-condensing relative humidity at 35

Certification

FCC, CE, RoHS

                                                                    Physical Features

Size (mm ±0.5mm)

158*120*12

Weight (g ±2g)

*

                                                                    LED Indication

LED indication

PoE, Green bright + Green flashing

1000M, Orange bright + Green flashing

10M/100M, Green flashing

I/O indication, Orange + Green








P/N

Description

LRES2013PT-POE

PCIe x4 Quad port Multifunction Gigabit Ethernet Frame Grabber 4*RJ45Intel CHip Based
