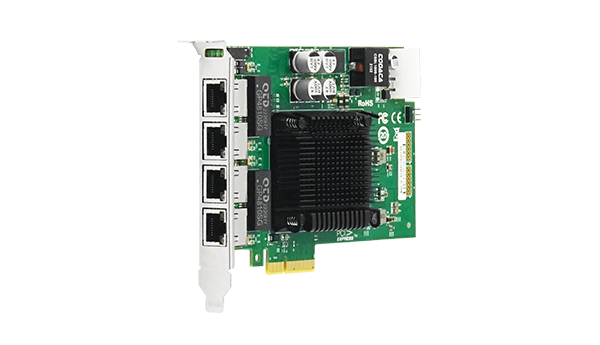

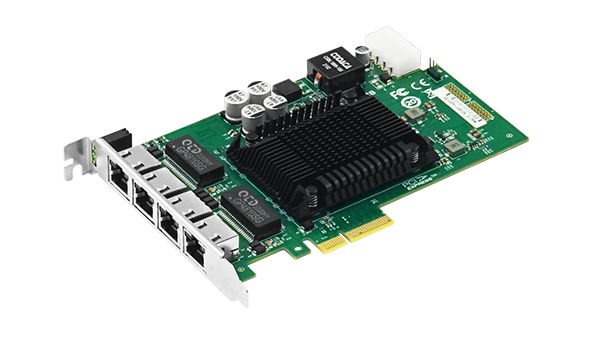

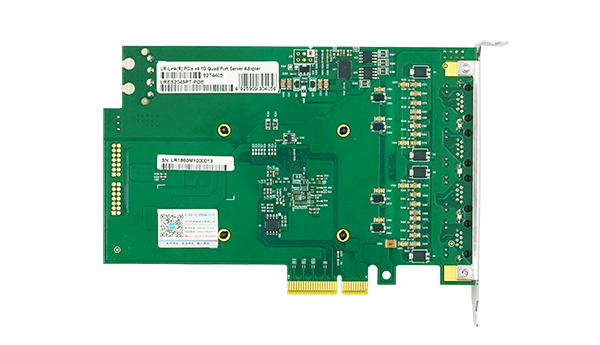

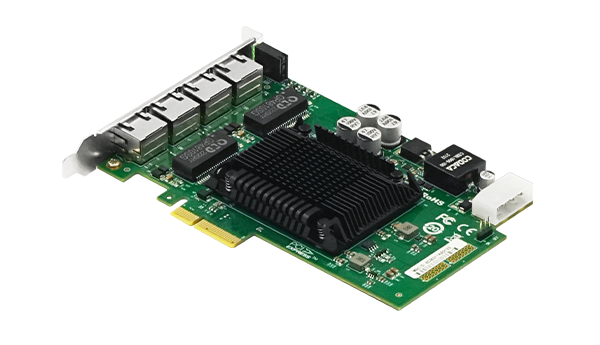

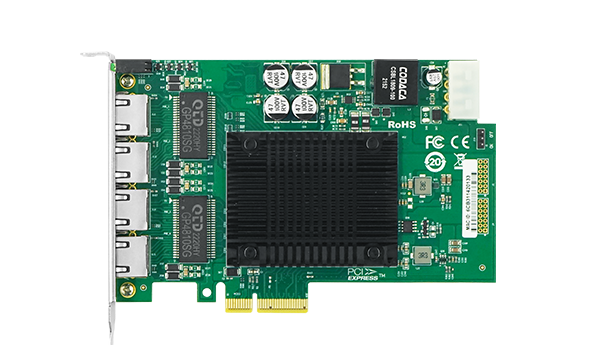

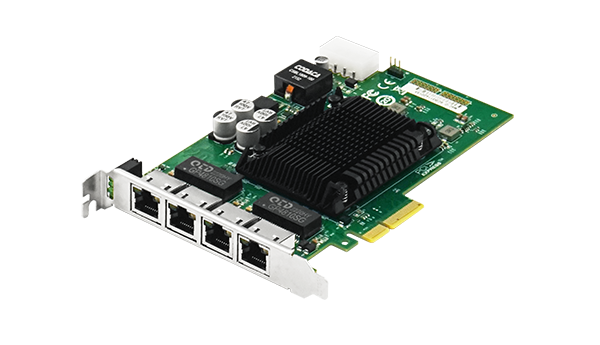

LRES2049PT-POE

PCIe2.1 x4 Quad-port Gigabit PoE+ Ethernet Frame Grabber(WX1860)
Key Features
1. The single-port PoE+ output power consumption is up to 30W, and an external large 4-Pin power supply supply interface is provided;
2. Adapt to the power output required by external devices;
3. The adapter card adopts a wider RJ45 spacing design;
4. The larger heat sink can effectively solve the heat dissipation problem of the adapter in the case of poor heat dissipation environment, and effectively ensure the long-term stable operation of the adapter card;
5. The thickened immersion gold RJ5 connector is carefully selected to ensure more solid and reliable connectivity;
6. The design of four 8-Pin RJ45 can better save the precious PCIe slot resources of the motherboard.

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LRES2049PT-POE is a Quad-port PCIe v2.1 x4 Gigabit PoE+ Ethernet frame capture card independently developed by Shenzhen Lianrui Electronics Co., Ltd. based on the WX1860 controller solution, and is compatible with PCIe x8 and x16. This server adapter card is mainly designed to be used in industrial field visual inspection servers and equipment, visual field clients, fast mobile Ethernet data transmission equipment, etc. It is also suitable for ordinary servers.


The controller used in this adapter fixture is WX1860A4, which belongs to the domestic main control product and has independent controllability. Including data transmission, data network bandwidth, average transmission delay, actual small packet transmission rate and other indicators have reached the industry level.


LR-LINK has made a unique design for this adapter:

1. The single-port PoE+ output power consumption is up to 30W, and an external large 4-Pin power supply supply interface is provided;
2. Adapt to the power output required by external devices;
3. The adapter card adopts a wider RJ45 spacing design;
4. The larger heat sink can effectively solve the heat dissipation problem of the adapter in the case of poor heat dissipation environment, and effectively ensure the long-term stable operation of the adapter card;
5. The thickened immersion gold RJ5 connector is carefully selected to ensure more solid and reliable connectivity;
6. The design of four 8-Pin RJ45 can better save the precious PCIe slot resources of the motherboard.
Specifications

Controller

WX1860

Transmission Medium

Copper

Copper Type

Cat 5E and Cat6:1000Base-T up to 100m (PoE供电最低需求Cat5)

Cat 5E and Cat6:100Base-T up to 100m (PoE供电最低需求Cat5)

Baffle Height

Full height

PoE Output(Max)

30W

PoE Output

PCIe power supply up to 60W, external ATX power supply up to 90W

Connector

4*8-Pin RJ45

Bus Type

PCIe v2.1(2.5GT/s)x4;compatible with x8、x16

Date Rate

100/1000MbE

Power supply

PCIe + ATX


Technical Features

Protocol Support

IEEE802.3af -2003 PoE standard
IEEE802.3at -2009 PoE+ standard
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3z
IEEE 802.1Q VLANs
IEEE 802.3x
IEEE 1588
IEEE 802.3az - Energy Efficient Ethernet (EEE)

PXE

Yes

DPDK

Yes

WoL

No

iSCSI

No

Jumbo Frames

Yes

FCoE

No

Jumbo DataFrame Max

9.5KB

P/N

Description

LRES2049PT-POE

PCIe2.1 x4 Quad-port Gigabit PoE+ Ethernet Frame Grabber(WX1860)


Remarks: The above information is for reference only and is subject to change without prior notice.
