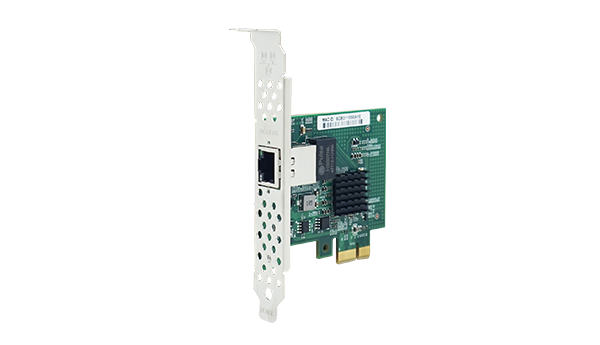

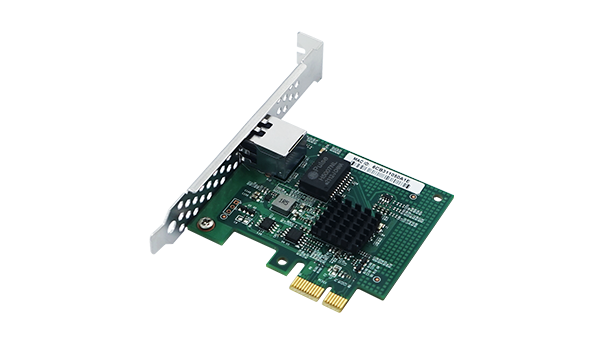

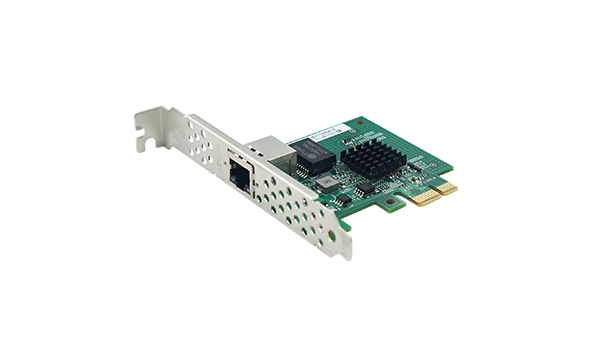

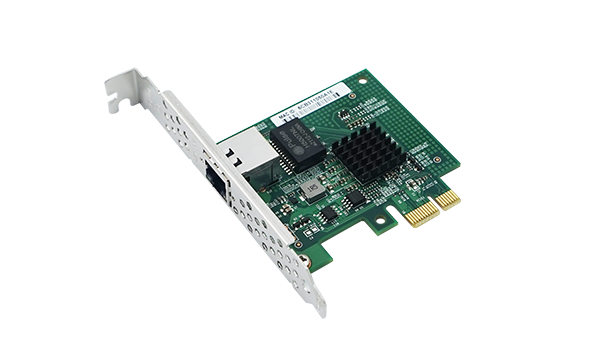

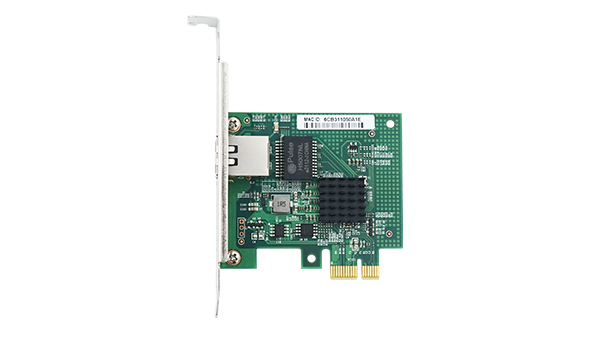

LRES2034PT

PCIe x1 Single-port Gigabit Copper Ethernet Network Adapter (Net-swift Chip Based)
Key Features
1. PCI Express V2.0 X1 Single Port Gigabit Ethernet Network Adapter;
2. Compatible with PCIe X4, X8 and X16 at the same time and PCIe V1.1 downward;
3. Ethernet network card (LRES2034PT) with Net-swift's independent intellectual property rights;
4. It is widely used in network communication of enterprises and institutions, and can also be used in PC server, embedded and other network equipment.

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products



LRES2034PT is a PCI Express V2.0 x1 single port gigabit ethernet network adapter developed by Shenzhen Lianrui Electronics Co., Ltd. on the basis of Net-swift chip. The adapter is compatible with PCIe X4, X8 and X16 at the same time and with PCIe V1.1 downward.

Shenzhen Lianrui Electronics Co., Ltd. launched the Ethernet network card with independent intellectual property rights (LRES2034PT), the network card has a fully integrated gigabit ethernet media access control (MAC), physical layer (PHY) module. It is widely used in network communication of enterprises and institutions, and can also be used in PC server, embedded and other network equipment.

The controller used by LRES2034PT belongs to the main control product of Net-swift, which has autonomous control.Including data transmission, data network bandwidth, average transmission delay, the actual packet transmission rate and other indicators reached the industry level. And has been through X86, SW, FT and other platforms for authoritative testing and application, the overall show excellent performance.





Specifications



Controller

Net-swift Chip

Baffle Height

Full-height & half-height bracket

Power Consumption

2.5W

System Support

Windows 10

Windows Server 2008 R2/2012 R2/2016 R2/2019 R2

CentOS / RHEL 6.6 ~ 7.4

Ubuntu 14.04/16.10

Bus Type

PCIe v2.0 x1compatible with x4/x8/x16

Data rate per port

10/100/1000MbE

Connector

1*1G RJ45



Technical Features



Protocol Support

IEEE 802.3ab 1000BASE-T Ethernet

IEEE 802.3u 100BASE-TX Ethernet

IEEE 802.3az - Energy Efficient Ethernet (EEE)

IEEE 802.3z

IEEE 802.1Q VLANs

IEEE 802.3x

IEEE 1588

iSCSI

No

WoL

Yes

Jumbo Frames

Yes

DPDK

Yes

PXE

Yes

FCoE

No





P/N

Description

LRES2034PT

PCIe x1 Single-port Gigabit Copper Ethernet Network Adapter (Net-swift Chip Based)



PS: Above details are only for reference, if there is any change,no prior notice.
