LREC9210MT

PCIe x1 Single-port Gigabit Desktop Copper Port Network Card (BCM5751)
Key Features
• Single Port 10/100/1000Mbps adapter
• PCI Express (PCIe) 2.0(2.5 GT/s) x1 lane
• RJ45 Connectivity
• Low-cost, low-power
• PXE Support
• Innovative power management features
• MSI,MSI-X support
• Excellent small packet performance for network appliances
• Low profile and full-height bracket

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

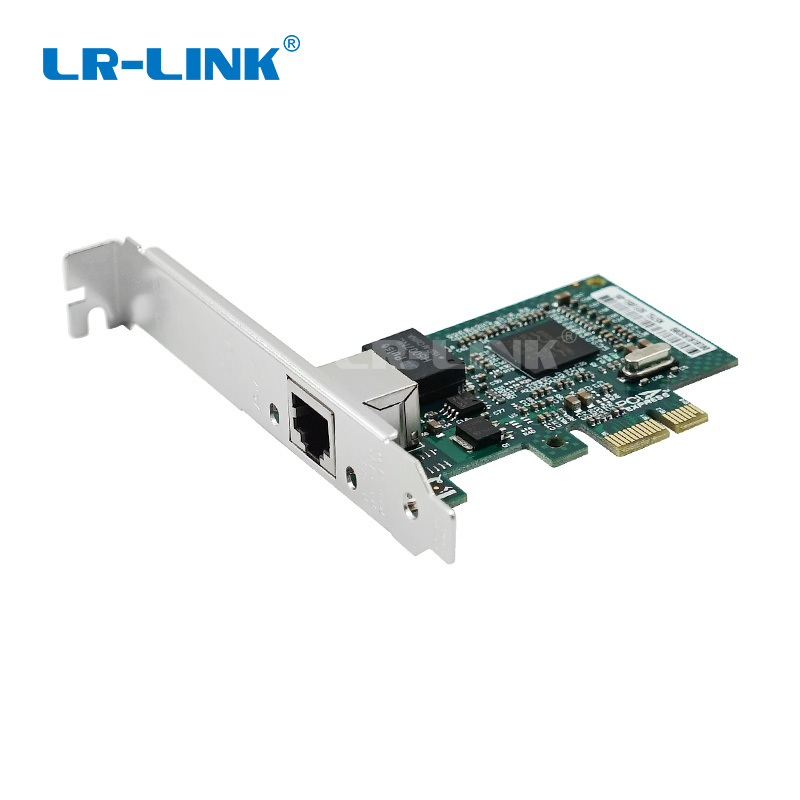

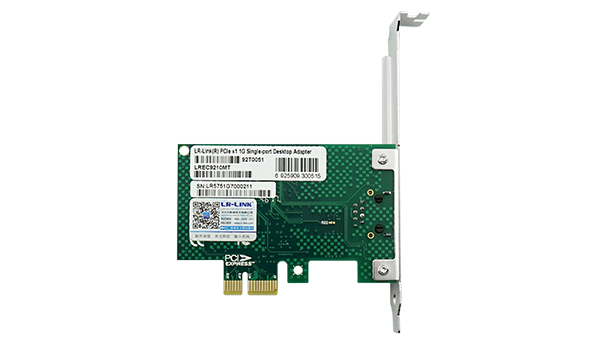

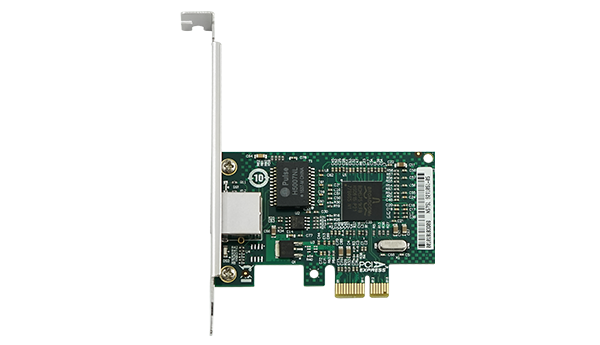

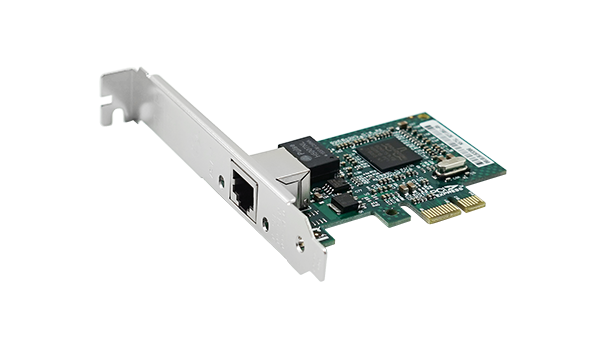

LREC9210MT is PCI Express x1 Gigabit Ethernet desktop network adapter based on BCM5751 solution. The Gigabit adapter adopts a compact design and does not reduce the performance of the NIC.

The adapter adopts Ethernet power management technologies such as Energy Efficient Ethernet and DMA Merge, and has 4 transmit and 4 receive queues, error correction memory protection and other technologies to improve the reliability of data transmission. Manage latency data packets efficiently by combining parallel and pipe-lined logical architectures.

The adapter has high-performance network data transmission on the machine bus architecture, compatible with Ethernet and fast Ethernet to greatly reduce customer deployment and training costs.

Jumbo Frame Transfer, No Frame Loss: LR-LINK PCIe x4 Single-port 10G Copper Ethernet Network Adapter LRES2051PT



Controller

BCM5751

Transmission rate per port

10/100/1000Mbps

Network Standard Physical Layer Interfaces

1000BASE-T:Cat 5eor higherup to 100m

100BASE-Tx:Cat5/5e/6or higherup to 100m

10BASE-T: Cat3/4/5/5e/6or higherup to 100m

Jumbo Frame Support

Up to 9.5 KB

Operating Temperature

0 °C to 55 °C (32 °F to 131 °F)

Network Virtualization

PXE

LED Indicators

1000Mbps/s:Yellow Link and Green Ack,

100Mbps/s:Green Link and Green Ack,10Mbps/s: Not illuminate

Operating System Support

Windows Server2008 / 2008 R2 / 2012 /2012 R2 /2016 R2

Windows 7 / 8 / 8.1 / 10

Linux Stable Kernel version 2.6.x / 3.x / 4.x or later

Linux SLES 10 / 11 or later

VMvare ESX/ESXi 5.x/6.x or later


Model

Description

LREC9210MT

PCIe x1 10/100/1000Mbps RJ45 Broadcom Chipset Network Adapter (BCM5751 Based)


PS: Above details are only for reference, if there are any changes, no inform will have.
