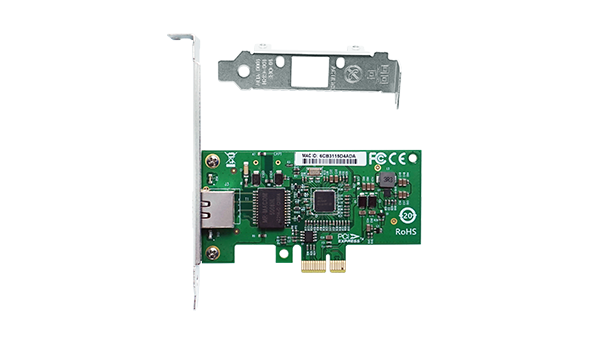

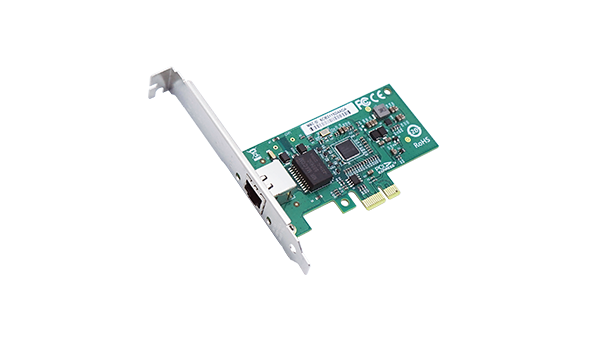

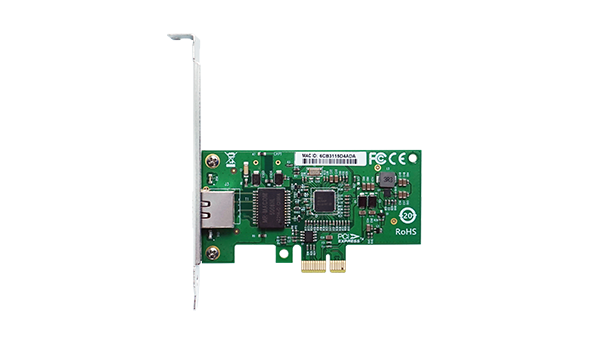

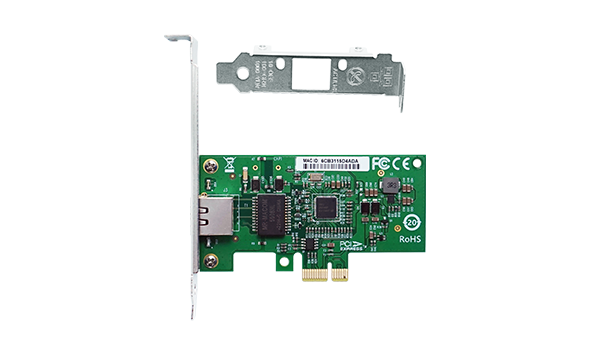

LREC9204CT is a PCIe x1 1G Single-port Desktop Adapter developed by Linkreal Co., Ltd. based on the Intel I210 main control solution. This Gigabit adapter adopts a miniaturized design without reducing the various performance indicators of the network card.
It adopts Ethernet power management technologies such as energy-saving Ethernet and DMA merging, and has 4 transmit and 4 receive queues, error correction memory protection and other technologies to improve the reliability of data transmission. By combining parallel and pipeline logic architecture in together to effectively manage packets with latency.
It achieves high-performance network data transmission on the machine bus architecture and is compatible with Ethernet and Fast Ethernet, thus greatly reducing customer deployment and training costs. Users can easily and quickly migrate the network to Gigabit Ethernet 10/100/1000Mbps. The link rate adapts to the links on the network.
Technical Specifications
Model
LREC9204CT
Controller
Intel I210
Cable medium
Copper
Cable Type
CAT5
50m:1Gbps 100m:1Gbps 150m:1Gbps
CAT6
50m:1Gbps 100m:1Gbps 150m:1Gbps
CAT6E
50m:1Gbps 100m:1Gbps 150m:100Mbps
CAT7
50m:1Gbps 100m:1Gbps
Baffle Configuration
Full height & half height
Bus Type
PCIe v2.1(2.5GT/s) x1 , compatible with x8 , x16
Data Rate
10/100/1000Mbps
Connector
1*RJ45
ESD
Air discharge
±15KV
Contact discharge
±8KV
Lightning surge test
±2kV common mode
Power Consumption(mini)
0.363W
Power Consumption(max)
0.834W
System Support
* Windows 7/8/ 8.1/10/11
* Windows Server 2008/2012/2016
* Windows Server 2019/2022
* RHEL/Centos7.6/7.9/8.2/8.3
* Deepin 15.11/20/ 20.6/ 20.9
* Ubuntu 18.04.5/20.04.1
* Ubuntu 22.04.2/22.04.3
* SUSE 12.5/15.4
* FreeBSD 12.2/13.2
* ZTE New Fulcrum 3.2.2/ 5.0.5
* Galaxy Unicorn v10
* NeoKylin 7.6
* Zhongke Fangde desktop operating system 4.0
* Zhongke Fangde server operating system
* Tongxin UOS 20
* Emind OS
* OpenKylin 0.7.5
* VMware ESXi 6.5/ 6.7/7.0
* Mikrotik
* iKuai router
PXE
Yes
WoL
Yes
Jumbo frame
Yes
SR-IOV
No
1588 PTP
Yes
UEFI
Yes
Standards Compliant
IEEE 802.3ab 1000BASE-T Ethernet
IEEE 802.3u 100BASE-T Ethernet
IEEE 802.3z IEEE 802.3 IEEE 802.1Q VLANs IEEE 802.3x
IEEE 802.3az - Energy Efficient Ethernet (EEE)
Working parameters
Operating Temperature
0 ℃ to 70 ℃ (32 ℉ to 158 ℉)
Storage Temperature
-40 ℃ to 85 ℃ (-40 ℉ to 185 ℉)
Humidity
90% non-condensing relative humidity at 35°C
LED Indicators
10M
Connection Status
Green Link
Transfer status
Green Blink
100M
Connection Status
Green Link + Green Link
Transfer status
Green Blink + Green Link
1G
Connection Status
Green Link + Orange Link
Transfer status
Green Blink + Orange Link
|
Controller |
Intel I210 |
|
Cable medium |
Copper |
|
Cable Type |
1GBase-T, Cat 5e or higher up to 100m |
|
100MBase-T, Cat 5 or higher up to 100m |
|
|
10MBase-T, Cat 3/4/5/5E/6 or higher up to 100m |
|
|
Baffle Configuration |
Full height & half height |
|
Power Consumption |
1.0W |
|
System Support |
Windows 7/8/8.1/10/11 |
|
Windows Server 2008 R2/ 2012 R2/ 2016 R2/2019 R2/2022 R2 |
|
|
Linux Stable Kernel version 2.6.x/3.x/4.x or later; |
|
|
Linux CentOS/RHEL 6.5 / 7.x or later |
|
|
Ubuntu 14.x/15.x/16.x or later |
|
|
FreeBSD 9 / 10 / 11 or later |
|
|
VMware ESX/ESXi 2.6.x/3.x/4.x/5.x or later |
|
|
Bus Type |
PCIe v2.1 x1 , compatible with x4, x8 , x16 |
|
Data Rate |
10/100/1000Mbps |
|
Connector |
1*1G RJ45 |
Technical Features
|
Standards Compliant |
IEEE 802.3ab 1000BASE-T Ethernet IEEE 802.3u 100BASE-T Ethernet IEEE 802.3z IEEE 802.3 IEEE 802.1Q VLANs IEEE 802.3x IEEE 1588 IEEE 802.3az - Energy Efficient Ethernet (EEE) |
|
PXE |
Yes |
|
iSCSI |
No (Can be Set support) |
|
FCoE |
No |
|
DPDK |
Yes |
|
WoL |
Yes |
|
Jumbo frame |
Yes |
|
SR-IOV |
Yes |
Environment Features
|
Operating Temperature |
0 ℃ to 55 ℃ (32 ℉ to 131 ℉) |
|
Storage Temperature |
-40 ℃ to 85 ℃ (-40 ℉ to 185 ℉) |
|
Storage Humidity |
Maximum: 90% non-condensing relative humidity at 35 ℃ |
Physical Features
|
PCB Size(mm) |
99*55.5*1.6 |
|
Weight(g) |
* |
LED Indicators
|
Status indication |
1000Mbps, Orange bright + Green flashing |
|
100Mbps, Green bright + Green flashing |
|
|
10Mbps, Green flashing |
Order Information
|
P/N |
Description |
|
LREC9204CT |
PCIe x1 Single-port Gigabit Copper Ethernet Network Adapter |
Physical properties
|
PCB size(unit:mm) |
137.6*68.9*1.6 |
|
Package size (unit: mm) |
222*147*28 |

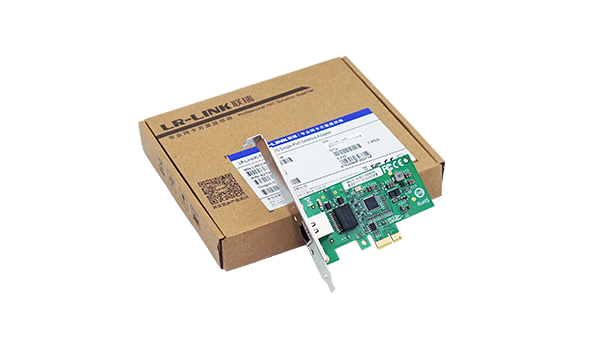

Packing list
|
Baffle specifications |
Full bracket(installed) and Low bracket |
|
Network card |
*1 |
|
Product warranty card |
*1 |
|
Packing |
Carton and Blister box |
