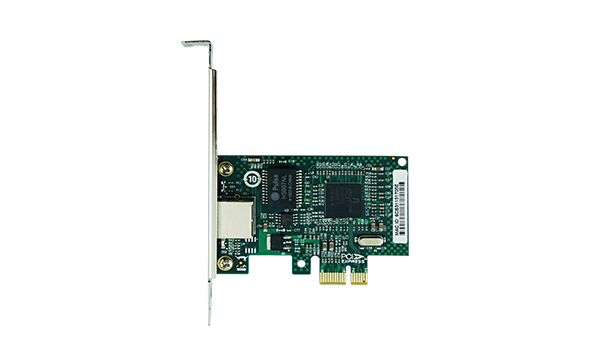

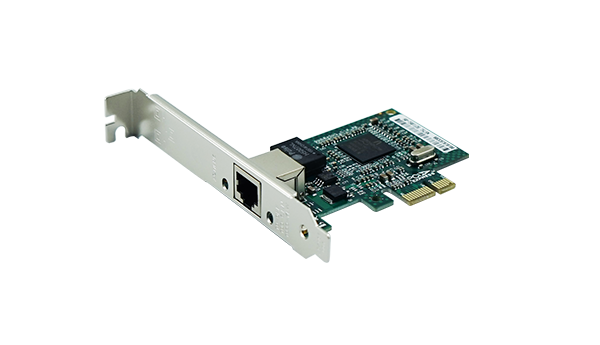

LREC9210PT

PCIe x1 Single-port Copper Gigabit Ethernet Network Adapter (BCM5721)
Key Features
1. Single port gigabit based on Broadcom master control;
2. Compatible with PCIe X4 \ X8 \ X16 channels;
3. Support IPMI 1.5 manageable standard, allowing remote management of devices;
4. Fully integrated 10/100/1000BASE-T Gigabit Ethernet MA and on-chip buffer memory.

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LREC9210PT is a single-port copper cable Gigabit PCIe x1 Ethernet network adapter independently developed by Linkreal Co., Ltd. based on Broadcom master control scheme, compatible with PCIe x4 \ x8 \ x16 channels at the same time.

Broadcom BCM5721 for the LREC9210PT supports the IPMI 1.5 manageable standard, allowing remote management of devices, and a fully integrated 10/100/1000Base-T Gigabit Ethernet MAC with integrated on-chip buffer memory.

Jumbo Frame Transfer, No Frame Loss: LR-LINK PCIe x4 Single-port 10G Copper Ethernet Network Adapter LRES2051PT



                                Specifications



Controller

Broadcom Chip

Baffle Height

Full-height & half-height bracket

Power Consumption

1.5W

System Support

Windows 7/8/8.1/10

Windows Server 2003 R2/2008 R2/2012 R2/2016 R2/2019 R2

Linux Stable Kernel version 2.6/3.x/4.x or later;

Linux CentOS/RHEL 7.x or later;

Ubuntu 16.x or later;

VMware ESX/ESXi 4.x/5.x/6.x or later

Bus Type

PCIe v2.1 x1compatible with x4 \x8 \ x16

Data rate per port

10/100/1000MbE

Connector

1*1G RJ45



                                Technical Features



Protocol Support

IEEE 802.3ab 1000BASE-T Ethernet

IEEE 802.3u 100BASE-TX Ethernet

IEEE 802.3az - Energy Efficient Ethernet (EEE)

IEEE 802.3z

IEEE 802.1Q VLANs

IEEE 802.3x

IEEE 1588

iSCSI

No

WoL

No

Jumbo Frames

YES

DPDK

Yes

PXE

Yes

FCoE

No


P/N

Description

LREC9210PT

PCIe x1 Single-port Gigabit Ethernet Network Adapter (based on Broadcom)



                                                                             PS: Above details are only for reference, if there is any change,no prior notice.
