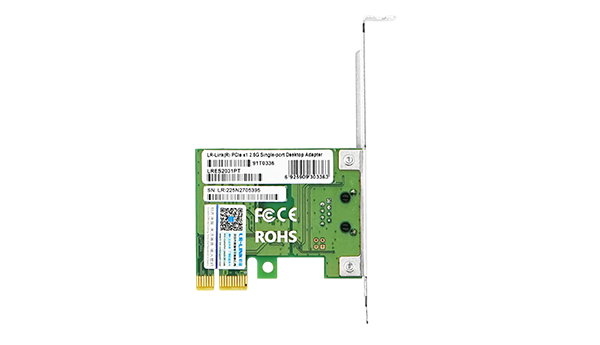

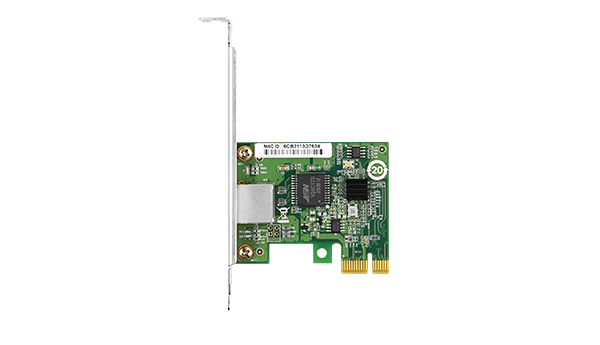

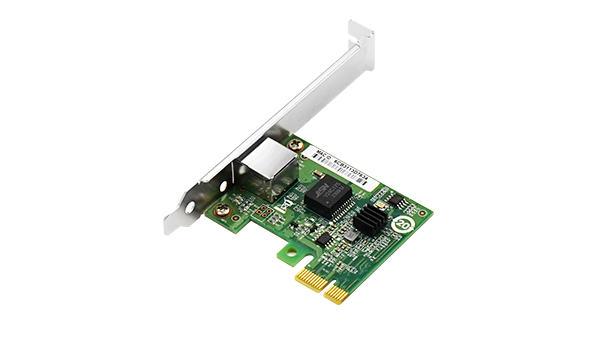

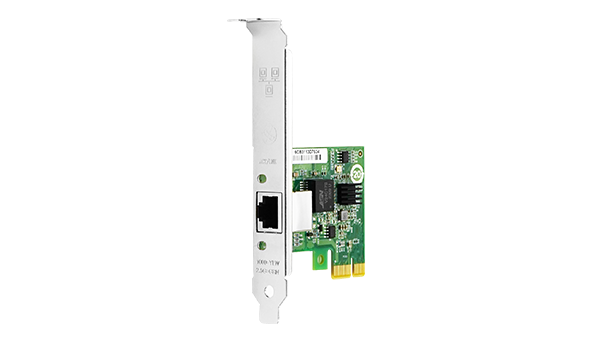

LRES2031PT

PCIe x1 Single-port 2.5G Copper Ethernet Network Adapter (Intel Chip Based)
Key Features
1. A PCIe x1 Single Port 2.5G Ethernet Network Adapter
2. For home network, home storage, network games and other applications that require high quality network to provide better network performance than gigabit network.
3. Widely used in household storage, industrial computer, embedded computer, single board computer, digital multimedia and other applications.

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products



LRES2031PT is a PCIe x1 single port 2.5G Ethernet network adapter developed by Shenzhen Lingrui Electronics Co., Ltd. based on Intel master control scheme. This adapter provides better network performance than gigabit network for high quality network requirements such as home network, home storage, online games and other applications. Solve in do not need to link but the use of gigabit can not be satisfied with the occasion.

By using the card to add a 2.5G speed network link port on the computer, to achieve faster than gigabit network speed, better cost-effective network card; It can be widely used in household storage, industrial computer, embedded computer, single board computer, digital multimedia and other applications.





Specifications



Controller

Intel Chip

Baffle Height

Full-height & half-height bracket

Power Consumption

2.0W

System Support

Windows 10




* AMD is not support

Bus Type

PCIe v3.1 x1compatible with x4/x8/x16

Data rate per port

100MbE/1/2.5GbE

Connector

1*2.5G RJ45



Technical Features



Protocol Support

IEEE 802.3bz 2.5GBASE-T Ethernet

IEEE 802.3ab 1000BASE-T Ethernet

IEEE 802.3u 100BASE-TX Ethernet

IEEE 802.3az - Energy Efficient Ethernet (EEE)

IEEE 802.3z

IEEE 802.1Q VLANs

IEEE 802.3x

IEEE 1588

iSCSI

No

WoL

Yes

Jumbo Frames

YES

DPDK

Yes

PXE

Yes

FCoE

No






P/N

Description

LRES2031PT

PCIe x1 Single-port 2.5G Copper Ethernet Network Adapter (Intel Chip Based)



PS: Above details are only for reference, if there is any change,no prior notice.






You can download the driver from the URL,


https://drive.google.com/file/d/1CGRmdpbLnpponOBkr9taA5F-oCdruxBS/view?usp=sharing
