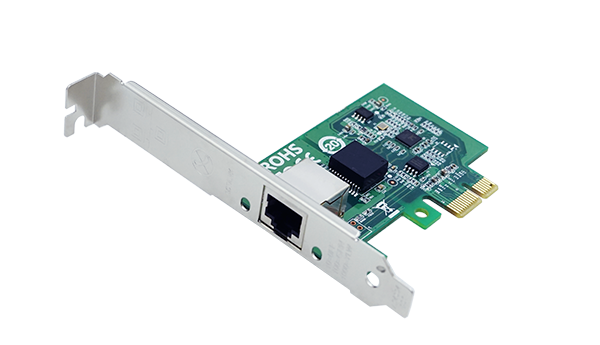

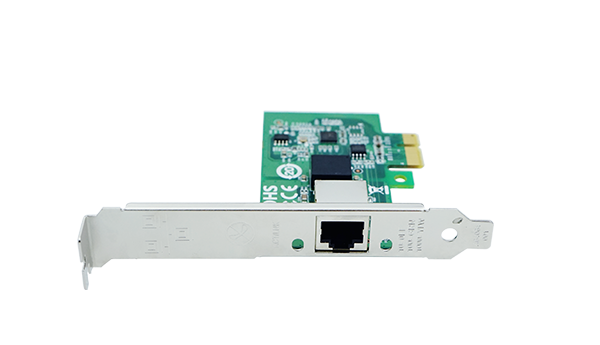

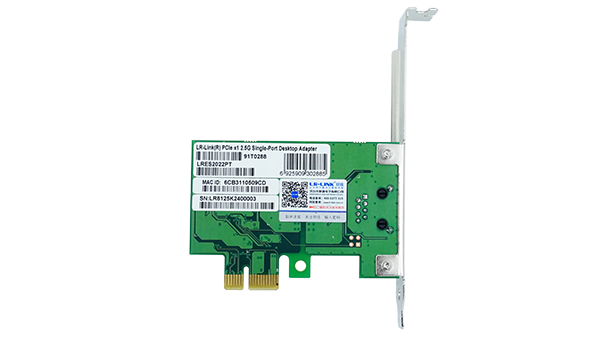

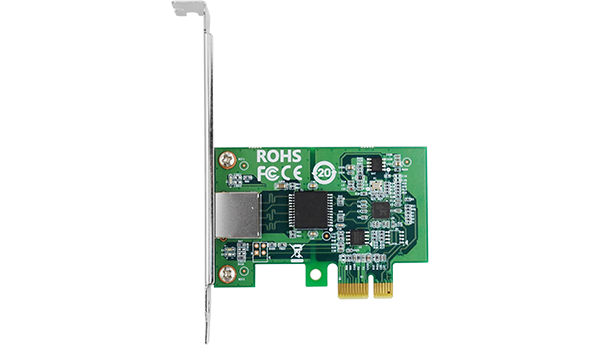

LRES2022PT

PCIe x1 Single-port 2.5G Copper Ethernet Network Adapter (RTL8125BG)
Key Features
•Low cost, low power,energy-efficient Ethernet and DMA merging.
•Single-port 2500MBASE-T controller with integrated MAC and PHY
•2500Mbps Ethernet networks transition.
•PCI Express x1 interface

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LRES2022PT is a PCIe x1 2.5G Ethernet network adapter independently developed by Linkreal Co., Ltd. based on the Realtek RTL8125BG solution. This adapter card has a universal and low-cost way to deploy 2.5GbE Ethernet network connections. It can provide the network with four speed links: 2.5 Gbps, 1G, 100Mbps, 10Mbps. This product is designed to be used without the need for a 10 Gigabit port but a Gigabit network port, which can solve the computer's link demand for network speed.

This network adapter card adds a 2.5GBASE-T technology Ethernet port to the computer through the PCIe x1 slot. Can be widely used in industrial control computers, embedded computers, single board computers, digital multimedia and other network equipment, can achieve Windows, Linux and other system support. Through the existing Gigabit Ethernet network, 2.5 Gigabits, which is up to 250% higher than the Gigabit network speed, is realized, and an efficient, energy-efficient and cost-effective multi-gigabit Ethernet solution is realized.

PCIe x1 Single-port 2.5G Copper Ethernet Network Adapter (Intel I225): LRES2031PT


                                    Specifications

Controller

Realtek RTL8125BG

Baffle Height

Full height & half height

Transmission medium

Copper

Cable type

2500Base-T/1000Base-T Cat 5E/6 or higher,up to 100m

100Base-Tx Cat5/5E/6 or higher,up to 100m

10Base-T Category 3/4/5/5E/6 or higher,up to100m

Power Consumption

1.0W

System Support

Windows 7/8/8.1/10

Windows Server 2008 R2/2012 R2/2016 R2/2019 /2019 R2;

Linux Stable Kernel version 2.6.32/3.x/4.x or later;

Linux CentOS/RHEL 6.5 / 7.x or later;

Ubuntu 14.x/15.x/16.x or later;

VMware ESX/ESXi 4.x/5.x/6.x or later

Bus Type

PCIe x1

Data rate supported per port

10/100/1000/2500MbE

Connector

1*2.5G RJ45


                                    Technical Features

Standards compliant

IEEE 802.3bz (2.5GBASE-T)

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3i 10BASE-T

IEEE 802.3x Full Duplex and flow control

IEEE 802.3ad Link aggregation for parallel links

IEEE 802.1Q VLAN

IEEE 1588

IEEE 802.3az - Energy Efficient Ethernet (EEE)

iSCSI

No

WoL

Yes

Jumbo Frames

YES

DPDK

Yes

PXE

Yes

FCoE

No




P/N

Description

LRES2022PT

PCIe x1 Single-port 2.5G Copper Ethernet Network Adapter (Realtek Chip Based)
