LRES2001PT-POE

PCIe x1 Single-port 802.3at PoE+ Gigabit Vision Frame Grabber Card (Intel I210)
Key Features
• Single Port 10/100/1000Mbps Adapter
• PCI Express (PCIe) v2.1(2.5 GT/s) x1 lanes
• Single-port PoE output power consumption up to 30W
• Supports PCI-Express +12V input
• Powered Device (PD) auto detection and classification per PoE+ port
• Support 802.3at and IEEE 802.3af
• Selected RJ45 connector with thickened gold to ensure more reliable connection

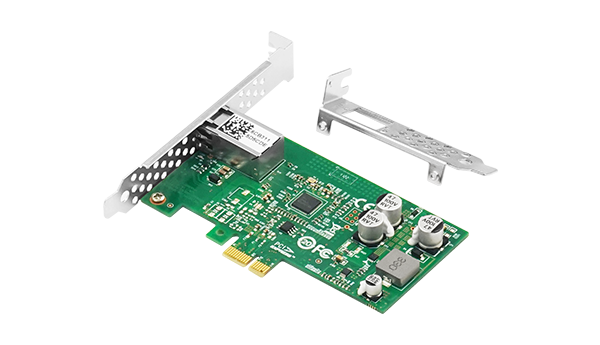

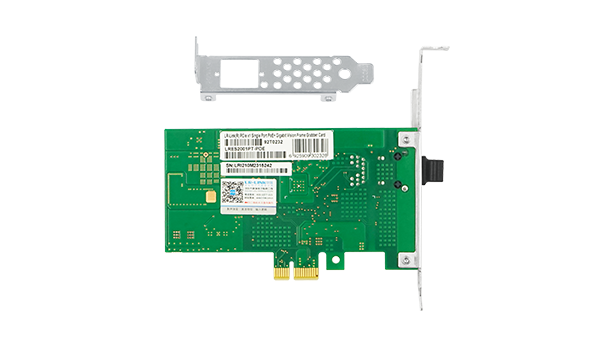

• Low profile and full-height bracket
• special screw lock to make sure the connection more stable

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

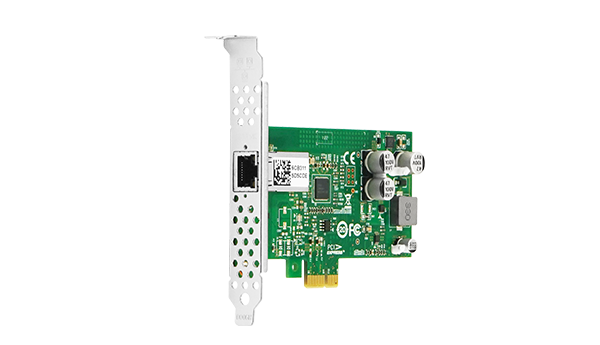

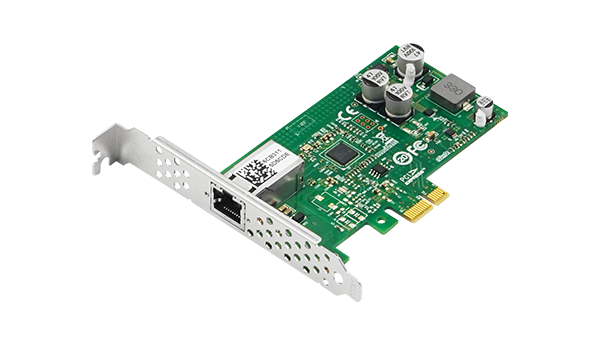

LRES2001PT-POE is single-port copper Gigabit Ethernet PCI Express x1 PoE industrial adapter based on Inetl I210 chip, compatible with PCIe x4, x8, and x16 channels. This server adapter is mainly designed for industrial field visual inspection servers and devices, visual field clients, fast Ethernet data transmission equipment etc, as well as general servers.


LRES2001PT-POE allows power to be supplied to connected devices, such as PoE-based Gigabit cameras in machine vision inspection systems, without the need to use separate PoE injectors for those applications.The interface designed for industrial-grade cable accessm with LR-LINK customized industrial cable can more securely lock the cable and network port, effectively solve the problem of unstable network ports and cable connections in industrial sites, also compatible with ordinary cable access.

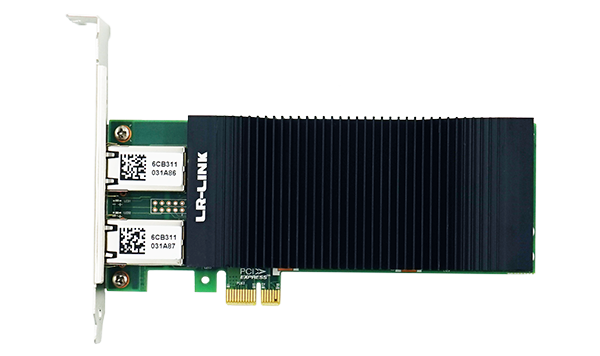

Dual-port Gigabit Frame Grabber: LR-LINK PCIe2.1 x4 Dual-port Gigabit Ethernet Network Adapter LRES2024PT


Controller

Intel I210

Transmission Rate Per Port

10/100/1000 Mbps

Network Standard Physical Layer Interfaces

1000BASE-T:Cat 5eor higherup to 100m

100BASE-Tx:Cat5e/6or higherup to 100m

Jumbo Frame Support

Up to 9.5 KB

Operating Temperature

0 °C to 55°C (32 °F to 131°F)

Boot Option and Virtualization

PXE support, Intel® VT-c

LED Indicators

1000Mbps/s:Yellow Link and Green Ack,

100Mbps/s:Green Link and Green Ack

POE Output

Supports PoE+ ports up to 30W at 48V DC

Operating System Support

Windows Server2008 /2008 R2 / 2012 /2012 R2 /2016 R2

Windows7 / 8 / 8.1 / 10

FreeBSD 9 /10or later

Linux Stable Kernel version 2.6.x/ 3.x/ 4.xor later

VMwareESX/ESXi5.x/6.xor later



P/N

Description

LRES2001PT-POE

PCIe x1 Single Port 802.3at PoE+GigE Vision Frame Grabber Card Intel I210 Based (1*RJ45)

HFC5-1L Cable-3M/5M
Highly Flexible Cat.5e LAN cable, Single screw lock-type, 3M, 5M
HFC5-2L Cable-3M/5M
Highly Flexible Cat.5e LAN cable, Dual screw lock-type, 3M, 5M


PS: The above details is just for reference, if there is any change, no inform will have.
