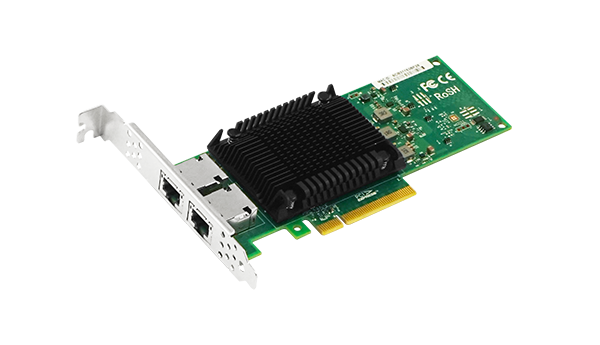

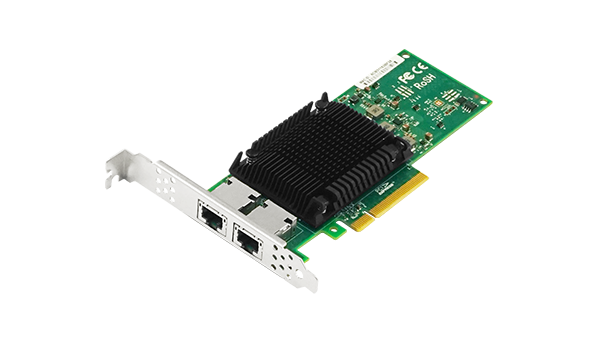

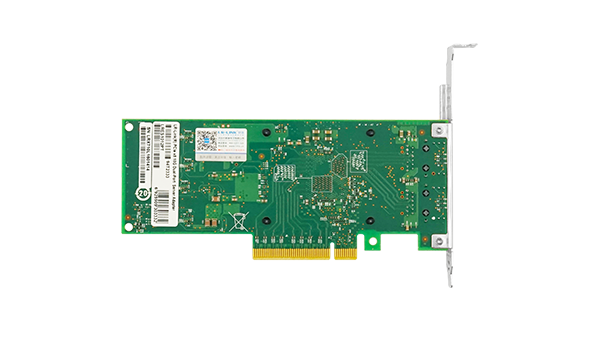

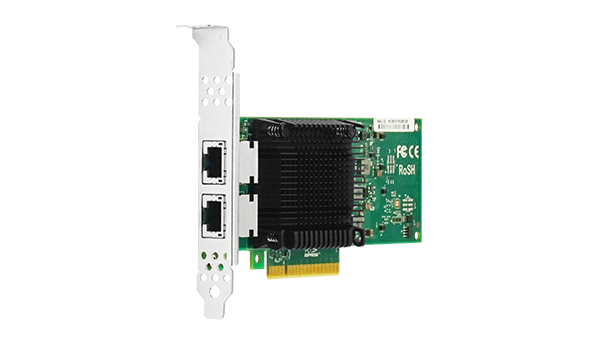

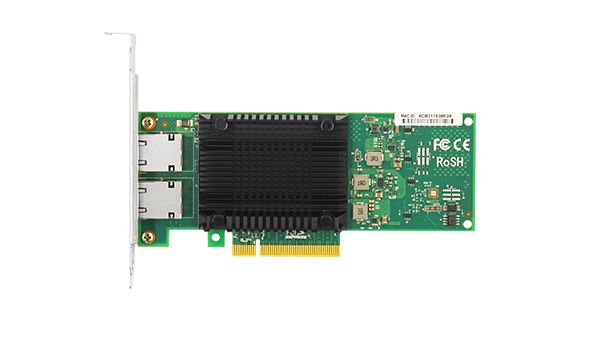

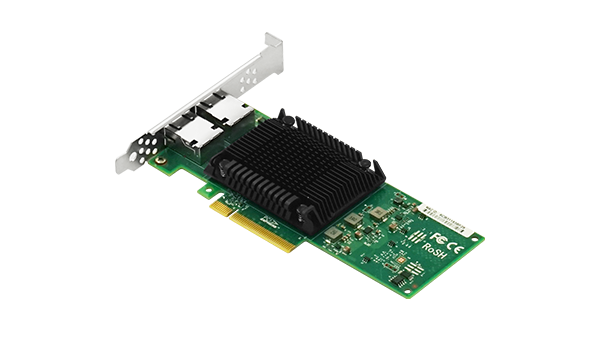

LRES1012PT

PCIe x8 Dual-port 10G Copper Ethernet Network Adapter (Intel Chip Based)
Key Features
1. Based on Intel master dual port 10G Ethernet network adapter,
2. Compatible with PCIe X16 channels.
3. This adapter applies to the server and its application devices.
4. NBAE-T support with 2.5G and 5.0G and adaptive link rates.

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products



LRES1012PT is a dual-port copper cable 10G ethernet network adapter independently developed by Shenzhen Liangrui Electronics Co., Ltd. based on Intel chip, which is compatible with PCIe x16 channel. The adapters are designed primarily for use on servers and their application devices, as well as for common servers.

The LRES1012PT was developed based on Intel's dual-port 10G multi-rate ethernet MAC+PHY (Media Access Controller and Physical Interface Transceiver) controller, adding 2.5G and 5.0G NBAE-T support with adaptive link rates to the previous generation of 10 Gigabit ports. In a variety of rate adaptive but also greatly reduce the power consumption to bring better performance.




                                                   Specifications



Controller

Intel Chip

Baffle Height

Full-height & half-height bracket

Power Consumption

9.6W

System Support

Windows 10

Windows Server 2016 R2/2019 R2

Linux Stable Kernel version 3.x/4.x or later;

Linux CentOS/RHEL 7.x or later;

Ubuntu  16.x or later;

VMware ESX/ESXi 4.x/5.x/6.x or later

Bus Type

PCIe v3.0 x8compatible with x16

Data rate per port

100/1000MbE/2.5/5/10GbE

Connector

2*10G RJ45





                                                Technical Features



Protocol Support

IEEE 802.3an 10GBASE-T Ethernet

IEEE 802.3bz 2.5/5GBASE-T Ethernet

IEEE 802.3ab 1000BASE-T Ethernet

IEEE 802.3u 100BASE-TX Ethernet

IEEE 802.3az - Energy Efficient Ethernet (EEE)

IEEE 802.3z

IEEE 802.1Q VLANs

IEEE 802.3x

IEEE 1588

iSCSI

No

WoL

No

Jumbo Frames

YES

DPDK

Yes

PXE

Yes

FCoE

No







P/N

Description

LRES1012PT

PCIe x8 Dual-port 10G Copper Ethernet Network Adapter (Intel Chip Based)



                                                                                                                       PS: Above details are only for reference, if there is any change,no prior notice.






You can download the driver from the URL,


https://drive.google.com/file/d/1CGRmdpbLnpponOBkr9taA5F-oCdruxBS/view?usp=sharing
