LRXP0010-Y3ATR

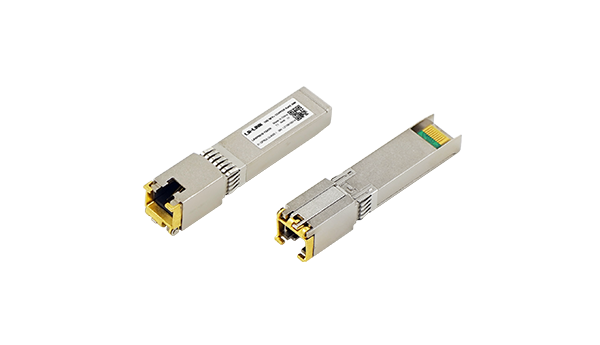

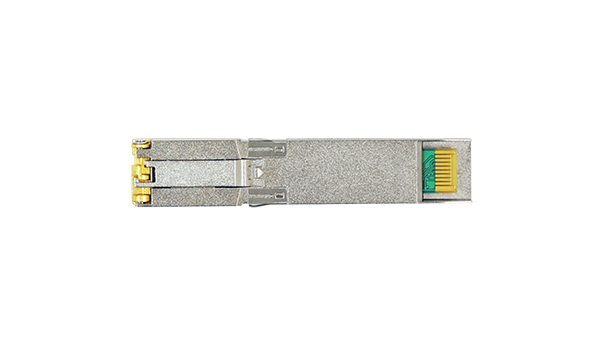

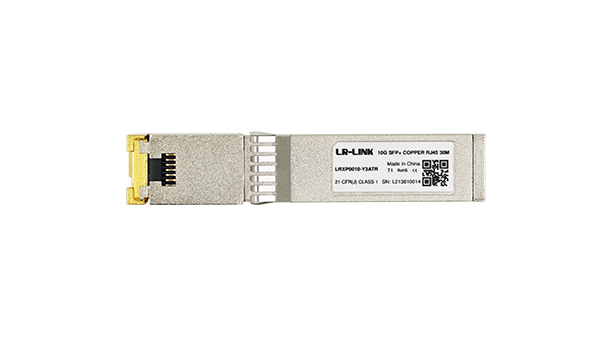

LR 10G SFP+ 30m 3.3V RJ45 Interface Fiber Module with TTL
Key Features
§ Intra-rack and inter-rack links of Ethernet data center;
§ Enterprise network;

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products


R-LINK's 10G electrical port SFP+ fiber module adopts ultra-low power consumption and longer transmission distance. The module adopts a small hot-swappable RJ45 interface module package, conforms to the 10 Gigabit ethernet standard and SFP multi-source agreement (MSA) standard, supports 10G transmission rate, and uses Cat 6a/7 category twisted pair network cable for transmission It can be compatible with various brand switches, network adapters and other equipment and instruments, and is widely used in data centers and corporate networks. Comply with RoHS 2.0, Reach, CE and FCC certification requirements. This product is based on a standard RJ45 interface, compatible with traditional networks, and can increase the Ethernet transmission rate without changing the existing wiring. It is a low-cost preferred solution for ethernet upgrades.


                                Operating Parameter

Parameter

Symbol

Mix

Typ

Max

Unit

Power Supply

VCC

3.14

3.3

3.46

V

Storage Temperature

TS

-40

-

85

oC

Operating Temperature

TOP-com

0

-

70

oC

Bit Error Rate (10G)

BER





10-12



Transmission Rate (per channel)

DR



10



Gbps

Operating Current

Icc

-

750

840

mA

Inrush Current

Isurge





30

mA

Power

PDis

-

2.5

2.8

W

Size

Mm



69.2*13.9*13.4



mm

Weight

g



26



g


P/N

Describe

LRXP0010-Y3ATR

LR 10G SFP+ 30m 3.3V RJ45 Interface Fiber Module with TTL



PS: Above details are only for reference, if there is any change,no prior notice.
