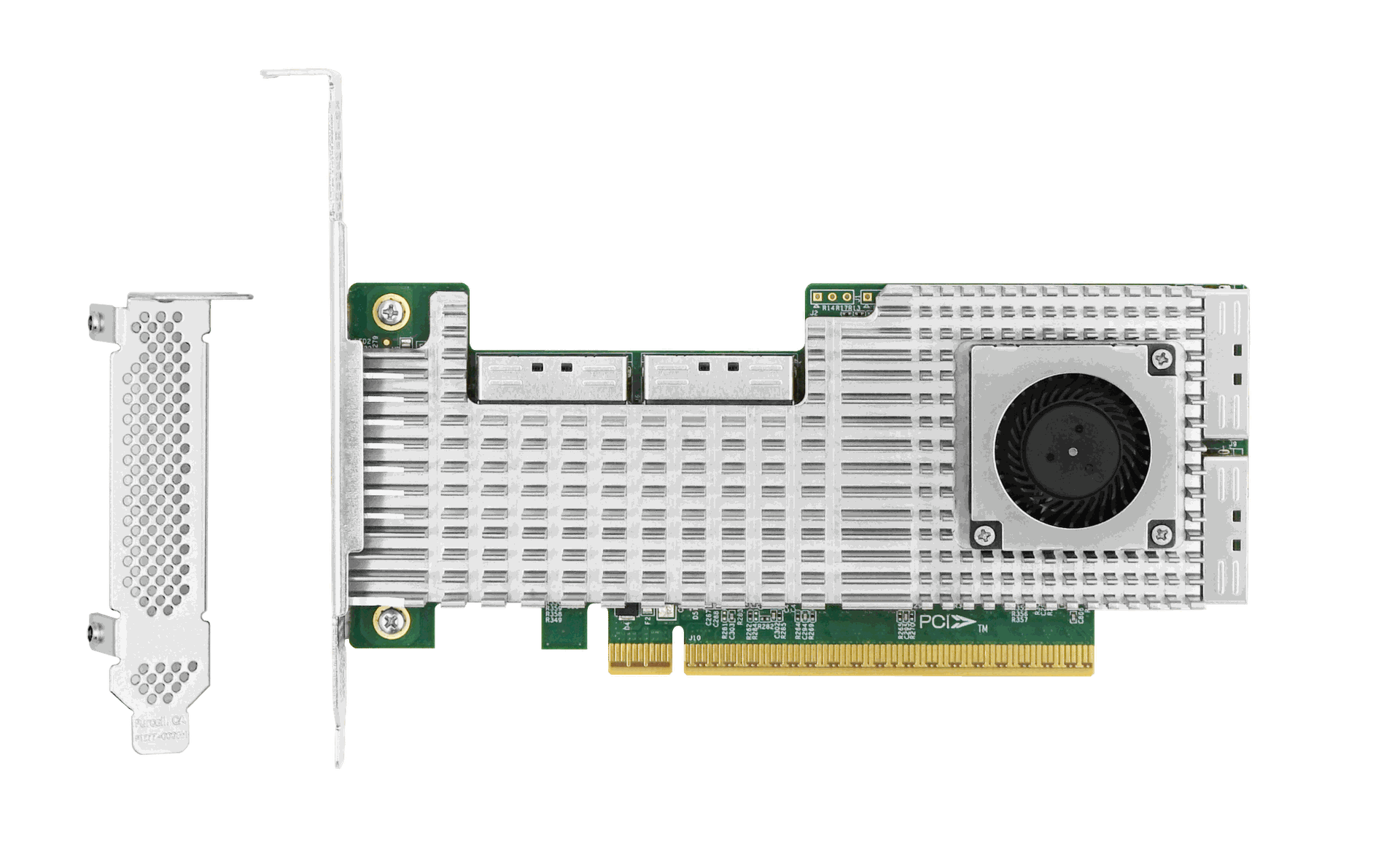

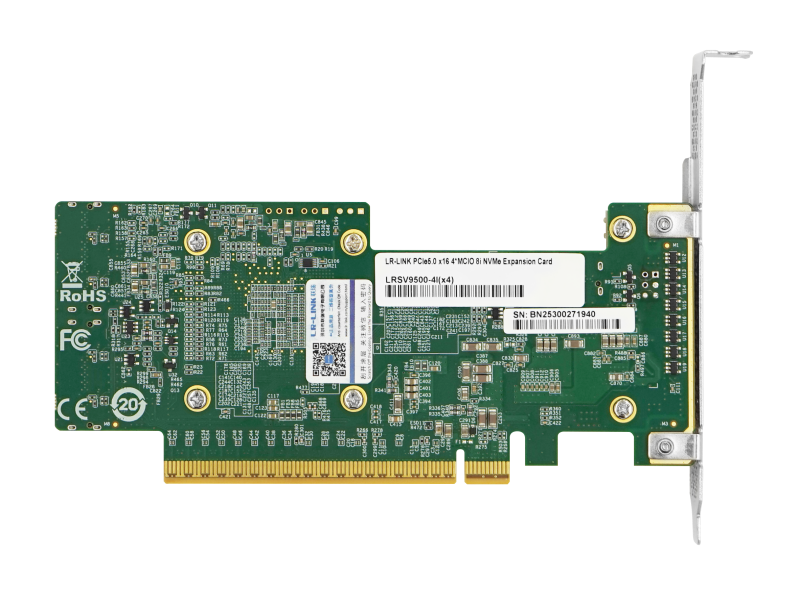

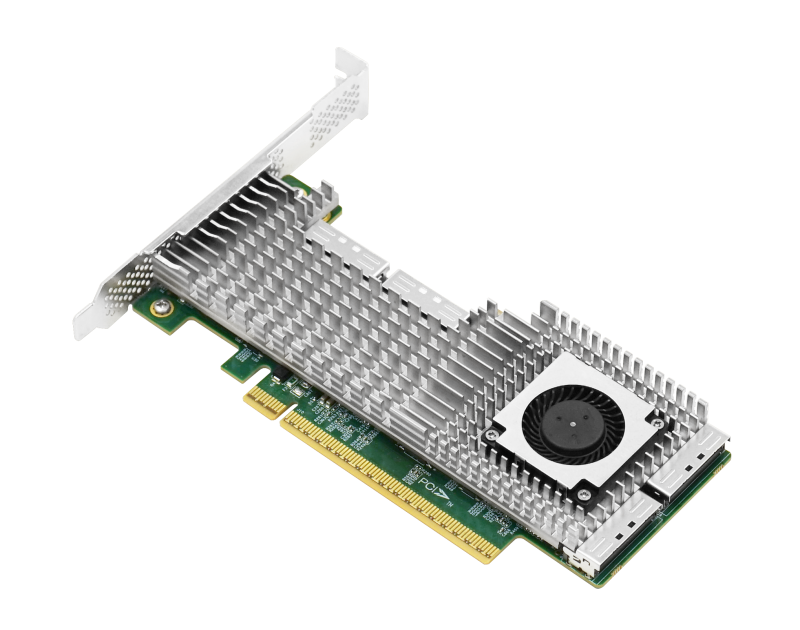

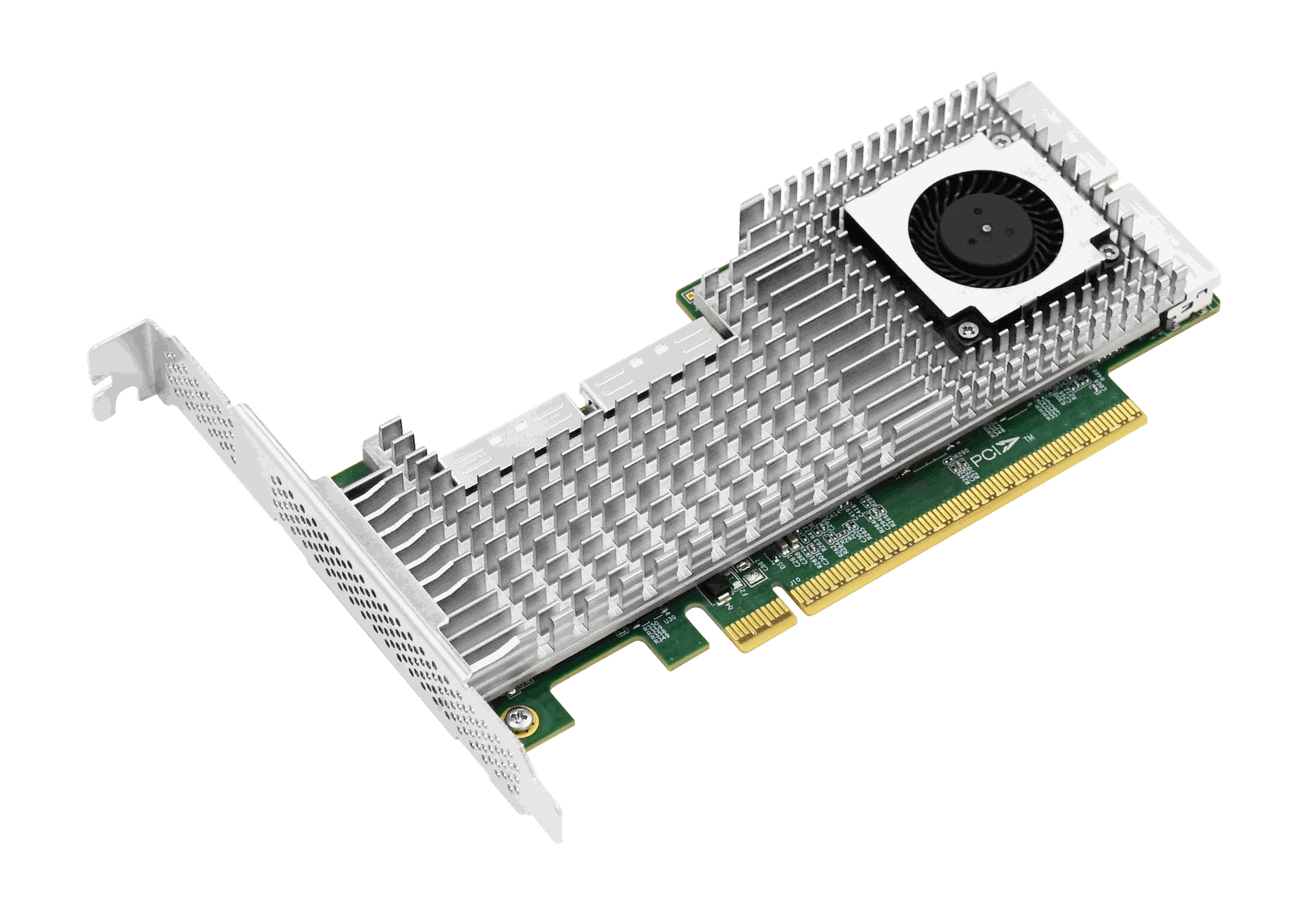

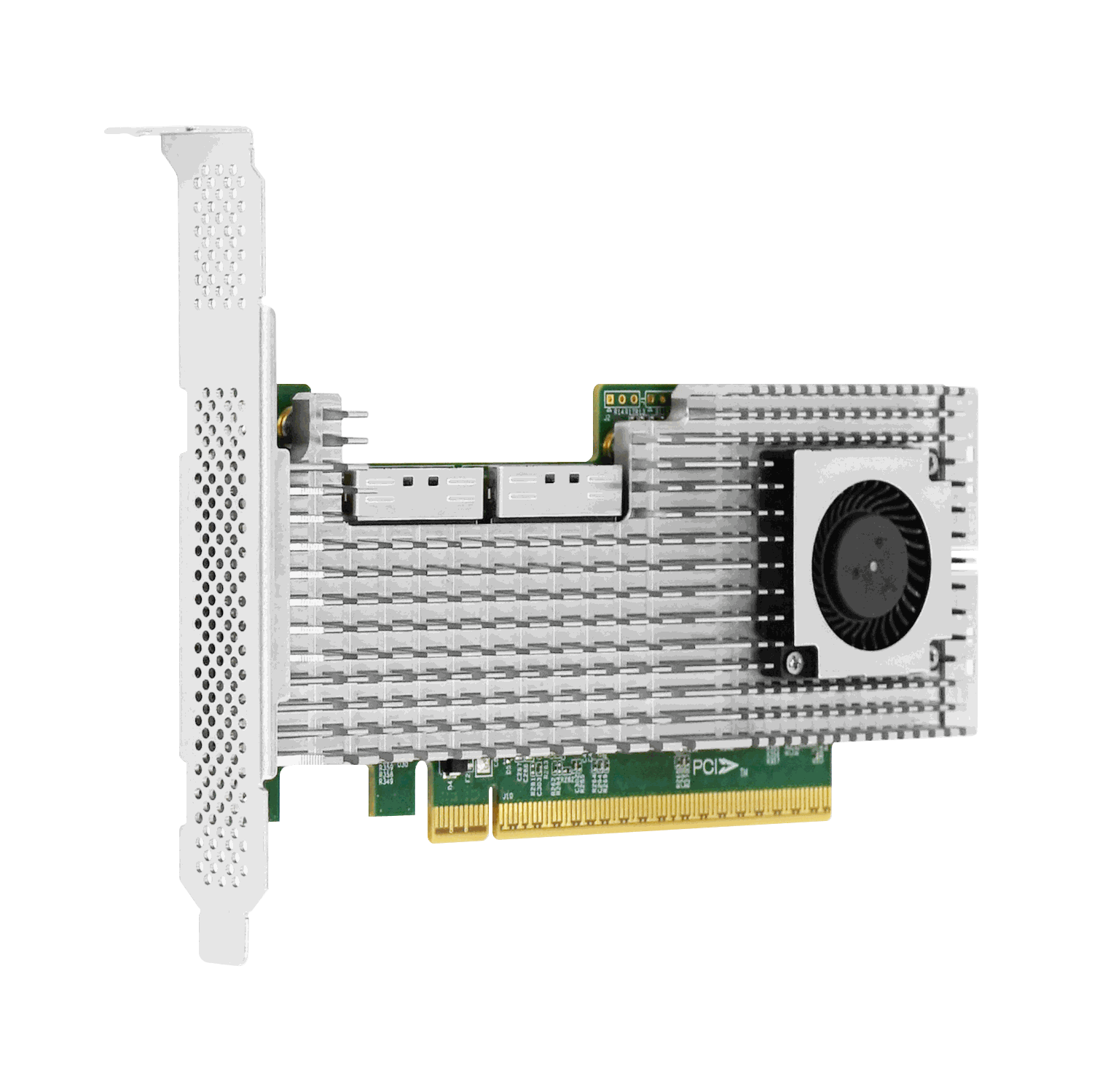

LRSV9500-4I

PCIe5.0 x16 to 4-Port Internal MCIO 8I NVMe Switch Adapter
Key Features
PCIe Gen5.0 x16;
Comes with switch function;
Support three splitting modes of 2*X16, 4*X8 and 8*X4;
Integrated NVMe Hot-Swap

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LRSV9500-4I is a PCIe5.0 x16 4*MCIO 8i NVMe Expansion Card developed by Linkreal Co., Ltd. based on Broadcom PEX89048 host controller solution.Supports three flexible splitting methods: 2 X16, 4 X8, and 8 X4.Users can flexibly configure according to their actual needs, whether it is high bandwidth single device access or multi device parallel processing, it can be easily handled. It can directly support up to 8 M.2, U.2/U.3, or E3. S SSDs. Specially designed for high-end application scenarios such as SSD performance testing and GPU expansion testing, the PCIe 5.0 connection with high bandwidth and low latency ensures the accuracy and real-time performance of test data, accelerating product development and verification processes

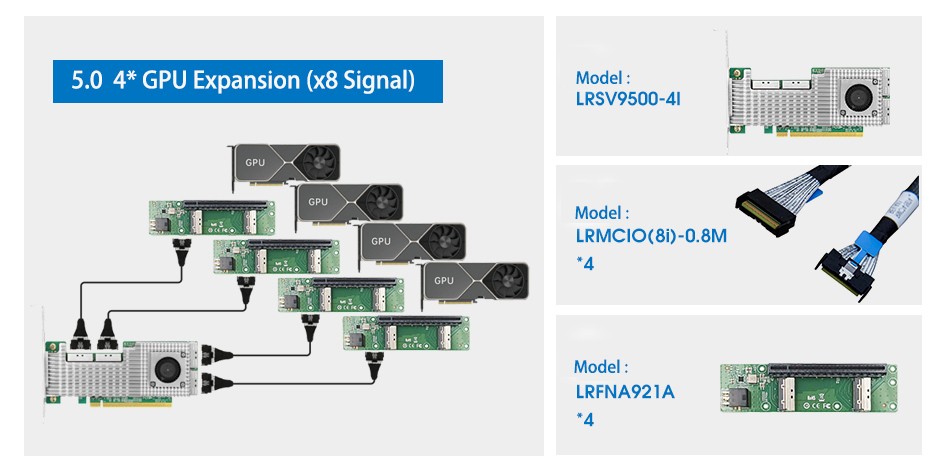

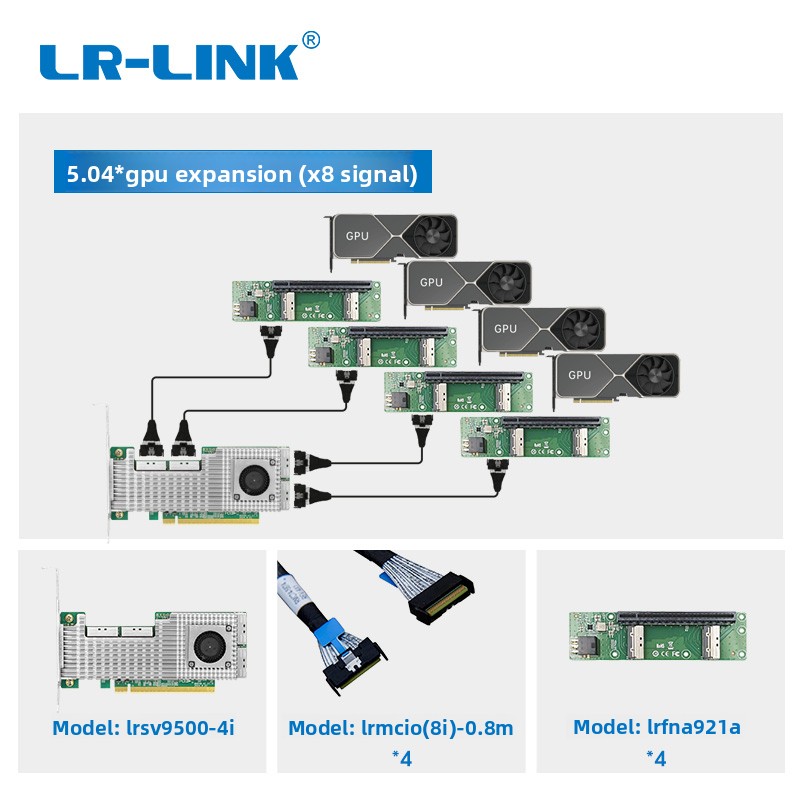

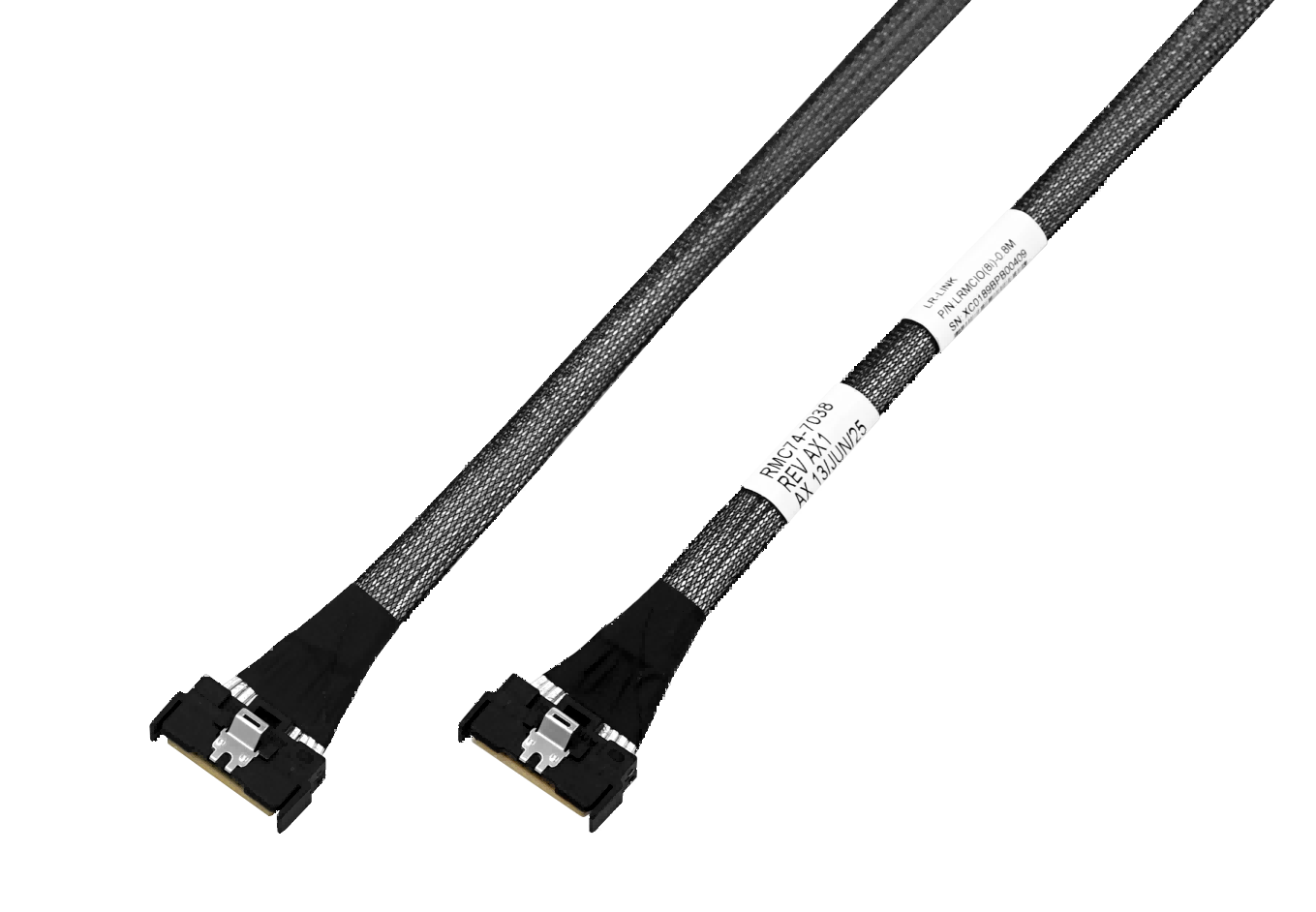

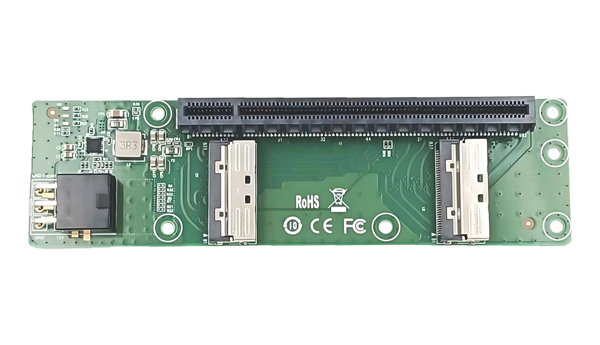

GPU  Expansion Solution 1

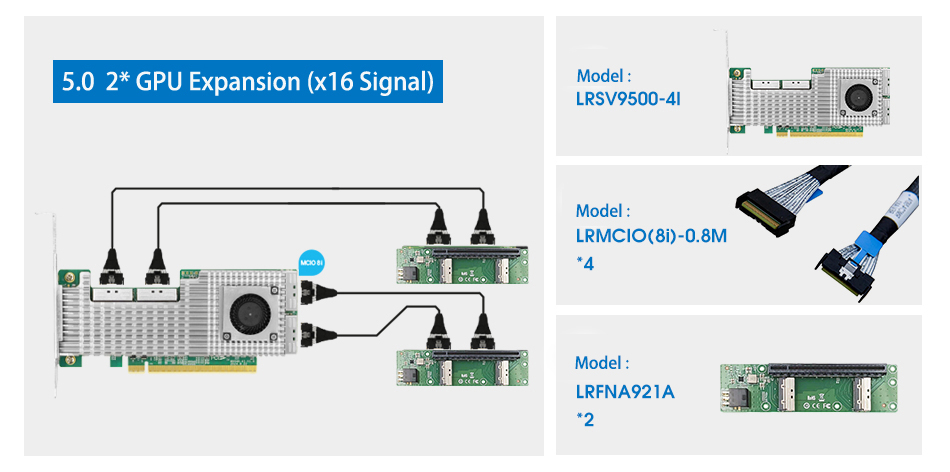

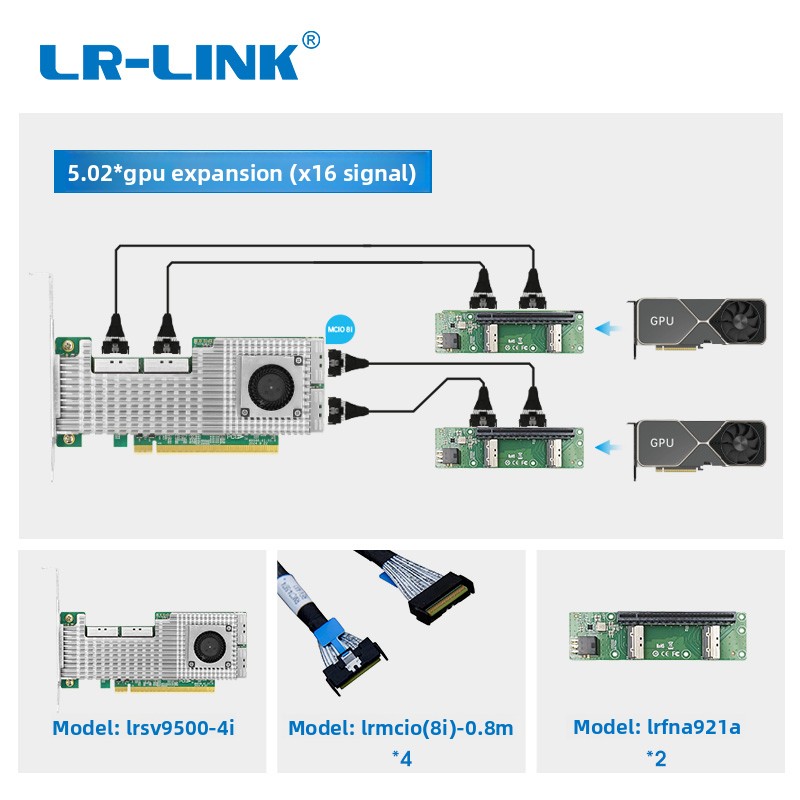

GPU  Expansion Solution 2

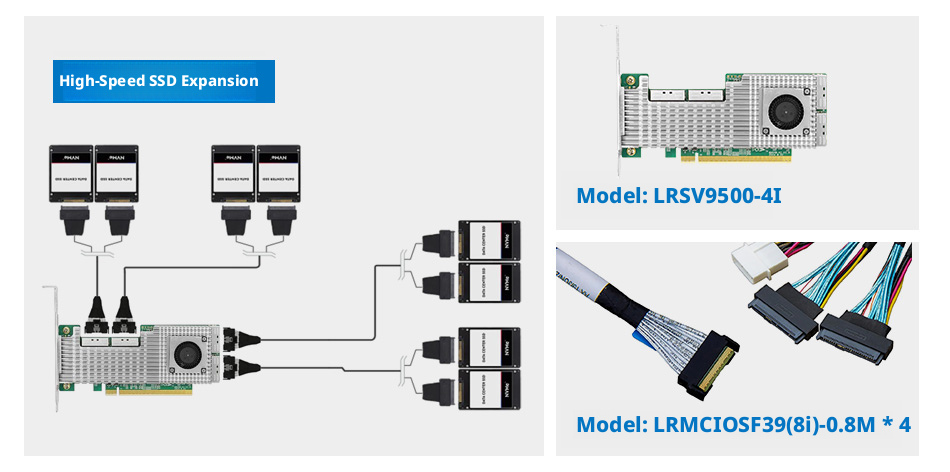

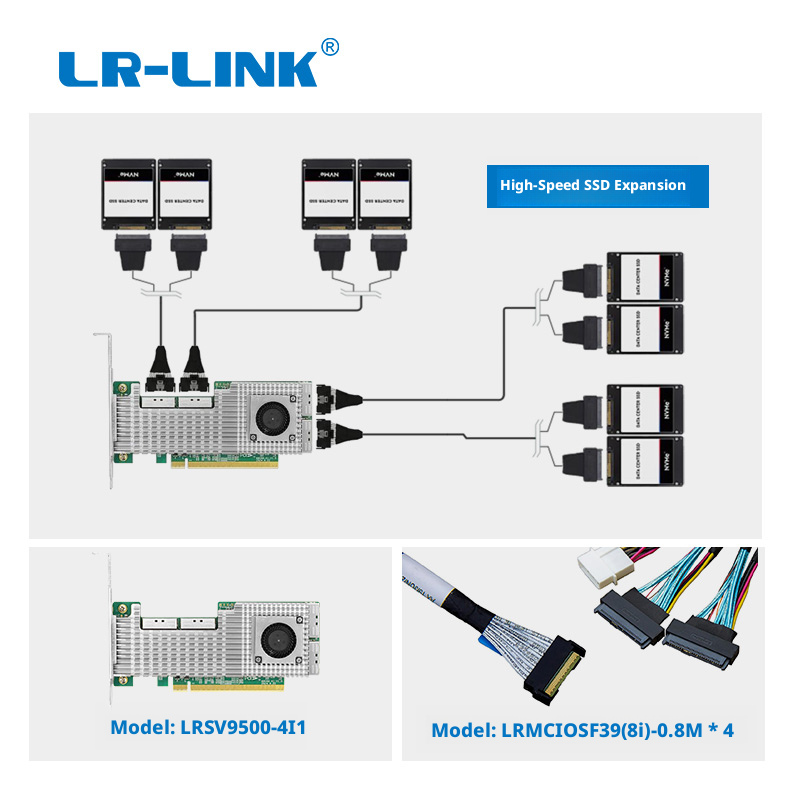

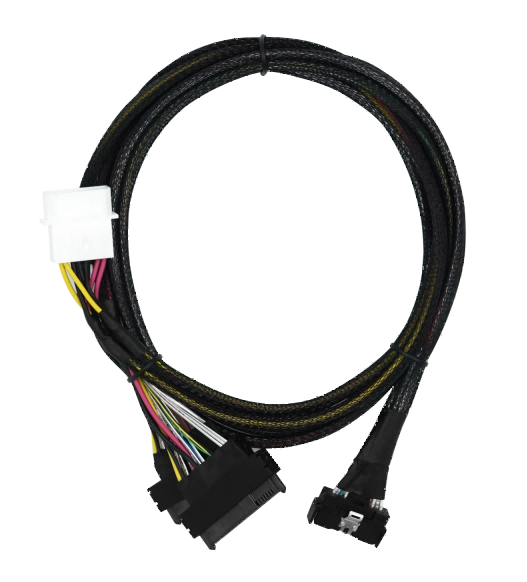

SSD  Expansion Solution

Technical Specifications

Model

LRSV9500-4I

Controller

Broadcom PEX89048

PCIe bus

PCIe5.0(32 GT/s) x16

Bracket Height

Low Profile & Full Height

Connector Type

MCIO 8I

SSD Form Factor

U.2, U.3, E3.S (via cabling accessories)

SSD Hot-Plug

Yes

PCIe Splitting

2*X16,4*X8,8*X4

Power Consumption

11.94W(Min), 19.92W(Max)











Operating System Support

* Windows 10 / 11

* Windows Server 2016/2019 /2022

*  RHEL/Centos7.6 /7.9 /8.2 /8.3

*  Deepin 15.11 /20 /20.6 /20.9

*  Ubuntu 18.04.5 /20.04.1 /22.04.3

*  SUSE 15.4

*  FreeBSD 12.2 / 13.2

*  NewStartOS 3.2.2 /5.0.5

*  Galaxy Kylin OS v10

*  NeoKylin 7.6

*  Fangde Desktop OS 5.0

*  Fangde Server OS 4.0

*  UOS 20

*  Emind OS

* VMware ESXi 6.7 /7.0/8.0

Working Parameters

Operating Temperature

-10°C to 60°C

Storage Temperature

-40°C to 85°C

Storage Humidity

Maximum: 90% non-condensing relative humidity at 35°C

Certification

FCC, CE, RoHS

Physical Properties

PCB Size(Unit:mm)

155.69*68.6*1.6

Packing Size(Unit:mm)

222* 147*28

Packing List

Baffle specifications

Full bracket(installed) & Low Profile

Expansion Card

*1

Product warranty card

*1

Packing

Carton and Blister box
