LRSU9A72-4A

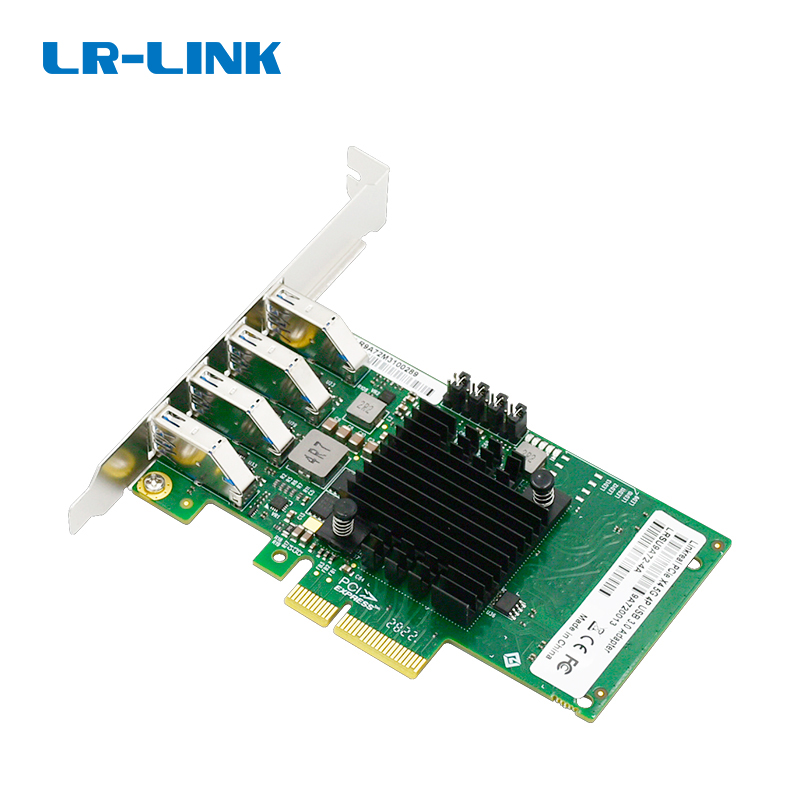

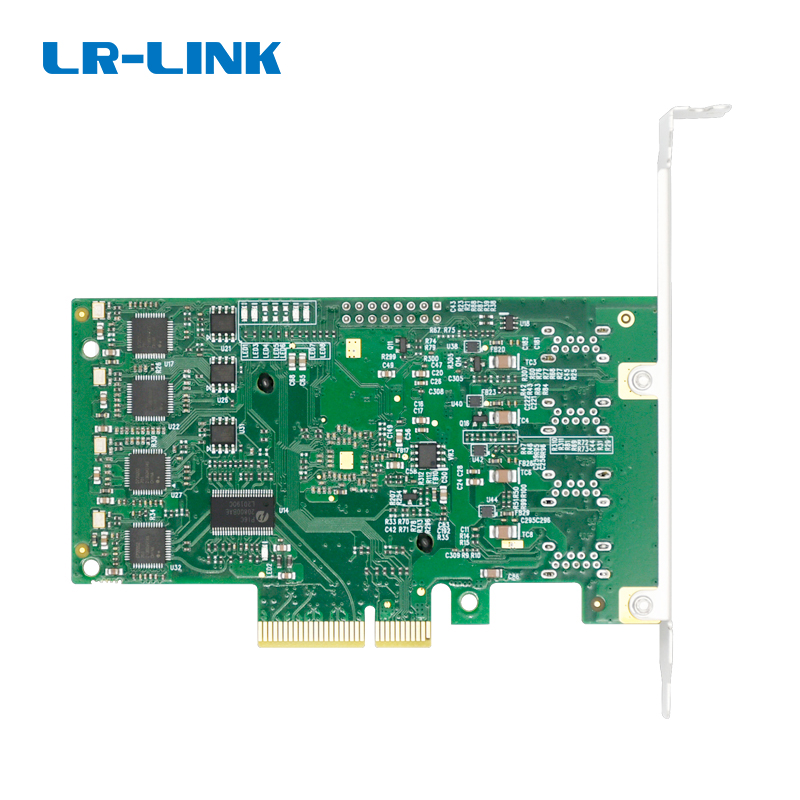

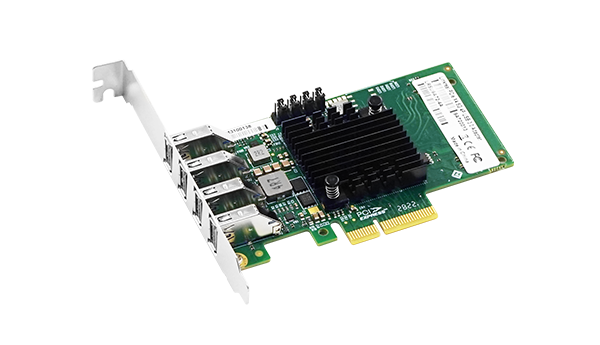

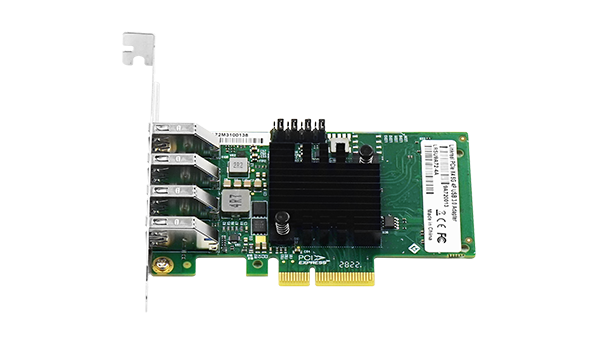

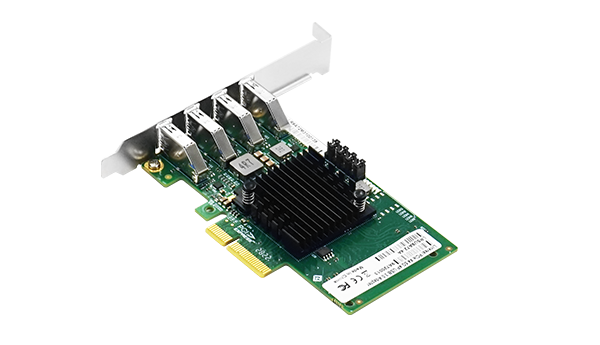

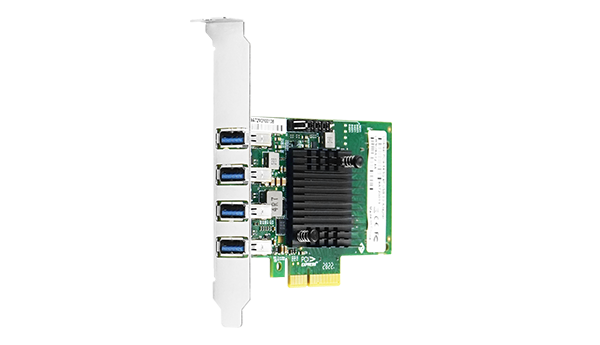

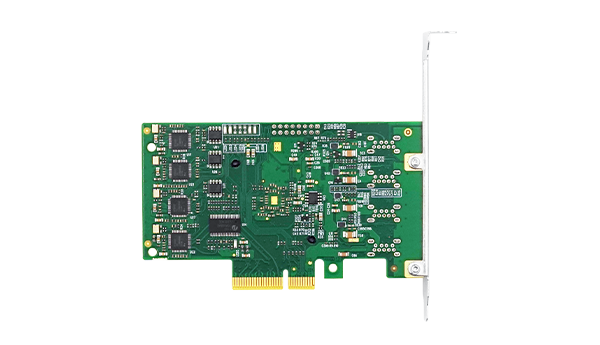

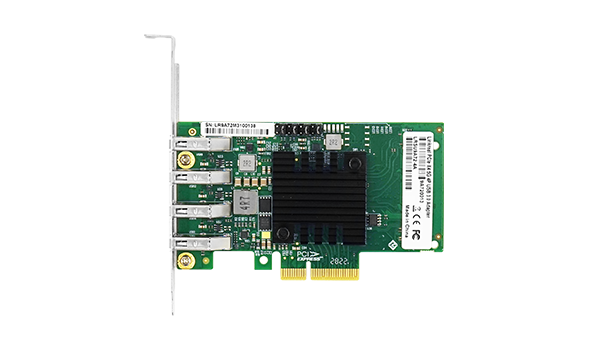

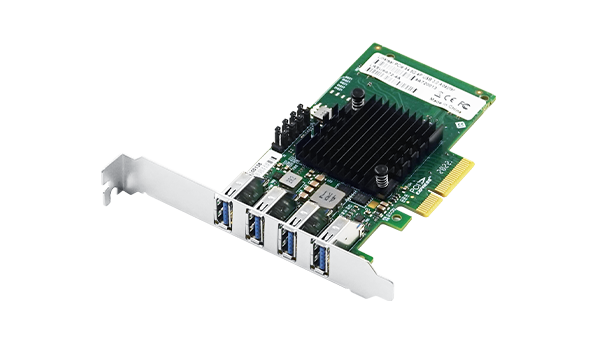

LRSU9A72-4A PCIe x4 4-Port USB3.0 Card
Key Features
Product Model:LRSU9A72-4A
Product Name: 4 Port 5Gb/s PCIe x4 USB3.0 Adapter Card
Main Chipset: NEC uPD720202
Interface Type: 4 USB 3.0 Type-A Connectors
Host Bus Type: PCIe 2.0 x4
Transfer Speed: 5Gb/s

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

Product Descripton

LRSU9A72-4A is an 4-port USB3.0 host adapter specififically designed for industrial and vision applicatons. USB3.0 or SuperSpeed USB, delivers up to ten tmes the data rate over USB2.0 and is parrcularly useful for high-speed data storage and imaging devices.
Flagship Series: LR-LINK PCIe2.0 x4 4P Type A 5Gb USB 3.0 Adapter LRSU9A11-4A(3U)




Features

 • x4 PCI Express® Gen2 interface (2GB/s total bandwidth)


 • 4-port by 4x NEC upd720202 host controller

 • On-board 5V DC regulated power supply, no external power needed

 • User-configurable 900mA and 1500mA current limit

 • Software-programmable per-port power on/ off control

 • Supports Windows XP/ 7/ 8 and Linux

 • Compliant with

            - Universal Serial Bus 3.0 specification Rev. 1.0

            - Intel® xHCI specification Rev. 1.0


HARDWARE

Model

LRSU9A72-2A

LRSU9A72-4A

LRSU9A72-8A

LRSU9A72-16A

Ports

2

4

8

16

Controller chip

upd720202

Card Type

Standard Profile (LP bracket incl.)

Bus Type

PCI Express

Interface

USB 3.1 Gen 2

Port Style

PCI / PCIe (5 / 3.3V)

PERFORMANCE

Type and Rate

5Gbps (PCIe Bus)

UASP Support

USB 3.0 - 5 Gbit/s

CONNECTOR(S)

Connector Type(s)

PCI Express x4 Male

External Ports

2 - USB Type-A (9 pin) USB 3.0 Female

Internal Ports

SATA Power (15 pin) Plug

SOFTWARE

OS Compatibility

Windows® 7, 8, 8.1, 10Windows Server® 2008 R2, 2012, 2016, Linux® 3.5 to 4.11.x LTS version only

SPECIAL NOTES / REQUIREMENTS

System and Cable Requirements

PCI Express enabled computer or server with anoptional SATA power connector

ENVIRONMENTAL

Humidity

15% ~ 90%

Operating Temperature

5°C to 50°C (41°F to 122°F)

Storage Temperature

-25°C to 70°C (-13°F to 158°F)

PHYSICAL CHARACTERISTICS

Cable Support

Full height, half length

Product Height

55mm

55mm

159mm

210mm

Product Length

105mm

105mm

69mm

108mm

Product Weight

50g

50g

180g

260g

Shipping Weight

70g

70g

200g

290g

WARRANTY INFORMATION

Warranty

2 Years

WHAT'S IN THE BOX

Included in Package

1 - PCI Express USB  Card

1 - low-profile bracket

1 – full height bracket(installed)
