LRNV9F14

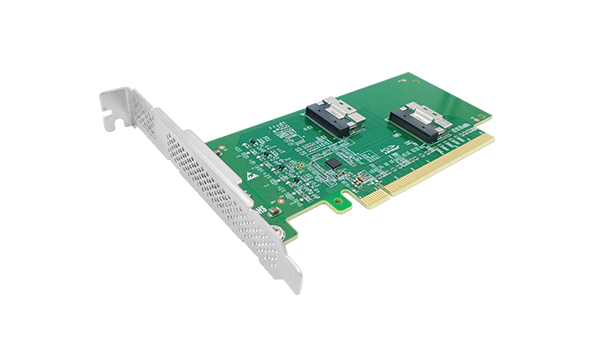

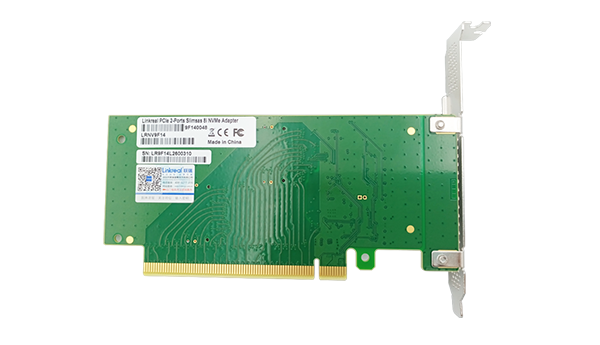

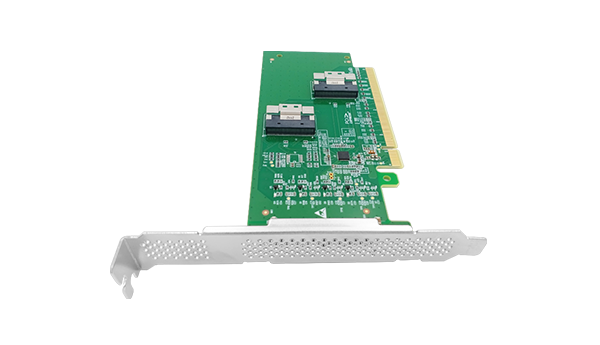

LRNV9F14 PCI Express x16 to Two SlimSAS SFF-8654 8i Adapter
Key Features
Product Model:LRNV9F14
Product Name:PCI Express x16 to Two SlimSAS SFF-8654 8i Adapter
Interface Type:2*Slim SAS SFF-8654 8i
Support Equipment: Up to 4* PCIe 4.0 U.2 NVMe SSD
Host Bus Type: PCIe x 16
Ps. Motherboards and BIOS Support Bifurcation required

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

Product Description

LRNV9F14 is a high performance, low dielectric loss factor interface conversion card designed for PCIe 4.0 U.2 SSD. It connects NVMe SSD or PCIe connectors via SlimSAS connector (SFF-8654). The bandwidth of the card is the bandwidth that the PCIe slot of the motherboard can support.



The Motherboard with CPU and BIOS needs to support bifurcation to ensure PCIe x16 link width to bifurcate two x8 link width or four x4 link width for NVMe SSD, Otherwise this card can only support PCIe x16 link width.

LR-LINK PCI Express 4.0 x8 to Two SlimSAS SFF-8654 4i Adapter: LRNV9F12

Features

Directly connected to PCIe 4.0 U.2 NVMe SSD by SFF-8654 8i to SFF-8639 cable

Support bifurcated in quad x4data link width configuration(CPU and BIOS both support)

Support bifurcated in two x8 data link width configuration (CPU and BIOS both support)

l Build in SlimSAS(SFF-8654) 8i connector 2 sets, pin-out defined by SFF-9402 for high-performance storage connectivity


PCIe Standard Full-profile bracket pre-installed and also a low-profile bracket for small form factor computer.



Specifications

PCI Express Base Specification, r4.0, compatible PCIe 1.0&2.0&3.0

Compliant with SFF-8654 Specification Version 1.2

Compliant with NVM Express 1.3

Support up to 4 NVMe SSDs


Operating system support

The adapter does not require a driver for operation or communication to attached NVMe drives. The drives are presented natively to the host and use the native NVMe drivers.

Redhat

Free BSD

Vmware

Linux

Windows


Application

Suitable for higher performance of PCIe Gen 4 connections for Storage Servers, Data Center, Servers RAIDs and Controllers.


HARDWARE

Model

LRNV9F14

Number of Device

4 internal

Bus Type

PCI Express

Compatible Device Type

U.2 (PCIe_NVMe SSD, SFF-8639)

Interface

Slim SAS SFF-8654 8i

CONNECTOR(S)

Device Connector

2*SFF-8654(74 Pin, x8 PCIe Gen 4)

Host Bus Type

PCI Express x16

Optional Accessories

Optional Cables

Slim SAS 8i to 2x SFF-8639 Cable

Slim SAS 8i to Slim SAS 8i Cable

Slim SAS 8i to 2x Slim SAS 4i Cable

ENVIRONMENTAL

Humidity

15% ~ 90%

Operating Temperature

5°C to 50°C (41°F to 122°F)

Storage Temperature

-25°C to 70°C (-13°F to 158°F)

PHYSICAL CHARACTERISTICS

Dimension

146.5mm x 67.9mm

Product Weight

102.5g

WARRANTY INFORMATION

Warranty

2 Years

PACKAGING INFORMATION

Shipping (Package)Weight

5.37 oz [152.5 g]

WHAT'S IN THE BOX

Included in Package

1 - PCI Express x16 to Two SlimSAS SFF-8654 8i Adapter

1 - Low-profile bracket

1 - Full-height bracket (installed)

2- Bracket screws
