LRNV9611

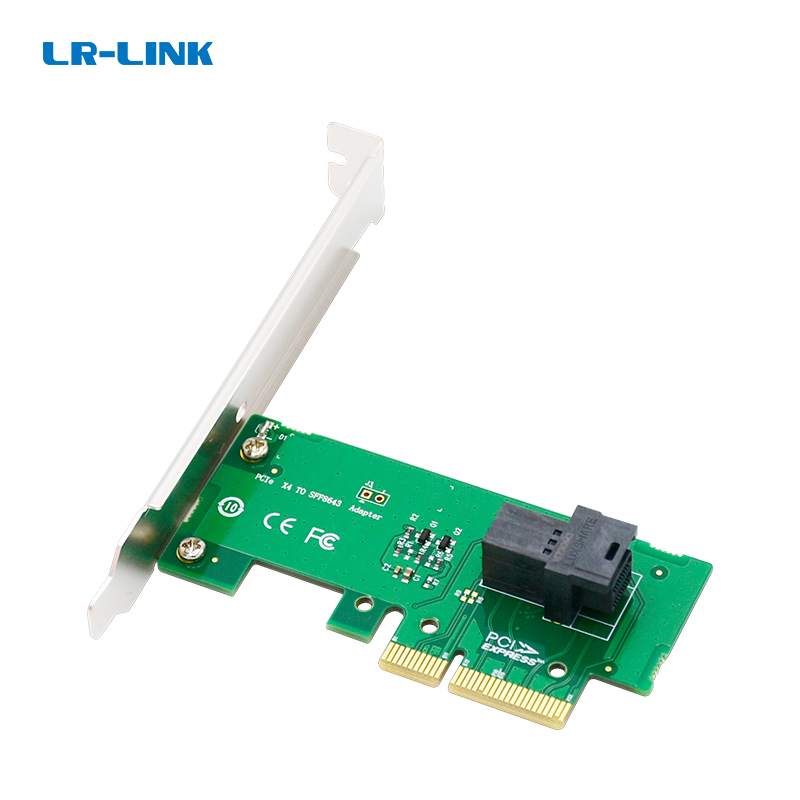

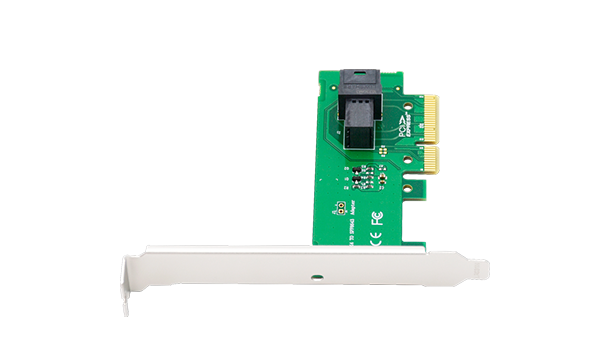

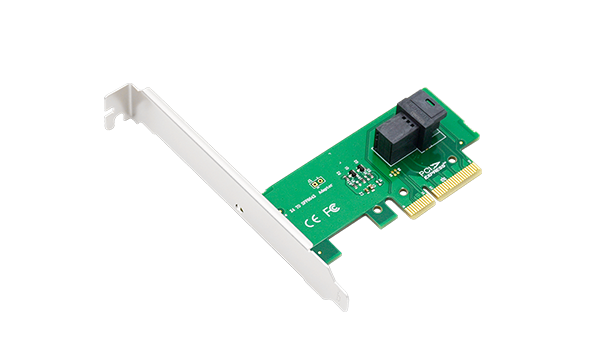

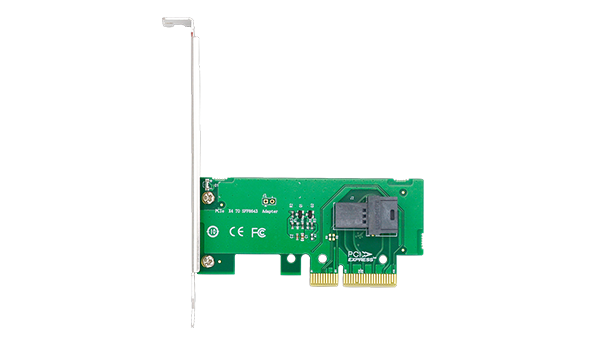

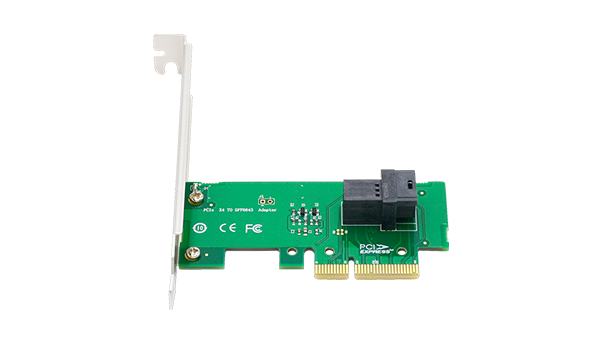

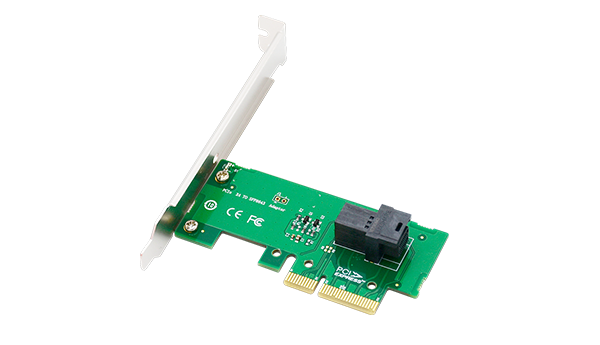

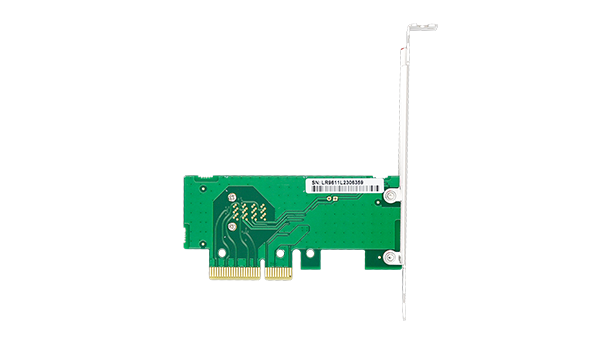

LRNV9611 PCI Express x4 to SFF-8643 Adapter for PCIe NVMe U.2 SSD
Key Features
Product Model:LRNV9611
Product Name:PCIe x4 to SFF-8643 Adapter for U.2 NVMe SSD
Interface Type:1*SFF-8643
Support Equipment:1*NVMe SSD
Host Bus Type:PCIe 3.0 x4

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

This SFF-8643 U.2 to PCIe 4x adapter converts the PCIe interface on the motherboard into a U.2 or connect 2.5" NVMe U. 2 (SFF-8639) SSD to the PCIe interface of the motherboard via the SFF-8643 to the SFF-8639 cable.The U.2 SSD could in loaded onto a backplane that has the SFF-8643 connector to interface with Adapter, allowing the U.2 SSD to be used like a drive cartridge.

LR-LINK Expansion Solution PCIe x16 4-port NVMe Switch Adapter: LRNV9F48

Features

  • PCI Express 3.0 x4 lane host adapter
  • Allow 2.5" NVMe U.2 (SFF-8639) SSD to connect to system via SFF-8643 cable
  • Add an enterprise-class PCIe NVMe 2.5 in. U.2 SSD capability to your PC or server
  • Compatible with PCIe 3.0 and PCIe 2.0 motherboards
  • Comes with full-profile bracket (installed) and low-profile bracket
  • No drivers required for this converter
  • Fully RoHS Compliant
  • Operating system support:   Windows 7/8/8. 1/10 of 64 - bit      UEFI version 2.3.1 or above

PCI Express 4.0 x16 to Two SlimSAS SFF-8654 8i Retimer Adapter: LRNV9F24



HARDWARE


Model

LRNV9611


Number of Drive

One 36-pin SFF-8643 connector


Bus Type

PCI Express 3.0 x4


Compatible Device Type

1 NVMe SSD


Interface

1* SFF-8643


CONNECTOR(S)


Device Connector

1* SFF-8643


Host Bus

PCIe x4


ENVIRONMENTAL


Humidity

0% – 90%


Operating Temperature

0°C to 50°C (32°F to 122°F)


Storage Temperature

-10°C to 65°C (14°F to 149°F)


PHYSICAL CHARACTERISTICS


Dimension

90mm*43mm


Product Weight

25g


WARRANTY INFORMATION


Warranty

2 Years


WHAT'S IN THE BOX



Included in Package

1 - PCIe to U.2 NVMe Adapter Card


1 - low-profile bracket


1 - full-profile bracket (installed)


* Product appearance and specifications are subject to change without notice.
