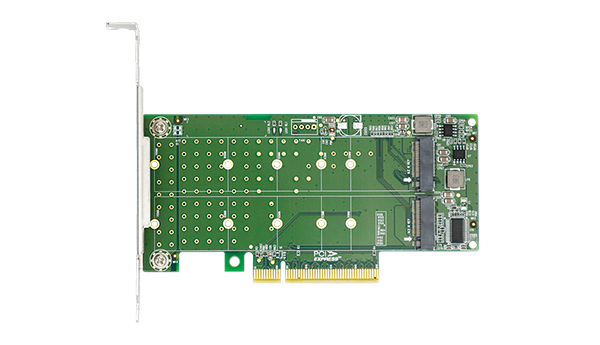

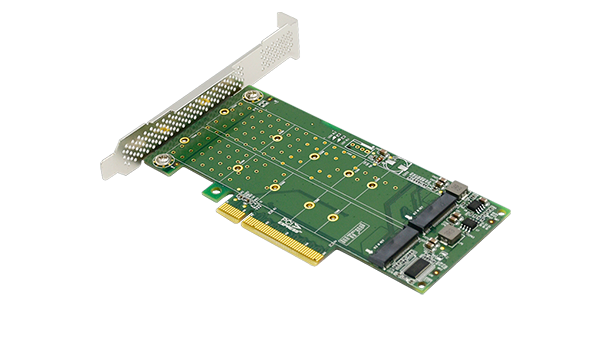

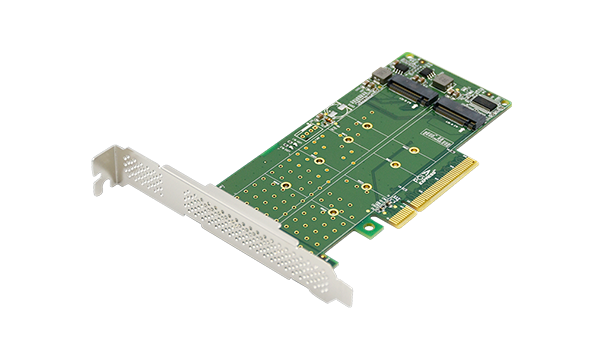

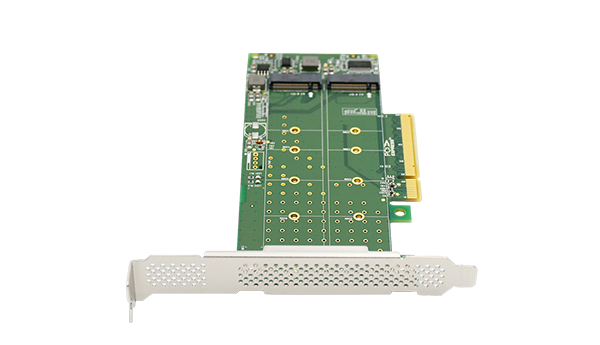

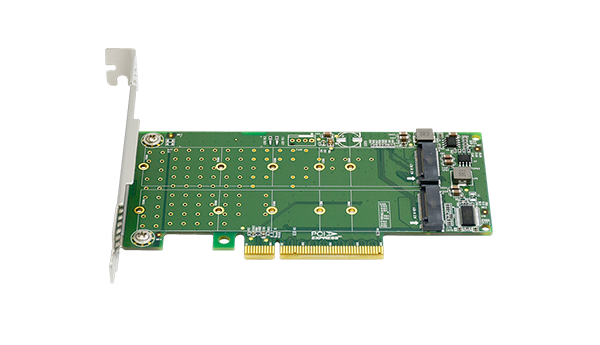

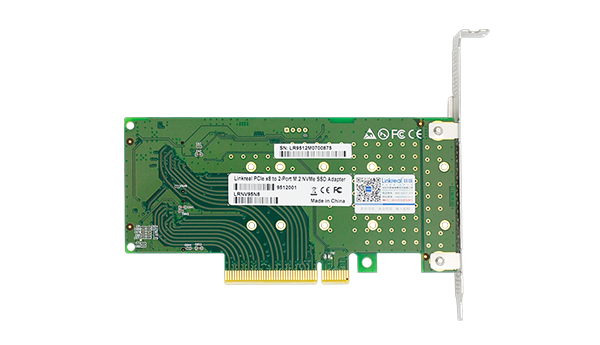

Converts PCIe x8 slot to dual M.2 NVMe/AHCI SSD ports for storage expansion.
When server storage capacity becomes constrained by limited M.2 slots, expanding internal data storage without adding new chassis units is critical for maintaining performance in compact form factors.
The LRNV95N8 leverages the high bandwidth of a single PCIe x8 host bus to connect two M.2 NVMe or AHCI SSDs directly. This configuration eliminates storage bottlenecks by providing ultra-fast data transfer speeds via PCIe 4.0 x4 lanes per port, ensuring rapid read/write operations for demanding applications.
Ideal for small form factor PCs and workstations requiring scalable storage, this driver-free adapter offers stable performance across various operating systems. It provides a reliable solution for users needing to upgrade system speed and storage density efficiently.
Connects two M.2 NVMe or AHCI SSDs via a single PCIe x8 slot.
Utilizes PCIe 4.0 x4 lanes for ultra-fast data transfer and low latency.
Compatible with PCIe 4.0, 3.0, 2.0, and 1.0 motherboards.
Supports 2242, 2260, 2280, and 22110mm SSD lengths with included brackets.
Complete technical details for integration and deployment planning.
| Model | LRNV95N8 |
|---|---|
| Bus Type | PCIe x8 |
| Built-in Ports | 2* M.2 |
| Supported Devices | 2* NVMe SSD |
| Adaptable Hard Disk Types | 2* M.2 (PCIe, AHCI, M-Key, NGFF) |
| Device Connector | 2* M.2 (PCIe, AHCI, M-Key, NGFF) |
|---|---|
| Host Bus | PCIe x8, compatible with x16 |
| Operating Temperature | 0°C-70°C (32°F-158°F) |
|---|---|
| Storage Temperature | -25°C-80°C (-13°F-176°F) |
| Humidity | 15%-90% |
| PCB Size | 68.9*137*1.6 mm |
|---|---|
| Package Size | 208*143*25 mm |
| Protocol Support | PCIe 4.0, PCIe 3.0, PCIe 2.0, PCIe 1.0, AHCI, NVMe |
|---|---|
| Feature Support (Yes) | Driver-free, Backward Compatible, Low Latency, Full-height/Half-height Brackets |
| Feature Support (No) |
