LRNV9547LP-2I

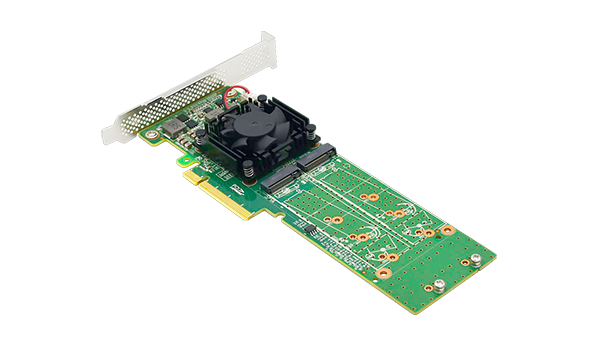

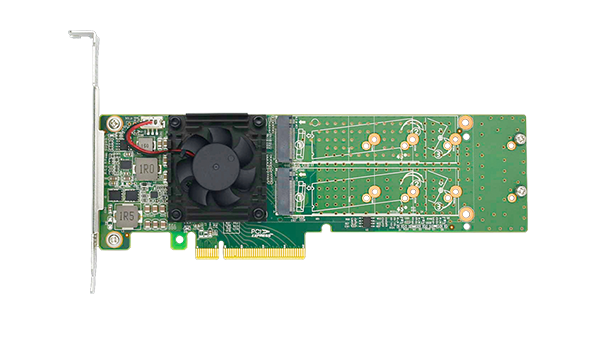

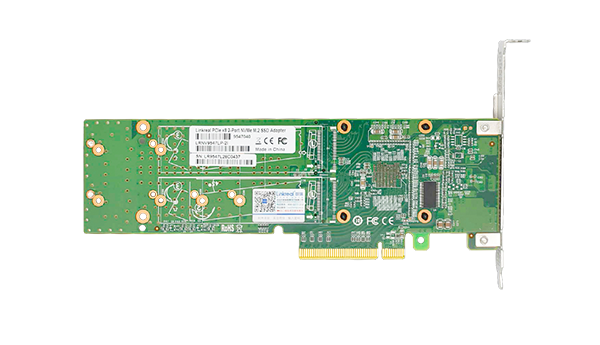

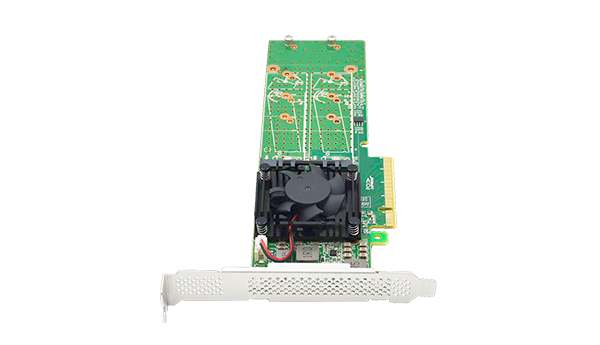

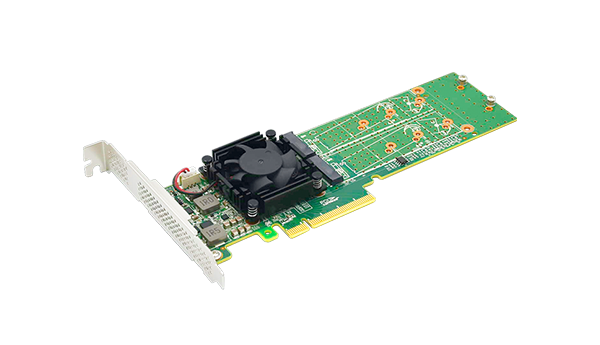

LRNV9547LP-2I PCI Express x 8 to Dual M.2 NVMe SSD Switch Adapter
Key Features
Product Model:LRNV9547LP-2I
Product Name:PCIe 3.0 x8 to Dual M.2 NVMe SSD Adapter
Chipset: PLX 8747
Interface Type:2*M.2 Connectors
Support Equipment: 2*M.2 NVMe SSD for 2242,2260,2280 and 22110mm
Host Bus Type: PCIe 3.0 x 8

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

Product Description

Compliant PCI Express Base Specification, r3.0 (compatible w/ PCIe r1.0a/1.1&2.0).

Compliant with PCI Power Management Spec, r1.2.
Microsoft Vista Compliant.
Supports Access Control Services.
High Performance. Non-blocking switch fabric, Full line rate on all ports.
This card does not rely on PCIe bifurcation supported by CPU or PCH
Independent, Stand Alone NVMe SSD Solution
Supports Windows 10 & Later, Windows 2016 Server, & Linux Kernel 3.3 & later

Supports Full-height Bracket and Low-Profile Bracket

LR-LINK PCI Express x16 to Quad M.2 NVMe SSD Switch Adapter: LRNV9547L-4I

HARDWARE

Model

LRNV9547LP-2I

Number of Device

2 Internal

I/O Controller

PEX8747

Host Bus Type

PCI Express 3.0 x8

Compatible Device Type

2 NVMe M.2 SSD

Interface

2*M.2

CONNECTOR(S)

Device Connectors

2* M.2 Connectors

Host Connectors

PCIe x8

Operating System

OS supported list

Windows,Red Hat Linux,Cont0S,VMware ESXi;Ubuntu Linux,

ENVIRONMENTAL

Humidity

15% – 90%

Operating Temperature

5°C to 50°C (41°F to 122°F)

Storage Temperature

-25°C to 70°C (-13°F to 158°F)

PHYSICAL CHARACTERISTICS

Dimension

67.9mm x200mm

Product Weight

178g

WARRANTY INFORMATION

Warranty

2 Years

WHAT'S IN THE BOX

Included in Package

1- PCI Express x8 to Dual NVMe M.2 SSD Switch Adapter

1- Full-height Bracket (installed)

1-Low Profile Bracket

2- Screws and nuts for SSD
