LRNV9547-4I

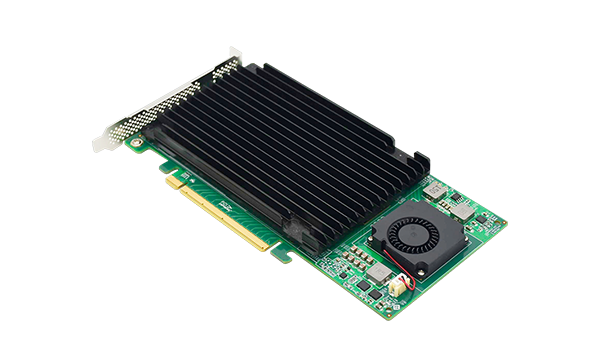

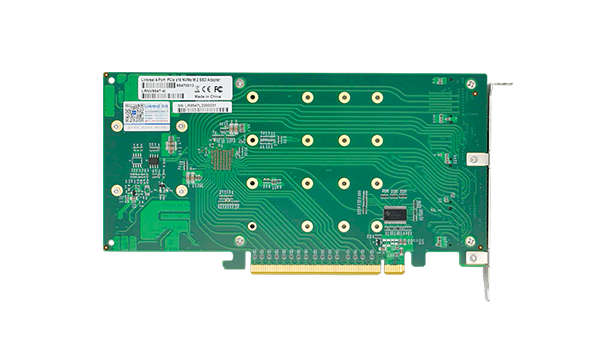

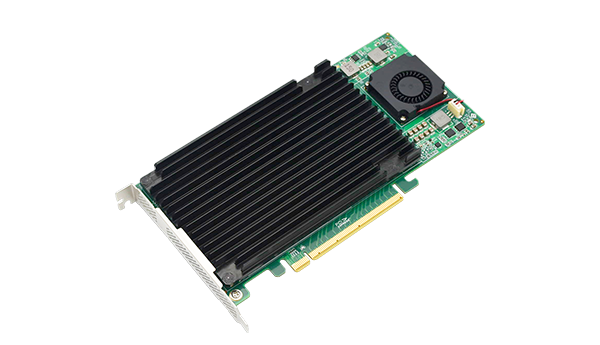

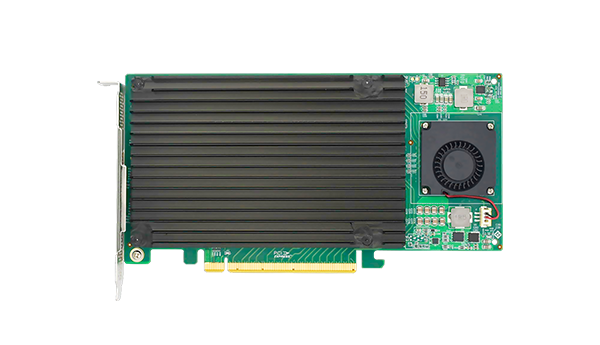

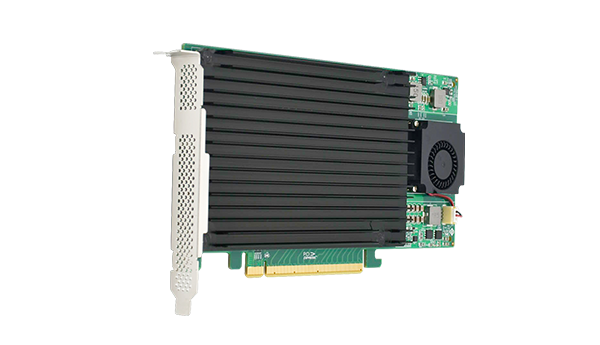

LRNV9547-4I Quad PCIe 3.0 x16 M.2 NVMe Switch Controller
Key Features
Product Model:LRNV9547-4I
Product Name:PCIe 3.0 x16 Quad M.2 NVMe Switch Card
Chipset: PLX 8747
Interface Type:4*M.2 Connectors
Support Equipment: 4*NVMe SSD for 2242,2260,2280 and 22110mm
Host Bus Type: PCIe 3.0 x16

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

Product Description

 LRNV9547-4I is a PCI Express x16 Gen3 PCIe switch Card provides dedicated PCIe 3.0 x4 (32Gb/s) bus bandwidth for each M.2 SSD, and unlocks the true performance potential of NVMe based storage configurations. Ideal for servers & high-end desktop/workstation platforms,The all-aluminum casing naturally dissipates waste heat away from the SSD modules, and features an integrated fan and heat sink that work in conjunction to eject excess heat away from vital components and keep ambient temperatures manageable and cool.

LR-LINK Expansion Solution PCIe3.0 to 2P M.2 NVMe Adapter: LRNV9541-2IR

Functional Characteristics


PLX PEX8747 Switch Controller has a PCIe 3.0 x16 upstream port as well as four PCIe 3.0 x4 downstream ports.

Dedicated PCIe 3.0 x16 bus bandwidth fully maximizes NVMe SSDs performance, And dedicated PCIe 3.0 x4 bandwidth for each NVMe M.2 SSD

This card does not rely on PCIe bifurcation supported by CPU or PCH

Independent, Stand Alone NVMe SSD Solution

Supports Windows 10 & Later, Windows 2016 Server, & Linux Kernel 3.3 & later


Applications

Suitable for host-centric as well as peer-to-peer traffic patterns, the LRNV9547 can be configured for a variety of graphics applications.

Advantages
Suitable for small sized M.2 SSD support PCI Express, It can get the maximum bandwidth and transfer rate while the 4 M.2 SSD installed.


PCI Express x16 to Quad M.2 NVMe SSD Switch Adapter: LRNV9547L-4I

HARDWARE

Model

LRNV9547-4I

Number of Device

4 Internal

I/O Controller

PEX8747

Host Bus Type

PCI Express 3.0 x16

Compatible Device Type

4 NVMe M.2 SSD

Interface

4*M.2

CONNECTOR(S)

Device Connectors

4* M.2 Connectors

Host Connectors

PCIe x16

Operating System

OS supported list

Windows,Red Hat Linux,Cont0S,VMware ESXi;Ubuntu Linux,

ENVIRONMENTAL

Humidity

15% – 90%

Operating Temperature

5°C to 50°C (41°F to 122°F)

Storage Temperature

-25°C to 70°C (-13°F to 158°F)

PHYSICAL CHARACTERISTICS

Dimension

111mm*210mm

Product Weight

302g

WARRANTY INFORMATION

Warranty

2 Years

WHAT'S IN THE BOX

Included in Package

1 - PCI Express to NVMe M.2 SSD Adapter

1 - full-height bracket (installed)

4 - screws and nuts
