LRNV9411U3

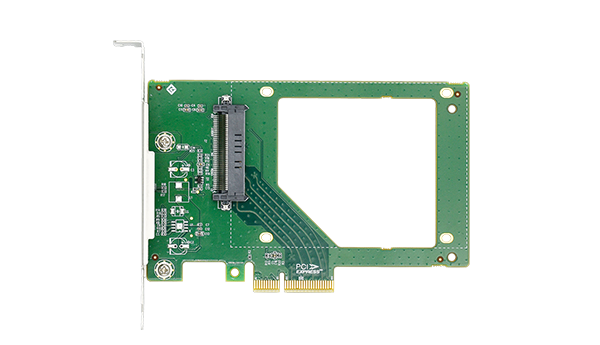

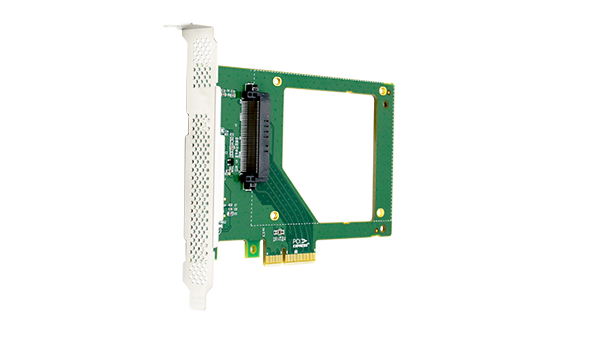

LRNV9411U3 PCIe x4 to U.3 NVMe SSD Adapter
Key Features
Product Model: LRNV9411U3
Product Name: PCIe 4.0 x4 to U.3 NVMe SSD Adapter
Interface: U.3(SFF-8639)
Support:1* U.3 NVMe SSD
Host Bus Type: PCIe 4.0 x4

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

The LRNV9411U3 allows you to install an Extremely High Performance Enterprise-Class 2.5" U.3 SSD on LRNV9411U3 PCIe Card for Enthusiast Gaming and Workstation Markets.

LR-LINK 8 Port U.2 to PCIe x16 SFF-8639 NVMe SSD Adapter: LRNV9349-8I

Features:

  • Mount a 2.5-inch U.3 SSD onto a PCI Express Add-in card and install on a PCIe x4 slot. No cables are required.
  • The adapter is a PCI Express 4.0 4-lane Host adapter. Supports PCIe 4.0 and PCIe 3.0 motherboard
  • The SFF-8639 interface socket is for U.3 SSD.
  • No driver installation is required.


System Requirement:
- An empty PCIe 4.0 or PCIe 3.0 x4, x8, or x16 slot.


Note: The SFF-8639 interface socket on this card is for U.3 SSD. It does not support U.2 SSD.


HARDWARE

Model

LRNV9411U3

Interface

PCI Express 4.0 x4

Compatible Drive

U.3 (PCIe NVMe SSD, SFF-8639)

CONNECTOR(S)

Drive Connector

68-pin Female SFF-8639 Connector

ENVIRONMENTAL

Humidity

15% ~ 90%

Operating Temperature

5°C to 50°C (41°F to 122°F)

Storage Temperature

-25°C to 70°C (-13°F to 158°F)

PHYSICAL CHARACTERISTICS

Product Dimension

137mm X90mm

Product Weight

57g

Shipping Weight

4.4oz [125 g]

WARRANTY INFORMATION

Warranty

2 Years

WHAT'S IN THE BOX

Included in Package

1 - PCIe to U.2 Adapter For 2.5" U.3 NVMe SSD

1 - Full-Height Bracket(Installed)

4 – Screw & Nut for SSD
