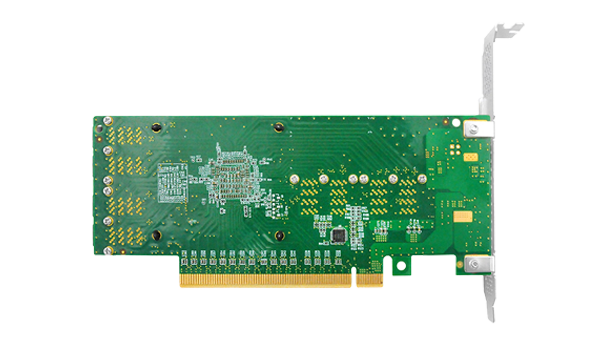

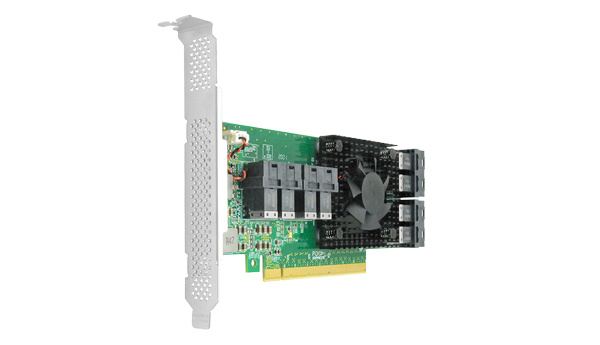

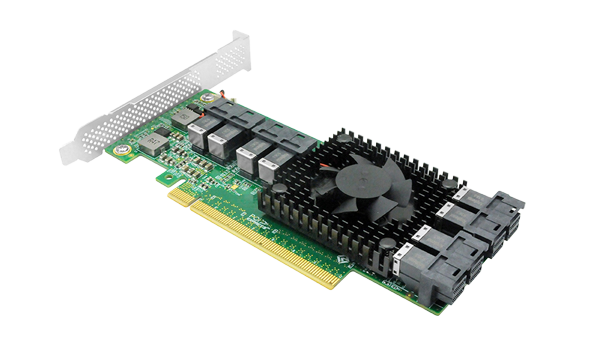

LRNV9348-8I

LRNV9348-8I PCI Express x16 to 8 U.2 SFF-8643 NVMe SSD Adapter Card
Key Features
Product Model:LRNV9348-8I
Product Name:PCI Express x16 to 8 U.2 SFF-8643 NVMe SSD Adapter Card
Chipset:PLX 8748
Interface Type:8*SFF-8643 Connectors
Support Equipment:8 Port NVMe SSD or 8 Port PCIe x4 or 4 Port PCIe x8 or 2 Port PCIe x16
Host Bus Type:PCIe 3.0 x16

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LRNV9348-8I NVMe Series is PCI Express x16 Gen3 Multi-Host PCI-e switch Card. It offers Multi-Host PCI Express switching capability that enables users to connect multiple hosts to their respective endpoints via scalable, high-bandwidth, non-blocking interconnection to a wide variety of applications including servers, storage, communications, and graphics platforms.

High Performance & Low Packet Latency

The LRNV9348-8I supports packet cut-thru with a maximum latency of 126ns (x16 to x16). This combined with large packet memory,flexible common buffer/FC credit pool and non-blocking internal switch architecture, provides full line rate on all ports for performance-hungry applications such as servers and switch fabrics. The low latency enables applications to achieve high throughput and performance and supports a packet payload size of up to 2048 bytes, enabling the user to achieve even higher throughput.

LR-LINK 4 xU.2 to PCIe x16 Adapter for 2.5: LRNV94NF

HARDWARE

Model

LRNV9348-8I

Number of Drives

8 internal

I/O Controller

PEX 8748

Bus Type

PCI Express

Compatible Device

8 Port NVMe SSD or 8 Port PCIe x4 or 4 Port PCIe x8 or 2 Port PCIe x16

CONNECTOR(S)

Device Connector

SFF-8643

Host Connector

PCIe x16

OPERATING SYSTEM

OS supported list

RedHat; Suse; Mircosoft Windows; Vmware; MAC OSX; FreeBSD

ENVIRONMENTAL

Humidity

15% ~ 90%

OperatingTemperature

5°C to 50°C (41°F to 122°F)

Storage Temperature

-25°C to 70°C (-13°F to 158°F)

PHYSICAL CHARACTERISTIC

Product Dimension

165mm x 68.90mm

Product Weight

148g

WARRANTY INFORMATION

Warranty

2 Years

WHAT'S IN THE BOX

Included in Package

1 - PCI Express x16 to 8 U.2 (SFF-8643) NVMe Adapter Card

1 - low-profile bracket

1 - full-height bracket(installed)
