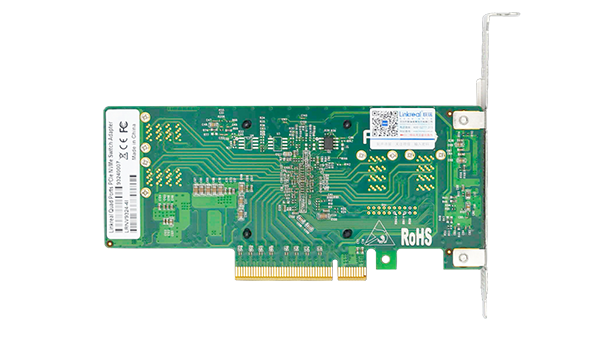

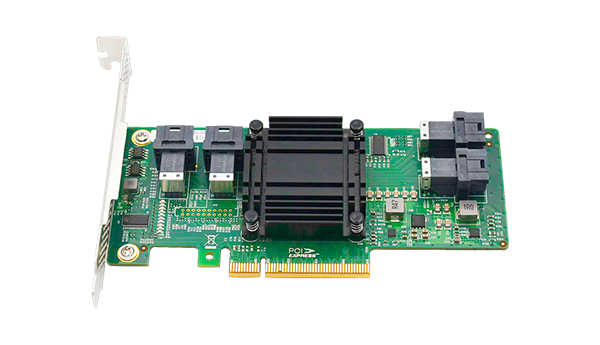

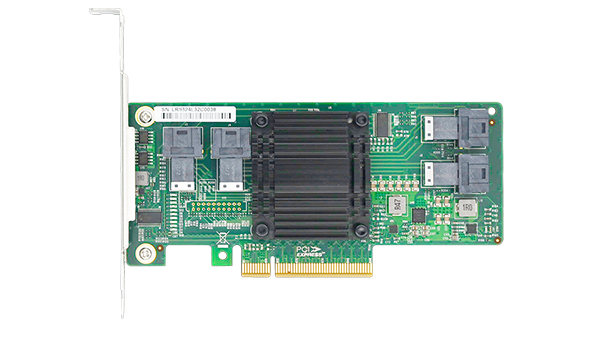

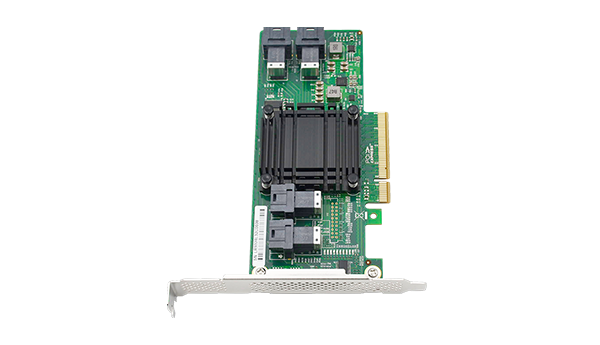

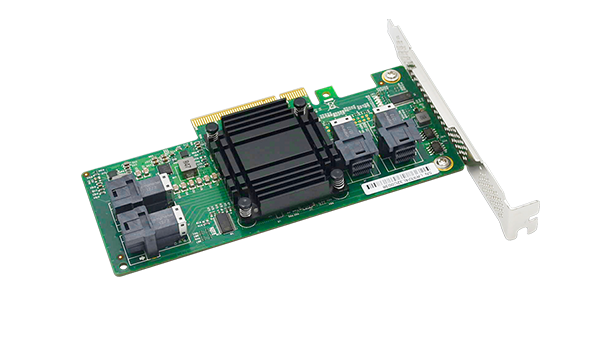

LRNV9324-4I

LRNV9324-4I 4 Port U.2 to PCI Express x8 SFF-8643 NVMe Adapter
Key Features
Product Model:LRNV9324-4I
Product Name:4 Port PCIe 3.0 x8 to Internal SFF-8643 NVMe Adapter
Chipset:PLX 8724
Interface Type:4*SFF-8643 Connectors
Support Equipment:4*NVMe SSD or 4 Port PCIe x4 or 2 Port PCIe x8
Host Bus Type:PCIe 3.0 x8

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LRNV9324-4I NVMe Series is PCI Express x8 Gen3 Multi-Host PCI-e switch Card.  It offers Multi-Host PCI Express switching capability that enables users to connect multiple hosts to their respective endpoints via scalable, high-bandwidth, non-blocking interconnection to a wide variety of applications including servers, storage, communications, and graphics platforms.

LR-LINK 4 xU.2 to PCIe x16 Adapter for 2.5: LRNV94NF


The LRNV9324-4I employs an enhanced version of PLX’s field tested PEXPCIe switch architecture, which allows users to configure the device in legacy single-host mode or multi-host mode with up to six host ports capable of 1+1 (one active & one backup) or N+1 (N active & one backup) host failover. This powerful architectural enhancement enables users to build PCIe based systems to support high-availability, failover, redundant, or clustered systems.


High Performance & Low Packet Latency

The LRNV9324-4I architecture supports packet cut-thru with a latency of less than 130ns between symmetric(x8 to x8). This combined with large packet memory, flexible common buffer/FC credit pool and non-blocking internal switch architecture, provides full line rate on all ports for performance-hungry applications such as servers and switch fabrics. The low latency enables applications to achieve high throughput and performance and supports a packet payload size of up to 2048 bytes, enabling the user to achieve even higher throughput.

HARDWARE

Model

LRNV9324-4I

Number of Device

4 internal

I/O Controller

PEX 8724

Bus Type

PCI Express

Compatible Device

4*NVMe SSD or 4 Port PCIe x4 or 2 Port PCIe x8

CONNECTOR(S)

Device Connector

SFF-8643

Host Connector

PCI Express x8

OPERATING SYSTEM

OS supported list

RedHat; Suse; Mircosoft Windows; VmwareMAC OSXFreeBSD

ENVIRONMENTAL

Humidity

0% ~ 90%

Operating Temperature

0°C to 50°C (32°F to 122°F)

Storage Temperature

-10°C to 65°C (14°F to 149°F)

PHYSICAL CHARACTERISTICS

Product Dimension

148mm x69mm

Product Weight

150g

Shipping Weight

7.1oz [200g]

Hardware Warranty

Warranty

2 Years

WHAT'S IN THE BOX

Included in Package

1 - PCI Express to SFF-8643 NVMe switch Card

1 - low-profile bracket

1 - high-profile bracket(installed)
