LRNV94NF

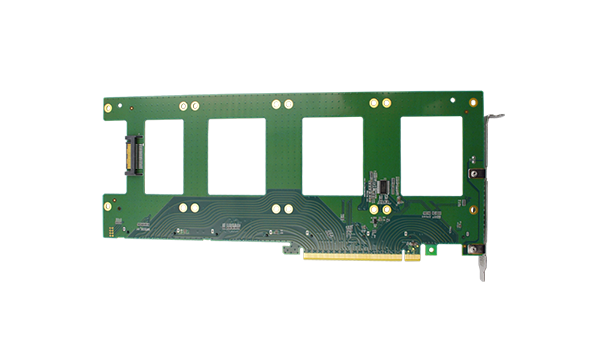

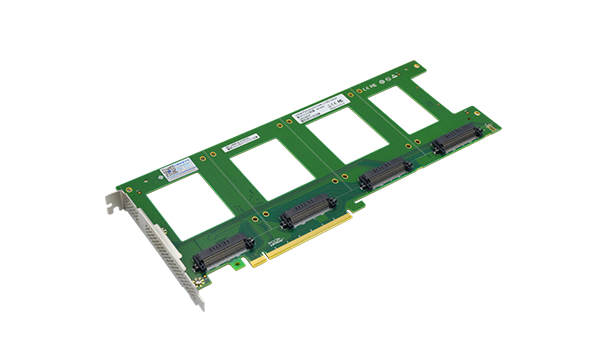

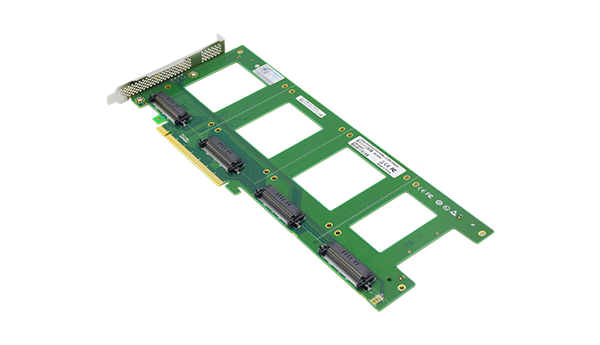

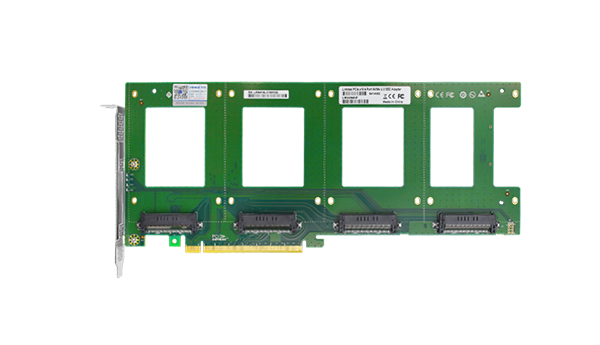

PCIe x16 to 4-Port U.2 SSD NVMe Card
Key Features
- Only For motherboards with PCIe Bifurcaton supported. Control the operaton of four disks based on the motherboard PCIe channel,The motherboard without PCIe signal split can only recognize one disk.
- U.2 SFF-8639 four-disk design, Stable installaton, Can run four U.2 disks at full speed at the same tme.
- The innovatve design can accommodate four U.2 of the chassis, and can support simultaneous operaton.
- The 2.5" NVMe U.2 SSD can be the primary bootable device containing the OS and applicatons (requires support in the system BIOS)
-No driver installaton required, Support Windows 10/8, Server 2012 R2, Linux, etc.
-Fully Rohs, FCC and CE Compliant.

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

High Performance Design

This Quad U.2 SSD PCIe Card is a full-height, full-length PCIe 4.0 card with an x16 electrical interface, designed to support full performance from four U.2 NVMe SSDs.

Economically Add Fast, Large Capacity SSDs

This PCIe x16 Quad U.2 NVMe SSD Adapter enables you to upgrade your system in a flash, mounnng four enterprise class U.2 SSDs in a single full-length PCIe 4.0 x16 card slot, with no separate power or data cables, drive adapters, or mountng trays required.

High Capacites

U.2 SSDs are good for for storing large video projects. This PCIe Card will support larger capacity SSDs as they become available.

Easy installaton

The expansion card is equipped with a full-profile bracket and doesn’t require an adapter cable for installaton, this helps to reduce cluter and simplifies system builds. The drive connects directly to the SFF-8639 connector on the adapter, and the adapter connects directly to the computer motherboard. The adapter is compatble with PCIe 3.0 motherboards and is also backward compatble with PCIe 2.0 and PCIe 1.0.
