LRNV94N8

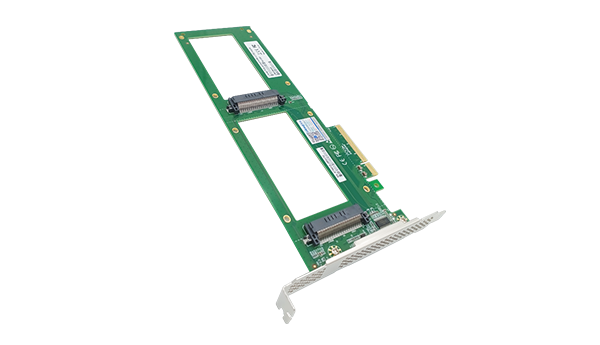

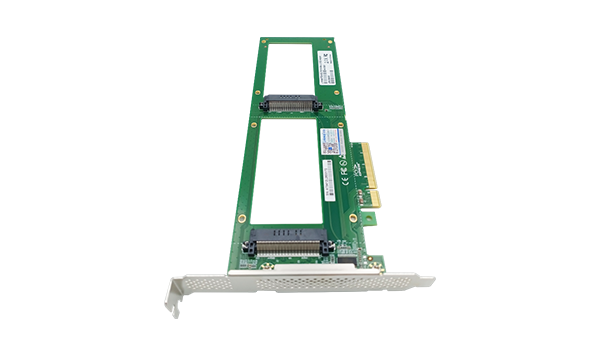

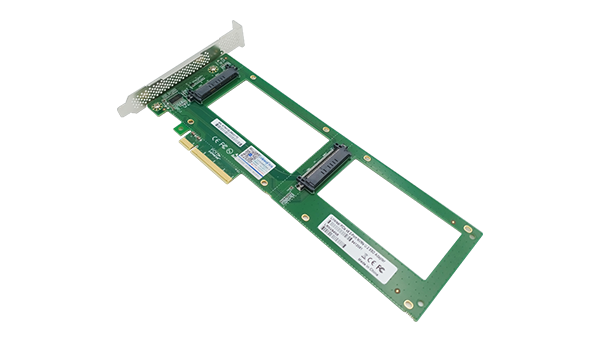

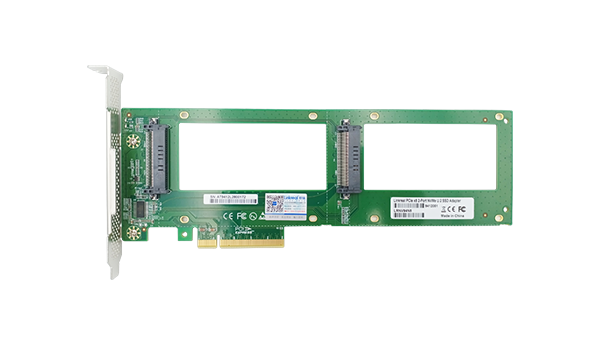

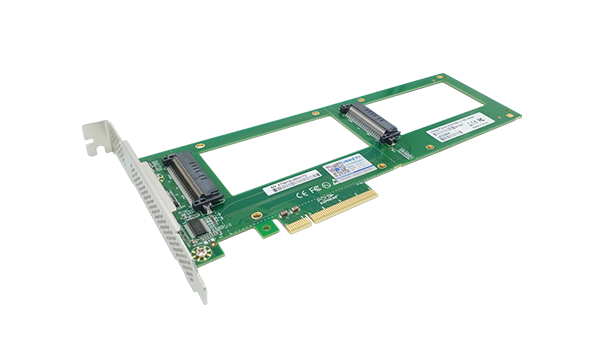

LRNV94N8 2X U.2 SFF-8639 SSD to PCI Express 3.0 Gen 3 X8 Card U.2 NVMe SSD Adapter
Key Features
Product Model: LRNV94N8
Product Name: 2*U.2 to PCIe x8 Adapter for 2*2.5" U.2 NVMe SSD
Interface:2*68-pin SFF-8639 interface connector
Support Equipment:2*PCIe U.2 NVMe SSD
Host Bus Type: PCIe 3.0 x8
PS: The motherboard without PCIe signal split can only recognize one disk.

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

Features:

1.Only supports motherboards with detachable PCI-E channels.Control the operation of two disks based on the motherboard PCIE channel,The motherboard without PCIE signal split can only recognize one disk.
2.U.2 SFF-8639 two-disks design, Stable installation, Can run two U.2 disks at full speed at the same time.
3.The innovative design can accommodate two U.2 of the chassis, and can support simultaneous operation.
4.The 2.5" NVMe U.2 SSD can be the primary bootable device containing the OS and applications (requires support in the system BIOS)
5. No driver installation required, Support Windows 10/8, Server 2012 R2, Linux, etc.

6.Fully Rohs, FCC and CE Compliant.

LR-LINK LRNV45N1 M.2 to U.2 NVMe SSD Adapter Card: LRNV45N1


HARDWARE

Model

LRNV94N8

Interface

PCI Express x8

Compatible Drive

2*U.2 (PCIe NVMe SSD, SFF-8639)

CONNECTOR(S)

Drive Connector

2*68-pin SFF-8639 interface connector

ENVIRONMENTAL

Humidity

15% ~ 90%

Operating Temperature

5°C to 50°C (41°F to 122°F)

Storage Temperature

-25°C to 70°C (-13°F to 158°F)

PHYSICAL CHARACTERISTICS

Product Dimension

236mm X83.23mm

Product Weight

65g

Shipping Weight

3.88oz [110 g]

WARRANTY INFORMATION

Warranty

2 Years

WHAT'S IN THE BOX

Included in Package

1 - PCIe to 2*U.2 Adapter For 2.5" NVMe SSD

1 - Full-Height Bracket(Installed)

8– Screw & Nut for SSD
