LRNV93N8

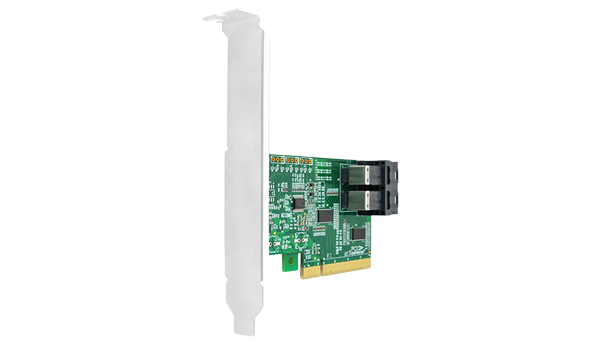

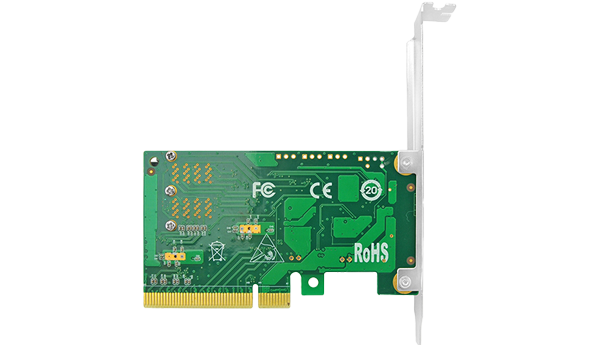

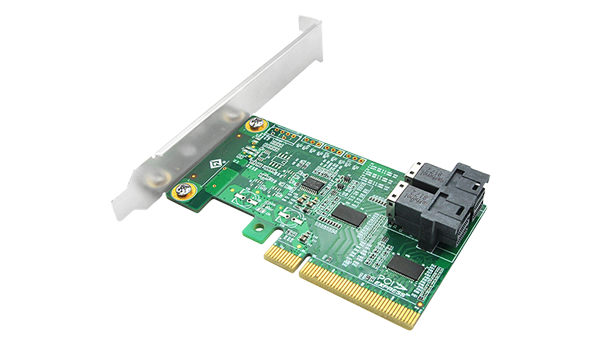

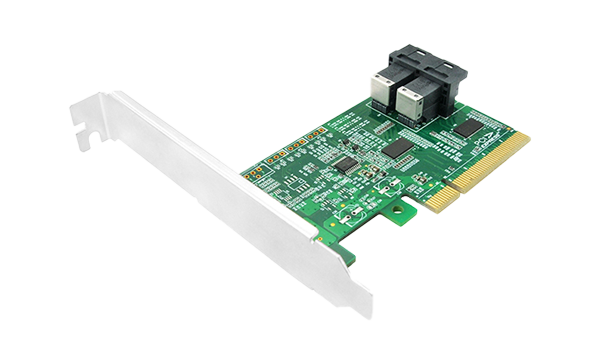

LRNV93N8 PCIe x8 to 2-Port U.2 NVMe Adapter
Key Features
Product Model:LRNV93N8
Product Name:2 Port PCIe 3.0 x8 to U.2 NVMe Adapter
Interface Type:2*SFF-8643 Connectors
Support Equipment:2*U.2 NVMe SSD
Host Bus Type:PCIe 3.0 x8
Ps. Motherboards BIOS needs to have PCIe Bifurcation Mode Support

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LRNV93N8 U.2 Ports Bifurcation Controller Card is a great storage solution for any workstation with true PCIe 3.0 x8 bandwidth. It has two SFF-8643 connectors to accept two U.2 SSD Drives, So each U.2 SSD Drives has dedicated PCIe 3.0 x4 bus bandwidth. It allows user to add 2 U.2 NVMe into any PCIe 3.0 x8 slot to achieve their full potential bandwidth.

LR-LINK Expansion Solution PCIe x16 4-port NVMe Switch Adapter: LRNV9F48


Features:

Comes with a full-profile bracket (preinstalled), and also includes a low-profile bracket for a small form-factor computer.

Computer with PCI Express Slot (x8) support PCIe Bifurcation mode.

Please kindly verify with your mainboard manufacture (such as Intel, Supermicro, Tyan, ASRock, Gigabyte...) to make sure the motherboard BIOS support Bifurcation for the PCI Express you are using.


Advantages

Upgrade your data center or enterprise-level applications with U.2 NVMe SSD capability

Utilize the advanced performance of a PCIe NVMe 2.5 in. SSD for intensive data workloads - ideal for numerous professionals from architects to medical professionals

Work with large files more efficiently for audio/video production and editing

8 Port U.2 to PCIe x16 SFF-8639 NVMe SSD Adapter: LRNV93N8



HARDWARE

Model

LRNV93N8

Number of Device

2 Internal

Bus Type

PCI Express

Compatible Device Types

U.2 (PCIe NVMe SSD, SFF-8639)

Interface

SFF-8643

CONNECTOS(S)

Device Connector

2*SFF-8643( 36 Pin,x4 PCIe Gen3)

Host Connector

PCI Express x8

ENVIRONMENTAL

Humidity

15% ~ 90%

Operating Temperature

5°C to 50°C (41°F to 122°F)

Storage Temperature

-25°C to 70°C (-13°F to 158°F)

PHYSICAL CHARACTERISTICS

Product Dimension

107mm x 44mm

Product Weight

28g

WARRANTY INFORMATION

Warranty

2 Years

PACKAGING INFORMATION

Shipping Weight

4.2 oz [120 g]

WHAT'S IN THE BOX

Included in Package

1 - U.2 Ports to PCI Express x8 Bifurcation Adapter

1 - low-profile bracket

1 - full-profile bracket (installed)

* Product appearance and specifications are subject to change without notice.

Remark: Please kindly Note this card requires PCIe Bifurcation on the motherboard to support Two U.2 NVMe hard drives, and BIOS supports PCIe Slot bifurcation.
