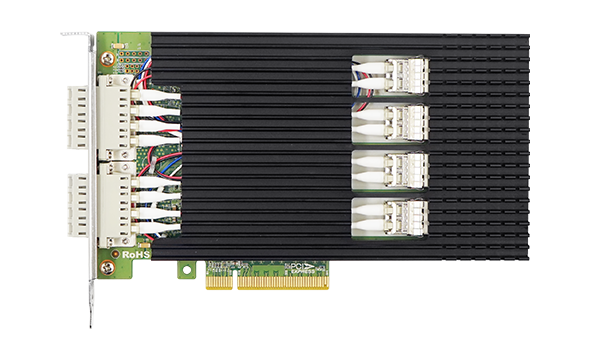

LRES8003PF-BP-SR

PCIe x8 Multimode Quad-port 10G SR Dual-way Bypass Ethemet Network Adapter ( Intel XL710)
Key Features
1. An PCIe x8 Quad Port 10G Dual Bypass Ethernet Network Adapter Based on Intel XL710.
2. With a rate of 10Gbps.
3. It can share tasks for the server host through hardware acceleration.

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LRES8003PF-BP-SR is a PCIe v3.0 x8 quad-port 10G dual-way Bypass ethernet network adapter developed by Shenzhen Lianrui Electronics Co., Ltd. based on the Intel XL710. LRES8003PF-BP -SR has four fully integrated 10 Gigabit ethernet media access controller ports. In addition to the function of managing the ethernet MAC and PHY layers, it can also perform traffic management on the passing data packets. The controller can share tasks for the server host through hardware acceleration, such as TCP/UDP/IP verification, offloading, computing tasks, and TCP segmentation.



LRES8003PF-BP-SR adopts Intel's main controller with wide compatibility and performance guarantee, which can realize high-efficiency work and bypass work of conventional quad-port 10G ethernet.



It can be widely used on high-throughput gateways, firewalls and other network devices. In actual operation, it can be used in combination with program queues to reduce application delay and improve throughput.


Specifications



Controller

Intel XL710

Cable medium

Optical Fiber

Fiber Type

10GBase-SR\10GBase-LR\10GBase-Cu

Bracket Height

Full height

Power Consumption

8.0W

System Support

RHEL/CentOS 7.x or later

Ubuntu 16.x or later

Bus Type

PCIe 3.0 (8GT/s) x8,x16

Data rate per port

10Gbps

Connector

4*10G SFP+



Technical Features



Protocol Support

IEEE 802.3ae 10 Gigabit Ethernet over fiber

IEEE 802.3x Full Duplex and flow control

IEEE 802.1AS / IEEE 802.1Q VLAN

IEEE 802.3AD / IEEE 802.3ad

IEEE 802.3az - Energy Efficient Ethernet (EEE)

IEEE 802.1P / IEEE 802.3ac

PXE

No

DPDK

Yes

WoL

No

iSCSI

Yes (can be set)

Jumbo Frames

Yes

FCoE

Yes (can be set)

PCI-SIG*SR-IOV

Yes

VMDq

Yes

RSS

Yes

PCI-SIG*SR-IOV

Yes



Environment Features



Operating Temperature

0  to 55  (32  to131 )

Storage Temperature

-40  to 70  (-40  to 158 )

Storage Humidity

Maximum: 90% non-condensing relative humidity at 35

Certification

FCC, CE, RoHS



Physical Features



PCB Size(unit:mm)

107*178*1.6

Package sizeunit:mm

250.170.32

Weight(g)

*



LED Indicators



10Gbps

Orange Blink + Green Link

BYPASS

Green Link


Model

Description

LRES8003PF-BP-SR

PCIe x8 Quad-port 10G Dual-way Bypass Ethernet network adapter ( Intel XL710)
