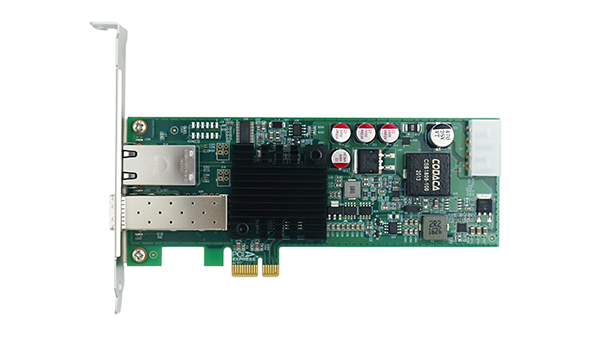

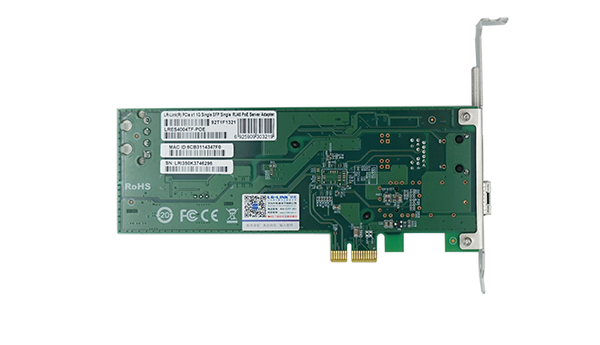

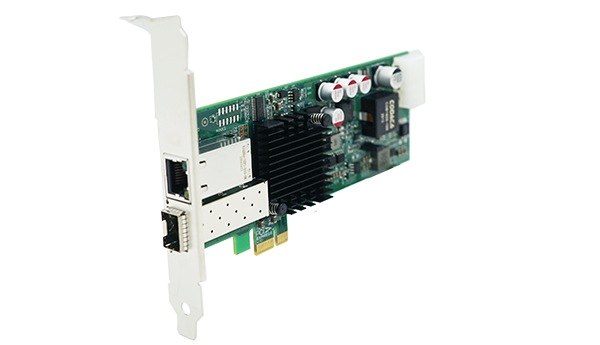

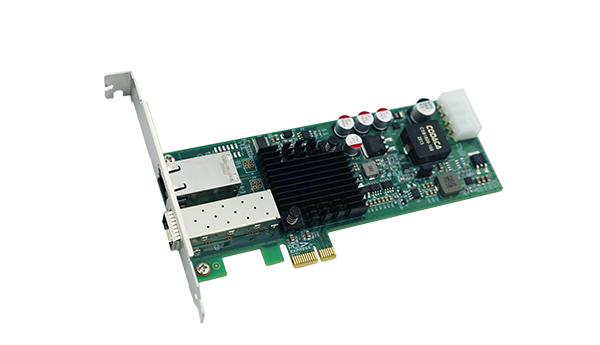

Dual-port Gigabit hybrid NIC with PoE+ and SFP fiber support for industrial visual inspection.
Industrial visual inspection systems often struggle with separate cabling for data and power, leading to complex deployments and higher failure rates in harsh environments. The LRES4004PT-POE solves this by integrating Gigabit Ethernet data transmission with 30W PoE+ power delivery in a single compact adapter.
Powered by the Intel I350 controller, this PCIe x1 card delivers 10/100/1000Mbps speeds over both RJ45 and SFP interfaces. With hardware acceleration for TCP/IP verification and load sharing, it significantly reduces CPU overhead, enabling stable high-performance data acquisition for vision systems without occupying excessive bus bandwidth.
Ideal for industrial field visual inspection servers, mobile Ethernet data transmission, and standard servers, the LRES4004PT-POE offers flexible connectivity. Its independent PoE and fiber channels allow seamless integration of VOIP phones or cameras while maintaining high-speed optical uplinks, ensuring reliable operation in critical network applications.
Combines 1G RJ45 PoE+ port and 1G SFP fiber port for flexible industrial deployment.
Based on Intel I350 dual-port Ethernet MAC + PHY controller for reliable performance.
Integrated TCP/UDP/IP verification and load sharing to reduce CPU resource occupation.
Optimized for visual inspection servers and fast mobile Ethernet data transmission equipment.
Supports Windows, Linux, FreeBSD, and VMware ESXi for diverse server environments.
Complete technical details for integration and deployment planning.
| Controller Chip | Intel I350 |
|---|
| Bus Type | PCIe v2.1 x1 |
|---|---|
| Compatibility | Compatible with x8, x16 |
| Connector | 1*8-Pin RJ45 + 1*SFP |
|---|---|
| Cable Medium (RJ45) | Cat 5E & Cat6 or higher |
| Max Distance (RJ45) | 100m |
| Power Consumption | 3.2W |
|---|---|
| PoE Power | 30W |
| PoE Standard | IEEE802.3af-2003, IEEE802.3at-2009 |
| IEEE Standards | IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3x, IEEE 1588, IEEE 802.3az |
|---|
| Supported Features | PXE, DPDK, Jumbo frame, PCI-SIG SR-IOV, VMDq |
|---|
| Unsupported Features | FCoE, WoL |
|---|
| Operating Temperature | 0 ℃ to 55 ℃ (32 ℉ to 131 ℉) |
|---|---|
| Storage Temperature | -40 ℃ to 85 ℃ (-40 ℉ to 185 ℉) |
| Storage Humidity | Maximum: 90% non-condensing relative humidity at 35 ℃ |
| PCB Size | 160.4*68.1*1.6 mm |
|---|---|
| Baffle Configuration | Half height & full height |
| Windows | 7/8/8.1/10/11, Server 2008 R2/2012 R2/2016 R2/2019 R2/2022 R2 |
|---|---|
| Linux | Stable Kernel 2.6.x/3.x/4.x or later, CentOS/RHEL 6.5/7.x or later, Ubuntu 14.x/15.x/16.x or later |
| Other OS | FreeBSD 9/10/11 or later, VMware ESX/ESXi 2.6.x/3.x/4.x/5.x or later |
