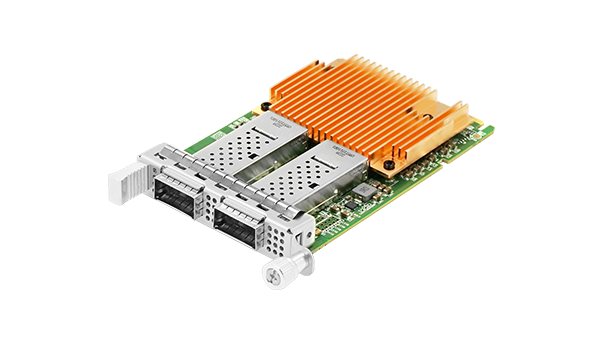

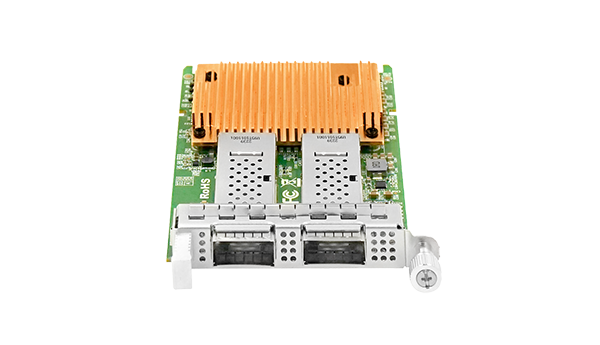

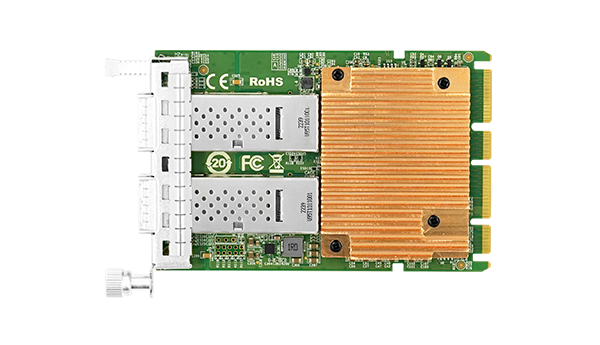

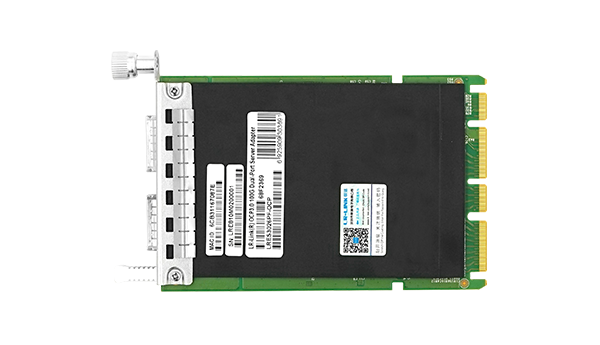

LRES3026PF-OCP

OCP3.0 Dual-port 100G QSFP28 Ethernet Network Adapter (Intel E810)
Key Features
1. An OCP3.0 SFF dual-port 100G Ethernet network adapter;
2. NVMe support for Fabric TCP via technology, as well as optional support for RDMA's iWARP and RoCEv2 features;
3, the application queue technology function to ensure that each application can request belongs to its own queue, with up to 100Gbps transmission speed;

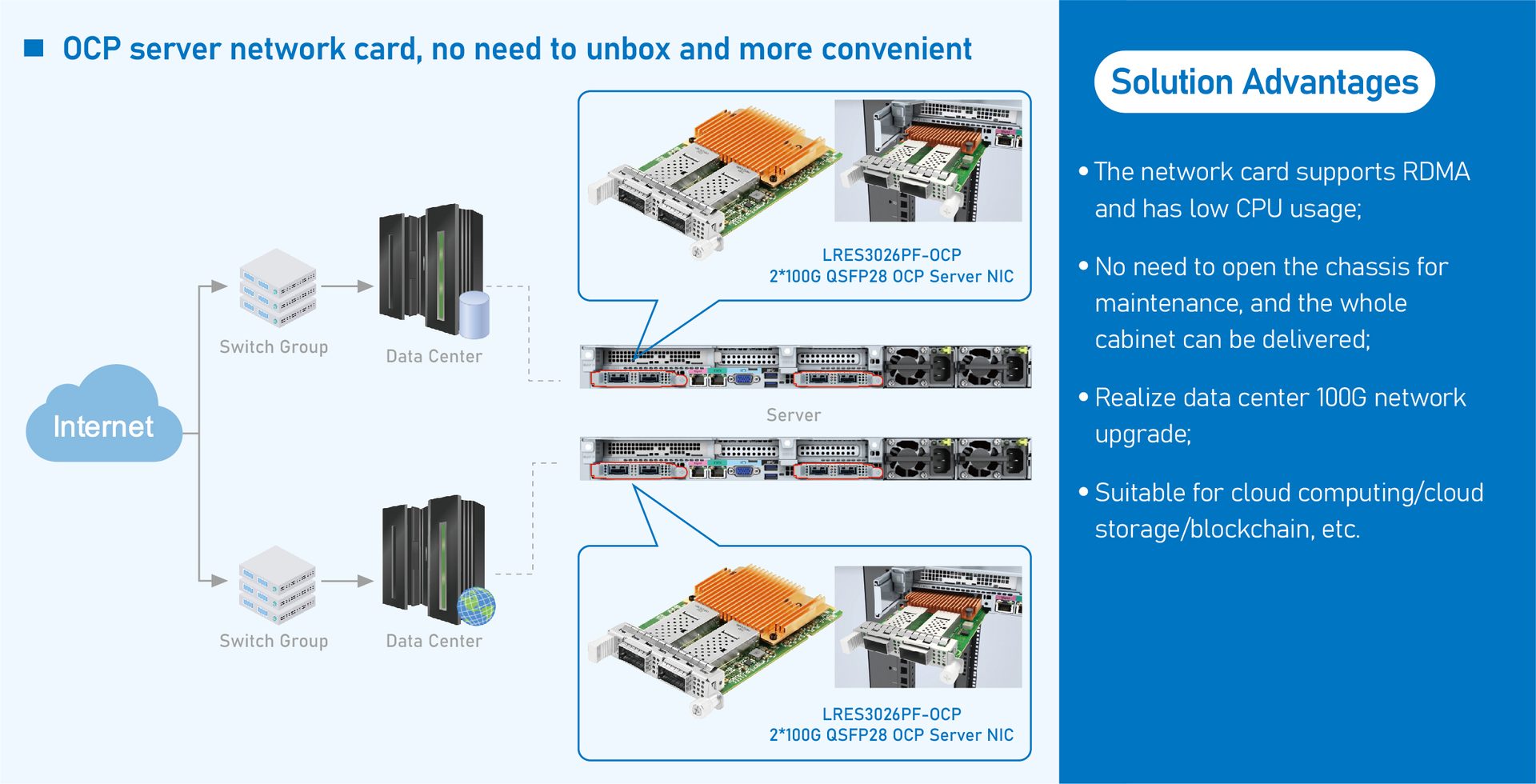

4, can be widely used in high-throughput data center service, cloud computing, storage and other network equipment can handle a variety of workloads, in the actual operation combined with the use of program queue can reduce application delay and improve throughput;
5. Using EPCT's multi-function port configuration technology, the adapter can be configured for multiple rates.

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LRES3026PF-OCP is an OCP3.0 SFF dual port 100G Ethernet network adapter developed by Shenzhen Lianrui Electronics Co., LTD based on Intel chip. This is complemented by hardware-accelerated packet processing extensions and the introduction of application queuing technology, which enables NVMe support for Fabric TCP, as well as optional support for RDMA's iWARP and RoCEv2 capabilities.

The Ethernet optical fiber network card (LRES3026PF-OCP) launched by Shenzhen Lianrui Electronics Co., LTD. The application queue technology function of the optical fiber network card ensures that each application can request its own queue, that is, the data between each other is no longer confused, with up to 100Gbps interface speed, It can be widely used in network devices such as data center service, cloud computing and storage with high throughput and can handle various workloads. In practical operation, it can reduce application delay and improve throughput by using program queue.

The fiber network card provides scalable ADQ technology to improve the performance scalability and predictability of critical workloads by dedicating specific resources to critical workloads. ADQ implements application-specific data control, information, and rate limiting using optimized application thread to device data paths.

LRES3026PF-OCP is controlled by Intel, and the multi-function port configuration technology of EPCT enables the adapter to be configured with various speeds, such as 2*100G, 1*100G, 2*50G, 4*25G, 2*2*25G, and 8*10G, to meet the requirements of various occasions.

Specifications


Controller

Intel E810

Baffle Height

SFF

Power Consumption

DAC, 19.2WFiber, 27.1W

System Support

Windows Server 2016 R2/2019 R2/2022 R2

Linux SLES 12.x or later

CentOS / RHEL 7.x or later

Ubuntu 16.x or later

FreeBSD 11.x/12.x or later

Linux Stable Kernel version 3.10.x/4.x or later

Bus Type

OCP3.0 SFF

Data rate

10/25/50/100GbE

Connector

2*25G SFP28


Technical Features


Protocol Support

IEEE 802.3bj 100GBASE Ethernet

IEEE 802.3x Full Duplex and flow control

IEEE 802.3az Energy Efficient Ethernet (EEE)

IEEE 802.3AS      IEEE 802.1Q VLAN

IEEE 802.1Qaz     IEEE 802.1Qbb

IEEE 802.1x        IEEE 802.1bd    IEEE1588 v1&v2

PXE/UEFI

Yes

DPDK

Yes

Jumbo Frames

Yes

iSCSI

No

Jumbo Frames

Yes

FCoE

No

RDMAiWARPRoCE v2

Yes

Network virtualization

SR-IOV, VxLAN, GENEVE, GRE


Order Information

P/N

Description

LRES3026PF-OCP

OCP3.0 Dual-port 100G QSFP28 Ethernet Network Adapter (Intel E810 Chip Based)
