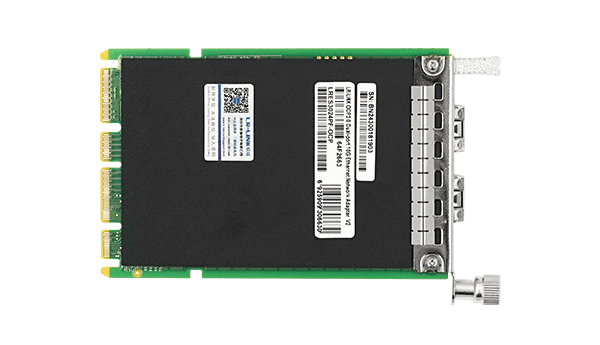

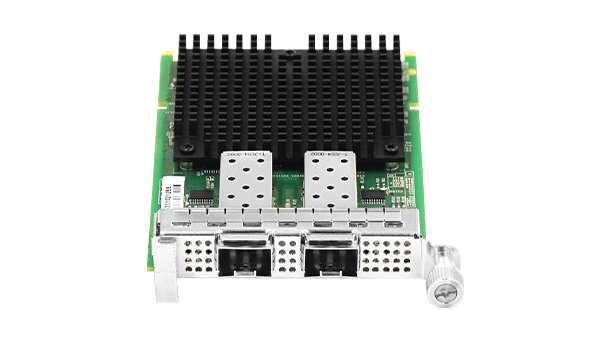

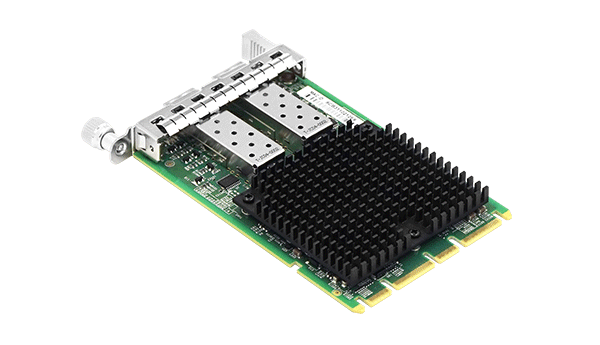

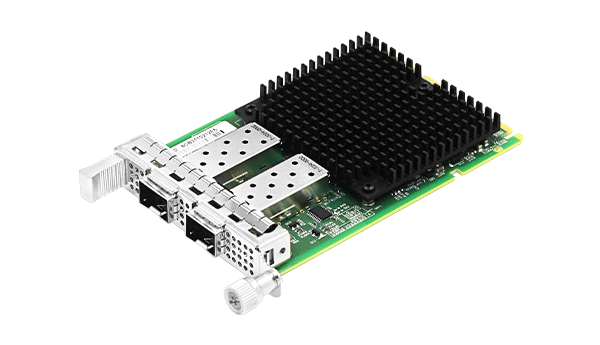

LRES3024PF-OCP

10G Dual-Port OCP3.0 Server Adapter (Net-swift SP1000A Based)
Key Features
-Supports PCIe 3.0 (8.0GT/s) x8;
-Equipped with 2 10G SFP+interfaces, supporting data transmission rates of 1Gbps and 10Gbps;
-Working temperature: 0 ℃~50 ℃ (commercial grade);

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LRES3024PF-OCP is a dual port 10G Ethernet adapter with OCP3.0 SFF structure developed by Linkreal Co., Ltd. based on the Net swift SP1000A main control scheme. This network adapter has dual ports that can simultaneously support adaptive 1/10G link rates. Flexible use in various network environments with different speed requirements, providing reliable performance in flexible LAN and SAN networks.

This adapter card has a domestically produced independent intellectual property Ethernet fiber optic network card (LRES3024PF-OCP), which has multiple functions such as LAN performance acceleration, network security, network fusion, network virtualization, and data center bridging. The transmission bandwidth of a single port is 10Gbps, the number of logic gates in the main controller reaches 18 million, and the on-chip SRAM capacity reaches 25Mbit. Mainly designed for servers and high-end devices.

OCP 3.0 Dual-Port 10G Copper Ethernet Network Adapter: LRES3021PT-OCP



Specifications

Model

LRES3024PF-OCP

Controller

Net-swiftSP1000A

Cable medium

Optical fiber

Fiber Type

10G Base-R1G Base-R

Bracket Height

SFF

Min Power(w)

3.72W

Max Power(w)

5.61W

Connector

2 * 10G SFP+

Bus Type

PCIe3.0 (8.0GT/s) x8

Data rate per port

1G/10Gbps

Power Supply

OCP

Protocol Support

IIEEE802.1p802.1Q, 802.1Qaz,802.1Qau,

IEEE802.2802.3ac802.3ad802.3az802.3x802.3z

PXE

Yes

WoL

No

UEFI

Yes

SR-IOV

Yes

1588 PTP

Yes

ScanChain

Yes

NCSI

Yes

FRU

Yes

SMBus

Yes

Jumbo Frames

9.2KB

System Support

Windows 7/8/8.1/10/11

Windows Server 2008/2012

Windows Server 2016/2019

Windows Server 2022

Deepin 20/20.6/20.9

VMware ESXi 6.5/ 6.7

Ubuntu 18.04.5/20.04.1

Ubuntu 22.04.2/22.04.3

ZTE New Fulcrum 3.2.2

Galaxy Unicorn v10

NeoKylin 7.6

OpenKylin 0.7.5

SUSE 12.5

Zhongke Fangde desktop operating system 4.0

Zhongke Fangde server operating system

Tongxin UOS 20

Emind OS

iKuai router









LED Indicators

10G

Connection Status

Green Link + Blue Link

Transfer status

Green Blink + Green Link + Blue Link

1G

Connection Status

Orange Link + Blue Link

Transfer status

Green Blink + Orange Link + Blue Link


Physical properties

PCB size(unit:mm)

115*76*1.6

Package size (unit: mm)

179*150*30



Packing List

Bracket

Default SFF baffle installation

Internet Network Adapter

*1

Product Warranty Card

*1

Packaging

Carton + Anti-static bag
