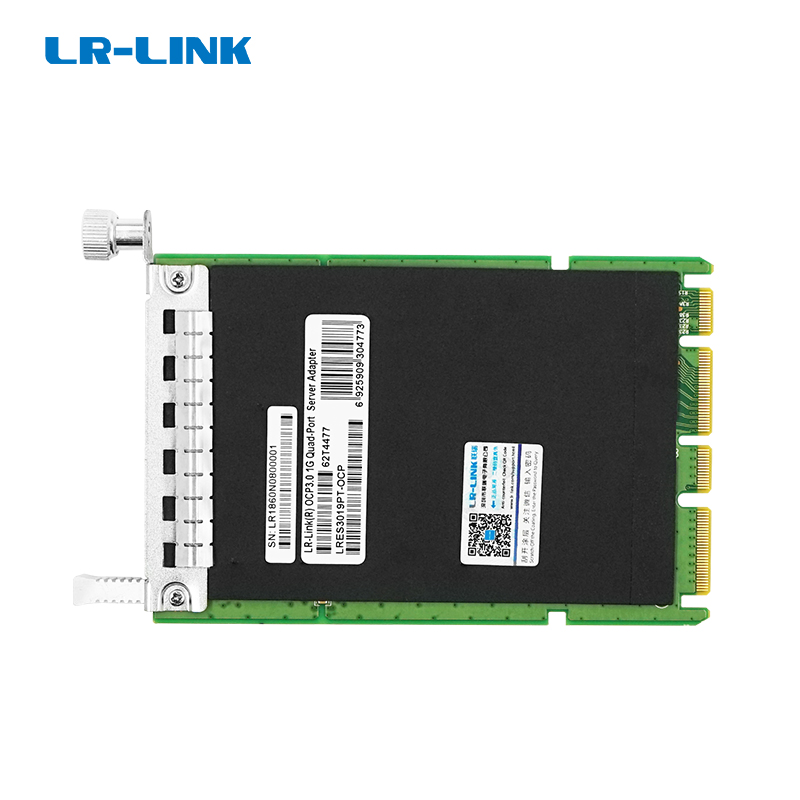

LRES3019PT-OCP is a OCP3.0 SFF Quad-port copper gigabit ethernet network adapter developed by Linkreal Co., Ltd. based on Net-swift. The adapter card achieves a four-port bidirectional communication transfer rate with a theoretical throughput of 8G on a PCI Express v2.1 x4 bus.
The ethernet network card (LRES3019PT-OCP) with Net-swift 's independent intellectual property rights launched by Shenzhen Lianrui Electronics Co., Ltd. has a fully integrated gigabit ethernet media access control (MAC) module. It is widely used in network communication, and can also be used on servers, embedded and so on.
The main controller used by Net-swift's independent intellectual property rights and independent controllability, which is of great significance for breaking the monopoly of certain enterprises and ensuring information security.
The controller used by LRES3019PT-OCP is autonomous and controllable. The indicators including data transmission, data network bandwidth, average transmission delay, and actual small packet transmission rate have reached the industry level.
OCP3.0 Quad-port Gigabit Ethernet Network Adapter: LRES3023PT-OCP
Specifications
|
Controller |
Net-swift WX1860 |
|
|
Cable medium |
Copper |
|
|
Fiber Type |
CAT-6 |
50M(1Gbps);100M(100Mbps); |
|
CAT-6e |
50M (1Gbps);100M(100Mbps); |
|
|
CAT-7 |
100M(1Gbps) |
|
|
Bracket Height |
SFF |
|
|
Power（min） |
1.512W |
|
|
Power（max） |
2.42W |
|
|
System Support |
Windows 7 /8 /8.1 /10 /11 |
|
|
Windows Server 2012 /2016 /2019 /2022 |
||
|
RHEL/CentOS 7.6 /7.9 /8.2 /8.3 |
||
|
Deepin 20/ 20.6 |
||
|
Ubuntu 16.04.3 /18.04.5 /20.04.1 |
||
|
ZTE New Fulcrum 3.2.2 /5.0.5 |
||
|
Asianux Server V7.0 |
||
|
Galaxy Unicorn V10 /V10 SP1 |
||
|
NeoKylin 7.6 |
||
|
Zhongke Fangde desktop operating system 4.0 |
||
|
Zhongke Fangde server operating system |
||
|
Tongxin UOS 20 |
||
|
Emind OS |
||
|
VMware ESXi 6.5 /6.7 |
||
|
Mikrotik |
||
|
iKuai router |
||
|
Bus Type |
OCP3.0 SFF |
|
|
Data rate per port |
100/1000Mbps、1Gbps |
|
|
Connector |
4*1G RJ45 |
|
|
Power Supply |
OCP3.0 |
|
Technical Features
|
Protocol Support |
IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3az Energy Efficient Ethernet (EEE) IEEE 802.1Q VLAN IEEE 802.1AS IEEE 802.1Qau IEEE 802.1p IEEE 802.1Qbg Virtual Bridging IEEE 802.1Qbb Priority Flow Control |
|
PXE |
Yes |
|
DPDK |
Yes |
|
WoL |
Yes |
|
iSCSI |
No |
|
Jumbo Frames |
Yes |
|
IEEE 1588 |
Yes |
|
FCoE |
No |
|
SR-IOV |
Yes |
|
UEFI |
No |
|
Jumbo data frame MAX |
9.5KB |
|
ESD_Contact discharge |
±8KV (Class B) |
|
ESD_Air discharge |
±15KV (Class C) |
ESD test classification
Class A: Normal performance within the limits specified by the manufacturer, commissioner, or purchaser.
Class B: Temporary loss or reduction of function or performance, but can be recovered by itself after the disturbance stops, without operator intervention;
Class C: Temporary loss or degradation of function or performance that requires operator intervention to restore;
Class D: irrecoverable loss of function or performance degradation due to damage to device hardware or software, or loss of data.
Environment Features
|
Operating Temperature |
0℃ to 70℃ (-32 ℉ to 158 ℉) |
|
Storage Temperature |
-40℃ to 70℃ (-40℉ to 158℉) |
|
Storage Humidity |
Maximum: 90% non-condensing relative humidity at 35 ℃ |
|
Certification |
FCC, CE, RoHS |
Physical Features
PCB Size(mm)
115*76*1.6
Package Size(mm)
179*150*30
Weight(g)
*
LED Indicators
10Mbps/
100Mbps
LINK
Green Link
ACT
Green Blink
1Gbps
LINK
Green Link + Orange Link
ACT
Green Blink + Orange Link
Order Information
P/N
Description
LRES3019PT-OCP
OCP3.0 Quad-port Gigabit Copper Ethernet Network Adapter (Net-swift WX1860)
PS: Above details are only for reference, if there is any change,no prior notice.
