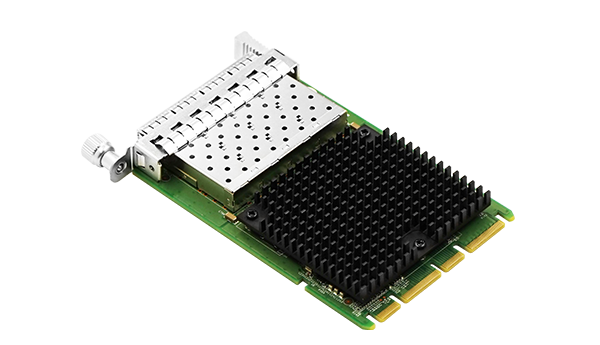

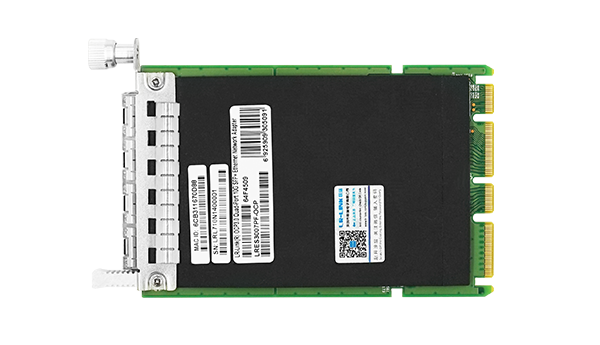

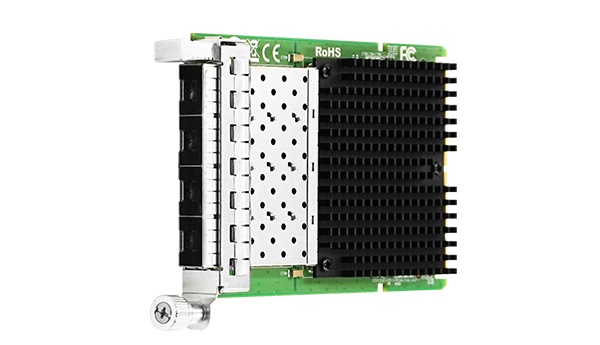

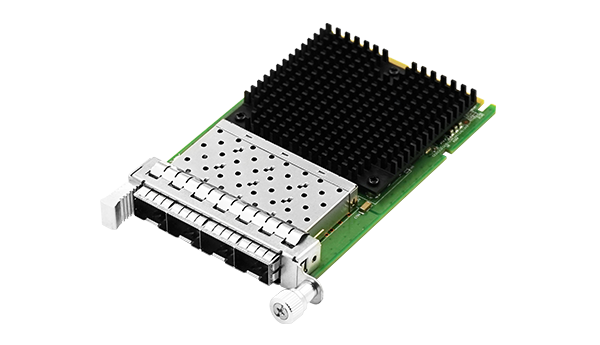

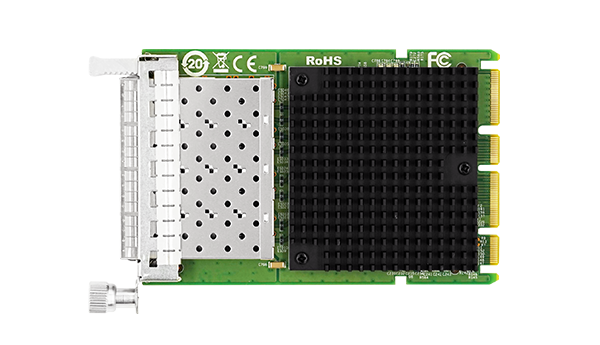

LRES3007PF-OCP

OCP 3.0 Quad-port Mezzanine 10G SFP+ Ethernet Network Adapter (Intel XL710)
Key Features
1. OCP 3.0 10G SFP+ Quad-port fiber ethernet network adapter.
2. The physical board size used complies with OCP 3.0 design specifications, small size (SFF).
3. This network adapter meets the needs of next-generation data centers by providing features for server and network virtualization technologies.
4. Applied to meet the needs of the server market for network traffic and data distribution, processing and virtualization, big data computing, cloud computing, etc.

Datasheet:

  • Overview
  • Specifications
  • Ordering
  • Driver
  • Relative Products

LRES3007PF-OCP is an OCP 3.0 10G quad-port optical fiber ethernet network adapter independently developed by Linkreal Co., Ltd. based on the Intel XL710 main control solution. (SFF) panel. The adapter addresses the needs of next-generation data centers by providing features for server and network virtualization technologies, delivering reliable performance in flexible LAN and SAN networks.


LRES3007PF-OCP can bundle multiple ports into groups to achieve fault tolerance and redundancy to ensure network performance and expand network bandwidth. It can implement real-time self-detection and route communication from faulty ports to other members of the same group to continue running. Enable uninterrupted, high-performance communications. In addition to stateless offloading, the adapter can also distribute network traffic to CPU cores, improving network throughput. At the same time, LSO and GSO are offloaded from the host software, thereby reducing CPU overhead for parity checks. Free up CPU resources to work on other applications. The LRES3007PF-OCP is an ideal solution for deploying multiple networks and deploying key network applications and environments on high-performance servers. The adapter card is based on Intel Intel XL710 Ethernet MAC+PHY (Media Access Controller and Physical Interface Transceiver) four-port controller.


The LRES3007PF-OCP is designed for excellent performance in multiprocessor systems. It is applied to meet the needs of the current and long-term server market for network traffic and data distribution, processing and virtualization, big data computing, and cloud computing.

OCP3.0 Quad-port 25G SFP28 Ethernet Network Adapter: LRES3027PF-OCP




Specifications


Controller

Intel XL710

Cable medium

Optical Fiber

Fiber Type

10GBase-SR10GBase-LR10GBase-ER

10GBase-ZR10GBase-LRM10GBase-Cu

Bracket Height

*

Power (min)

6.54W

Power (max)

6.816W

System Support

Windows 7 /8 /8.1 /10 /11

Windows Server 2008 /2012 /2016 /2019 /2022

Deepin 15.11 /20 /20.6 /20.9

VMware ESXi 6.5 /6.7 /7.0

Galaxy Unicorn V10 SP1 /V10

NeoKylin 7.6

RHEL/CentOS  7.3 /7.6 /7.9 /8.2 /8.3

Ubuntu 16.04.3 /18.04.5 /20.04.1 /22.04.2

SUSE 12.5 /15.4

FreeBSD 12.2 /13.2

ZTE New Fulcrum 5.0.5 /3.2.2

Tongxin UOS 20

Asianux ServerV7.0

Zhongke Fangde desktop operating system 4.0

Zhongke Fangde server operating system

Emind OS

Mikrotik

iKuai router

Bus Type

OCP3.0 SFF

Data rate per port

1/10Gbps

Connector

4*10G SFP+

Power Supply

OCP 3.0


Technical Features


Protocol Support



IEEE 802.3ae 10 Gigabit Ethernet over fiber

IEEE 802.3x Full Duplex and flow control

IEEE 802.1AS

IEEE 802.1Q VLAN

IEEE 802.3AD

IEEE 1588

IEEE 802.3az - Energy Efficient Ethernet (EEE)

PXE

Yes

DPDK

Yes

WoL

Yes

iSCSI

No

Jumbo Frames

Yes

FCoE

No

SR-IOV

Yes

IEEE 1588 PTP

Yes

IPsec

No

Jumbo data frame MAX

9.7KB

ESD_Contact discharge

±8KV (Class B)

ESD_Air discharge

±4KV (Class C)

ESD test classification

Class A: Normal performance within the limits specified by the manufacturer, commissioner, or purchaser.

Class B: Temporary loss or reduction of function or performance, but can be recovered by itself after the disturbance stops, without operator intervention;

Class C: Temporary loss or degradation of function or performance that requires operator intervention to restore;

Class D: irrecoverable loss of function or performance degradation due to damage to device hardware or software, or loss of data.


Environment Features


Operating Temperature

0 to 55 (32 to131 )

Storage Temperature

-40 to 70 (-40 to 158 )

Storage Humidity

Maximum: 90% non-condensing relative humidity at 35

Certification

FCC, CE, RoHS



Physical Features



PCB Size(mm)

115*76*1.6

Package Size(mm)

179*150*30

Weight(g)

*



LED Indicators



1Gbps

LINK

Green Link + Green Link

ACT

Green Blink + Green Blink

10Gbps

LINK

Green Link + Green Link

ACT

Green Link + Green Blink



Order Information



P/N

Description

LRES3007PF-OCP

OCP3.0 Quad-port 10G SFP+ Ethernet Network Adapter (Intel XL710)



PS: Above details are only for reference, if there is any change,no prior notice.
