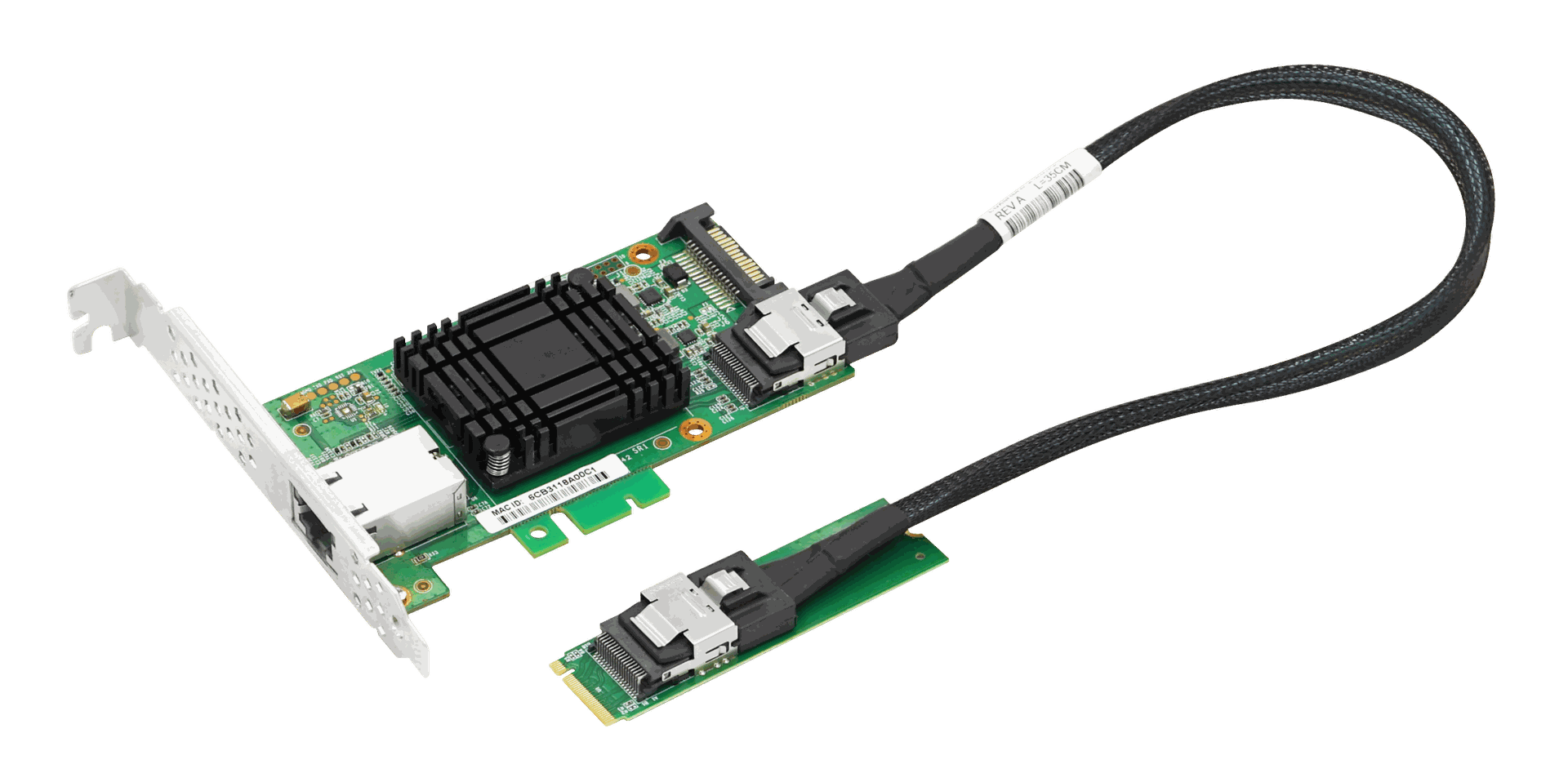

LRES2330PT-RJ45 is a 10G Single-port to SFF-8087/M.2 Ethernet Network Adapter developed by Linkreal Co., Ltd. based on Marvell AQC113 master solution. It provides a more flexible network expansion solution for industrial automation systems by directly converting to a single RJ45 port through the M.2 interface without taking up valuable PCIe slots. The adapter not only provides high-speed and stable data transmission capability, but also ensures the reliability and compatibility of the network connection, meeting the strict requirements of real-time, accuracy and efficiency in the industrial automation field. Whether it is data transmission in production lines, remote monitoring of equipment or centralised management of systems, the LRES2330PT-RJ45 is an indispensable network connectivity solution for industrial automation, as it can help companies optimise their production processes with its practical, efficient and reliable performance.
Model |
LRES2330PT-RJ45 |
|
Controller |
Marvell AQC113 |
|
Cable medium |
Copper |
|
Fiber Type |
10GBASE-T/5GBASE-T/2.5GBASE-T/1000BASE-T/100BASE-T/10BaseT |
|
Bracket Height |
Low Profile & Full Height |
|
Connectors |
One RJ45 |
|
Bus Type |
PCIe v3.0 (8GT/s) x4; m.2 interface |
|
Link Speed |
10G /5G /2.5G /1G /100M /10M |
|
Power Supply |
15Pin SATA power socket |
|
Protocol Support |
IEEE 802.3bz IEEE 1588 IEEE 802.3az - Energy Efficient Ethernet (EEE) |
|
System Support |
* Windows 10 /11 * Windows Server 2022 * RHEL/Centos7.6/7.9/8.2/8.3/9.0 * Deepin 15.11 /20 /20.6/20.9 * Ubuntu 16.04.3 /18.04.5 * Ubuntu 20.04.1 /22.04/24.04 * NewStart Server OS 6.0.6 * NewStart Desktop OS 4.5.2 * Galaxy Unicorn V10 * NeoKylin 7.6 |
* Fangde Desktop OS 5.0 * Fangde Server OS 4.0 * UOS 20 * Rocky 9.4 * OpenEuler 24.03 * Debian 12.5.0 * FusionOS 22.06/23.06 * Emind OS * OpenKylin 0.7.5 * OpenKylin 2.0 |
PXE |
Yes |
|
1588PTP |
Yes |
|
WoL |
NO |
|
UEFI |
Yes |
|
Jumbo Frames |
16KB |
